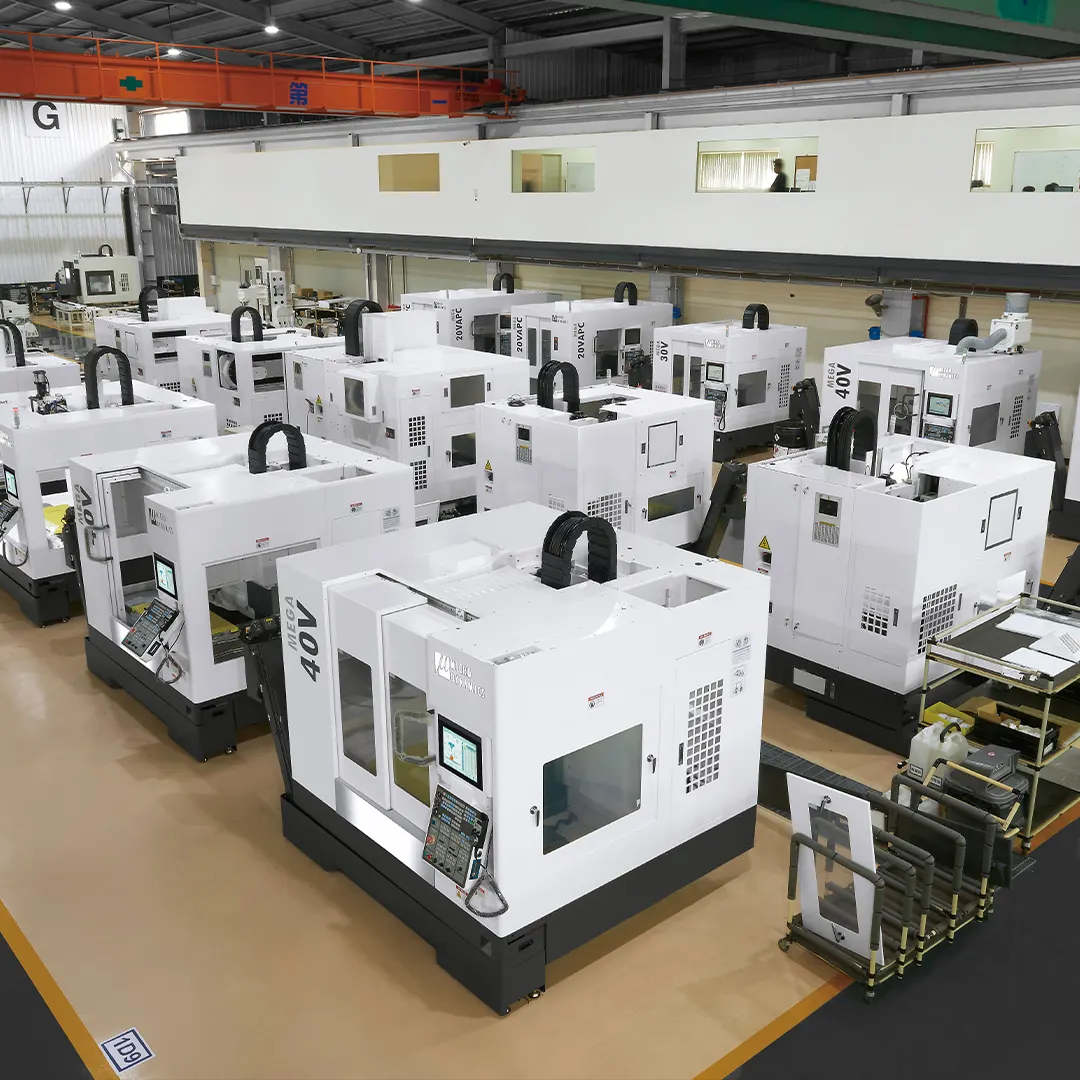

Production Floor
MEGA & TERA machines built for 24/7 duty
Precision Performance
Built for RealFastPowerfulAccurate Production
Micro Dynamics vertical machining centers combine FC300 rigidity, DYPEC thermal compensation, and 15,000 rpm built-in spindles, so your shop cuts faster, holds tighter tolerances, and runs 24/7 without surprises.
15K RPM Built-in
FC300
Casting
01 / 11
MEGA 30V
15,000RPMBuilt-in spindle
1.2secATC tool change
0µmDYPEC resolution
104 ft-lbMax torque
Core Engineering
Explore the Technology Inside Every Machine
Dive into the systems that separate brochure specs from shop-floor performance, structure, spindle, compensation, tooling, and control.

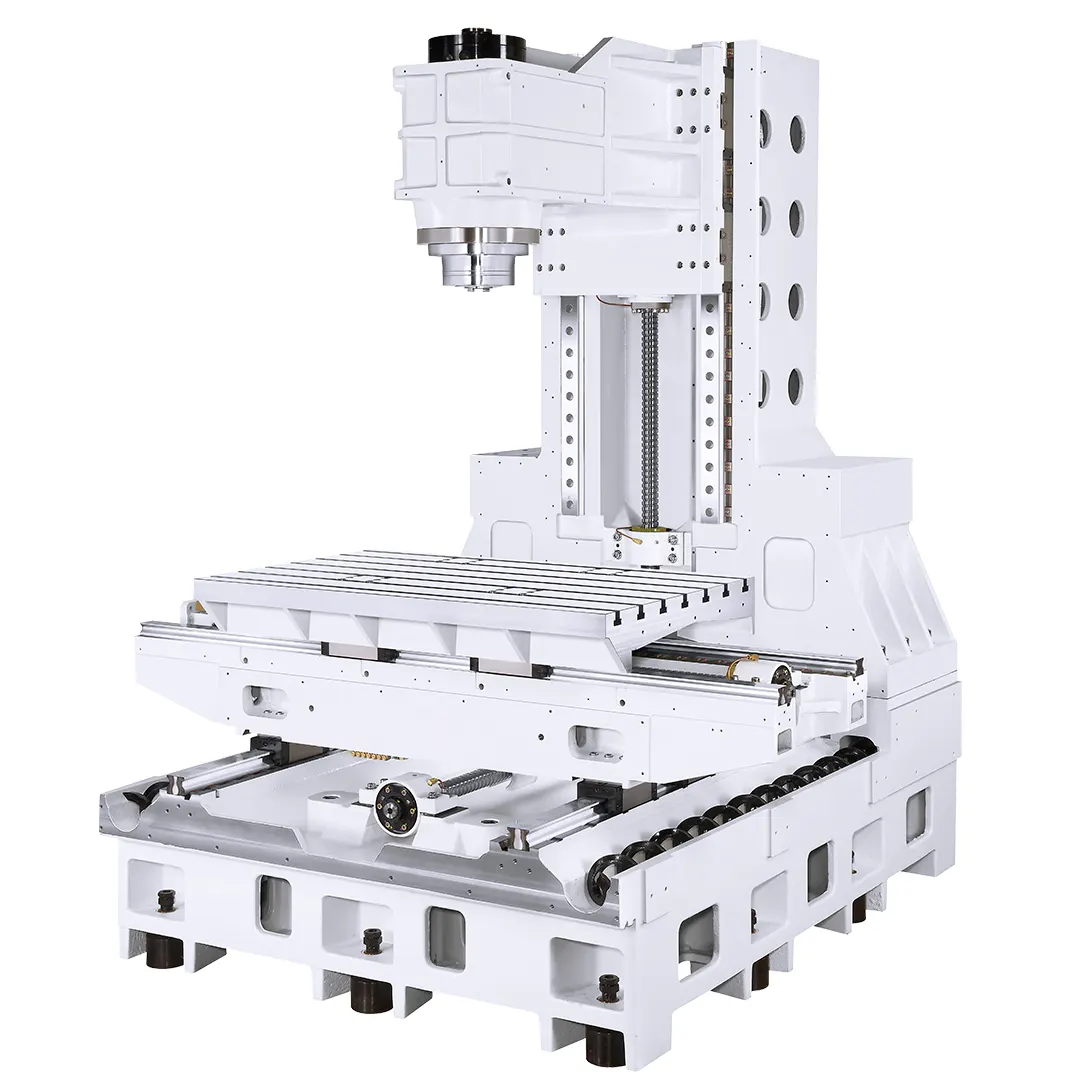

FC300 Meehanite Castings
Meehanite
FC300
FEA
Optimized
Hand-Scraped
Heavily ribbed, FEA-analyzed, hand-scraped symmetric structure with the widest base in class, built to absorb cutting forces without flex or chatter.
Honeycomb ribbing
Maximum rigidity per footprint for aggressive roughing.
Maximum rigidity per footprint for aggressive roughing.
Hand-scraped ways
Precision contact surfaces for long-term geometric stability.
Precision contact surfaces for long-term geometric stability.
Symmetrical thermal mass
Balanced expansion reduces distortion during heat-up.
Balanced expansion reduces distortion during heat-up.
Built-in Spindle Power
15,000
RPM Standard
20K/24K
RPM Opt
Dual
Contact
15,000 rpm standard with hybrid ceramic bearings and a drawbar tested beyond 2 million cycles. Optional 20K / 24K rpm and 50-taper 12K configurations for every material strategy.
41.6 HP / 104 ft-lb
(40-taper)
Heavy roughing and fine finishing from one spindle.
Heavy roughing and fine finishing from one spindle.
45.6 HP / 420 ft-lb
(50-taper)
Maximum metal removal on TERA 50V/50 and 60V/50.
Maximum metal removal on TERA 50V/50 and 60V/50.
Spindle oil cooler
24-hour tests show stable low temperature at high speed.
24-hour tests show stable low temperature at high speed.

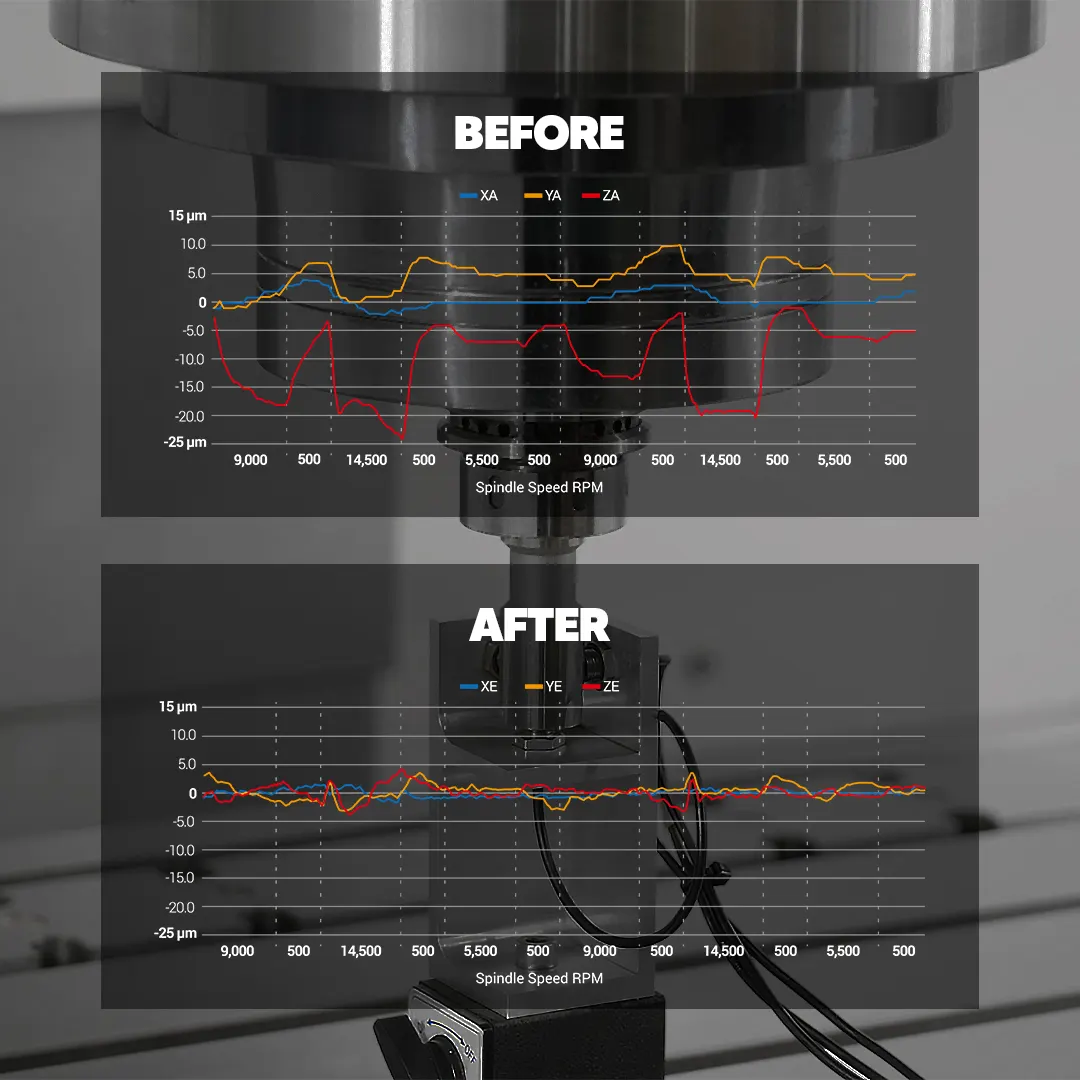

DYPEC Thermal Compensation
±0.1
µm Resolution
Standard
Included
No
Drift
Dynamic Predictive Error Compensation is standard, 0.1 µm resolution correcting thermal displacement so the 100th part matches the first without manual offsets.
Mirror finishes
Flatness within 2 µm directly off the machine.
Flatness within 2 µm directly off the machine.
Long-run stability

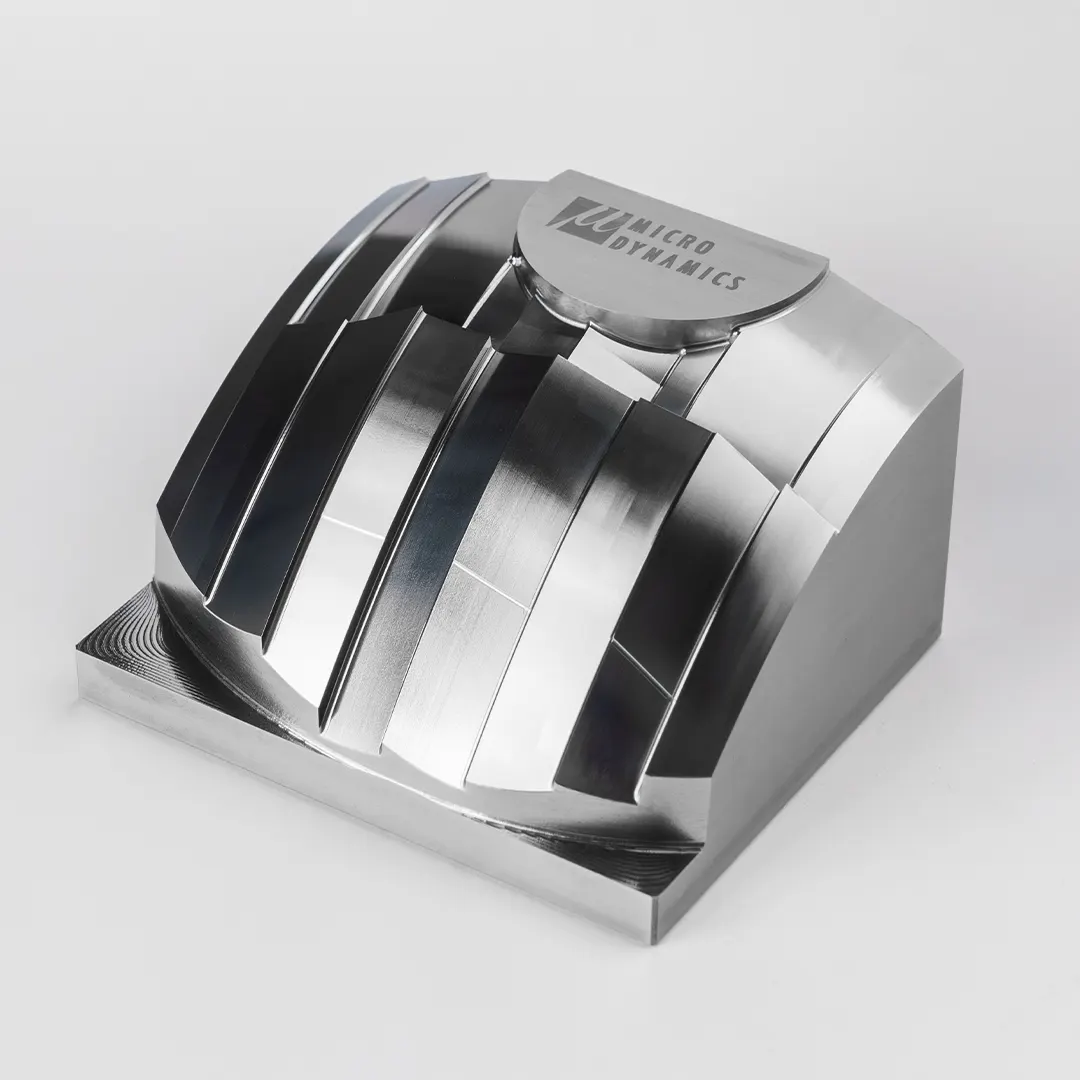

Ideal for mold & die and aerospace tolerance stacks.
Ideal for mold & die and aerospace tolerance stacks.
ATC & Chip Management
1.2-second tool-to-tool changes with ATC recovery, plus modular coolant, dual augers, and reversible conveyors that keep chips from stealing uptime.
ATC recovery function
Stress-free error recovery without operator panic.
Stress-free error recovery without operator panic.

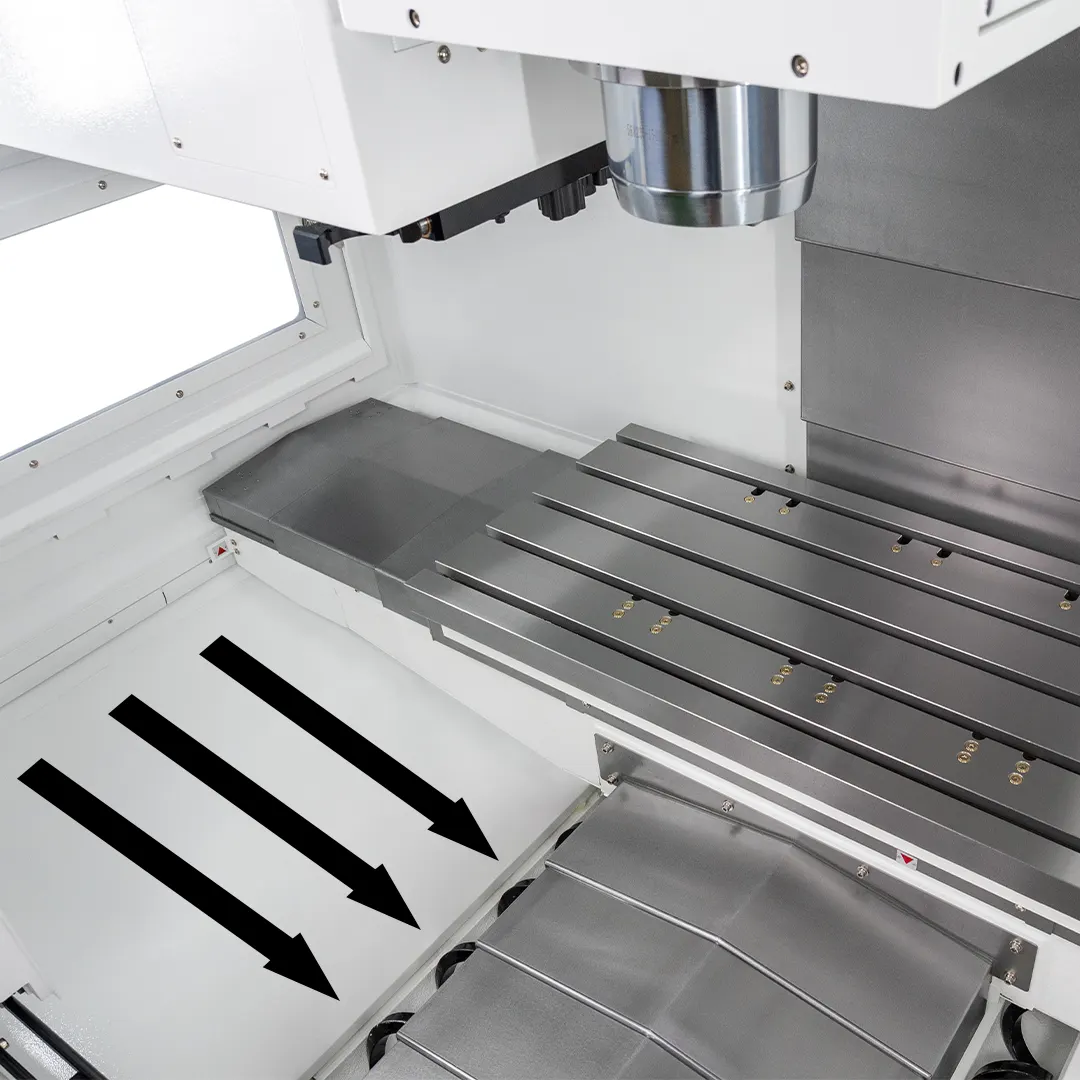

Modular chip system
Base wash, dual augers, front/rear reversible conveyor.
Base wash, dual augers, front/rear reversible conveyor.
MICRO DYNAMICS HMI
Windows-embedded interface with MICRO MILL conversational programming, auto tool/part setup, and Renishaw Set & Inspect, less setup time, more spindle time.
Conversational MICRO MILL
On-machine programming in minutes, not hours.
On-machine programming in minutes, not hours.

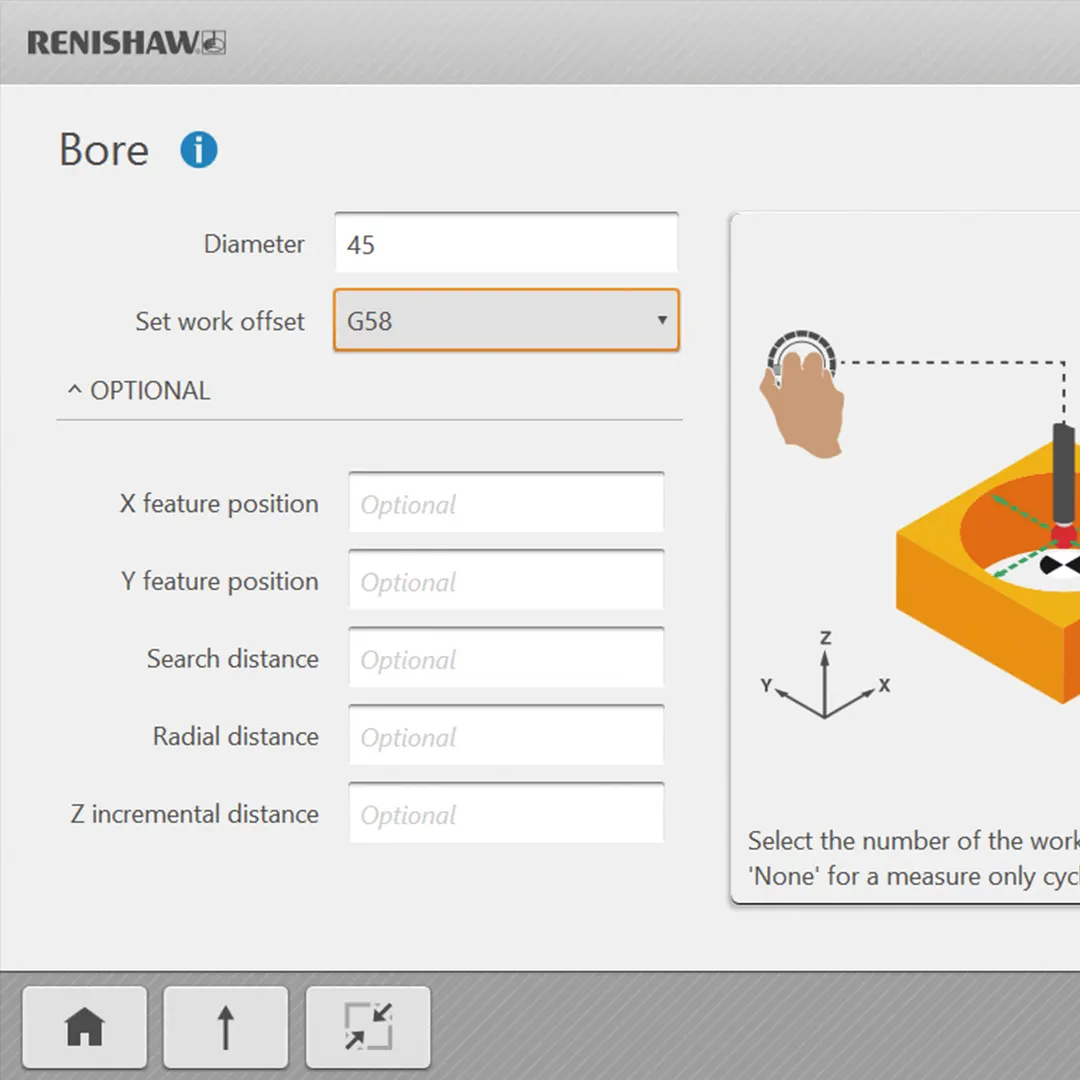

Renishaw integration
Auto probing and in-process inspection workflows.
Auto probing and in-process inspection workflows.
The Micro Dynamics Advantage
What Makes Micro Dynamics Different
Swipe or drag to explore our core advantages. Hover over any card to reveal technical details and specifications.
Master The MICRO DYNAMICS HMI
Learn MicroMill in 5 Minutes
Easy Tool Measurement
Tool Magazine Monitor
Designed For
Results
Engineered Features Translating Into Shop Uptime
We connect precise engineering metrics with the corresponding visual result on your shop floor's spreadsheet.
01.
Castings
FC300 castings
FEA Symmetrical
Allows aggressive roughing cuts with zero flex or chatter, preserving tools.
02.
Compensation
DYPEC Software
±0.1 µm Resolution
Achieves flatness within 2 µm and mirror finishes directly off the machine.
03.
Spindle
Dual Contact
45.6 HP / 420 ft-lb
Cuts steel and exotic aerospace alloys while doubling overall tool life.
04.
Tool Changer
1.2s Tool ATC
ATC Recovery HMI
Reduces chip-to-chip cycle times and simplifies interrupted change resets.
05.
Conversational
MicroMill Setup
Renishaw Probing
Cuts part setup time from hours to minutes with automated offset macros.
Ultimate
Control
Advanced CNC Controllers
We offer both industry-leading controls fully integrated with the Micro Dynamics HMI. View coordinates, program steps, check active diagnostics, and load files from one operator panel.
M830VW / M850VW
Premium option optimized for high-speed, high-accuracy simultaneous 5-axis mold and aerospace machining.
- 15" or 19" Full touch display console
- 5,400 Block Look-Ahead processing
- Super Smooth Surface (SSS) 4G control
- Upgradable to simultaneous 5 axes
0i-MF Plus
Industry standard control package offering legendary shop floor reliability and conversational programming.
- 15" High-contrast display panels
- SmartGuide-i conversational macros
- AI Contour Control (AICC II): 1,500 blocks
- Integrated jerk & tolerance fine tuning
Applications
Built for Demanding Applications

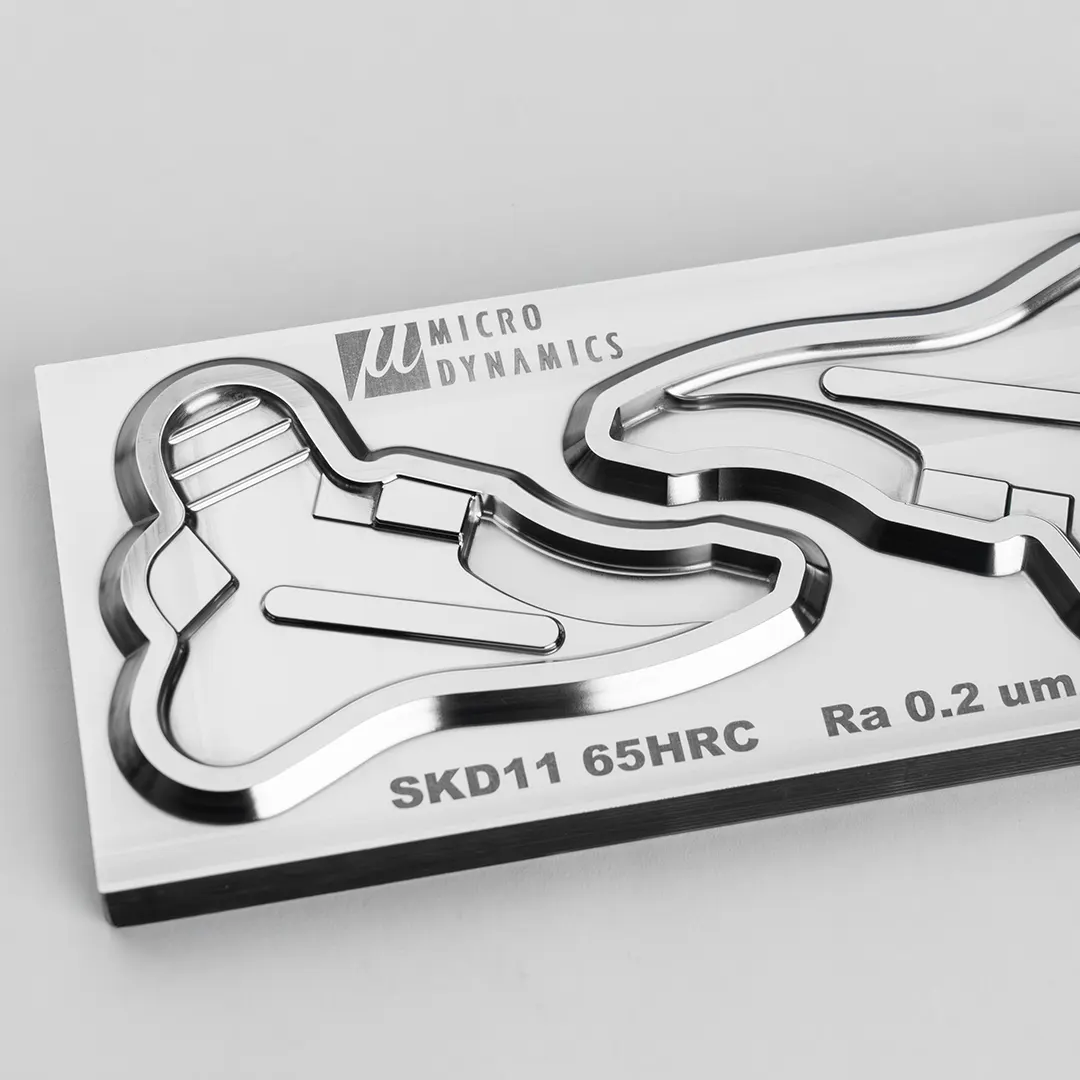

Steel & Alloy Steels
High torque spindles and rigid structure for aggressive material removal.

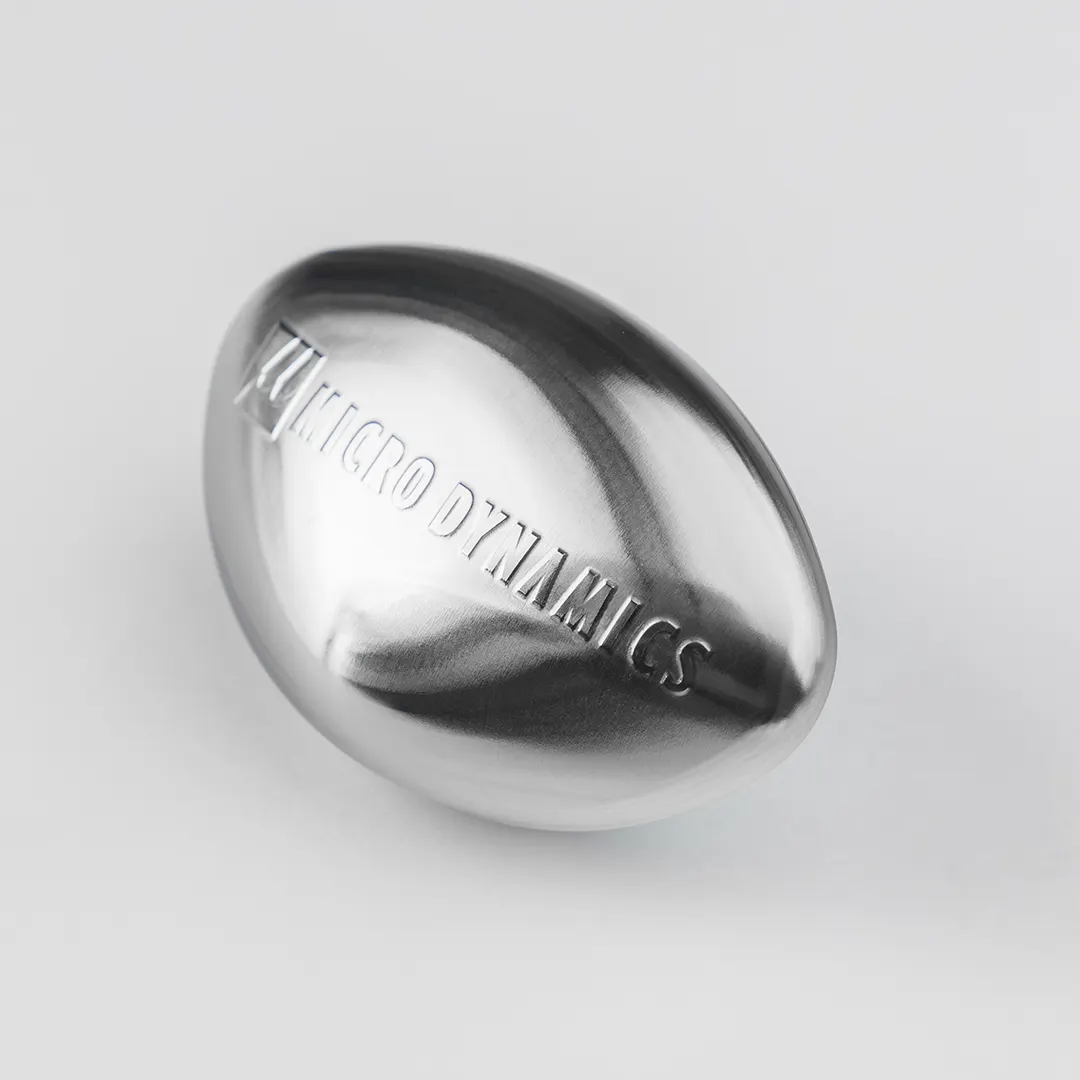

Aluminum
High-speed spindles up to 20,000 rpm for fast finishing and thin-wall work.

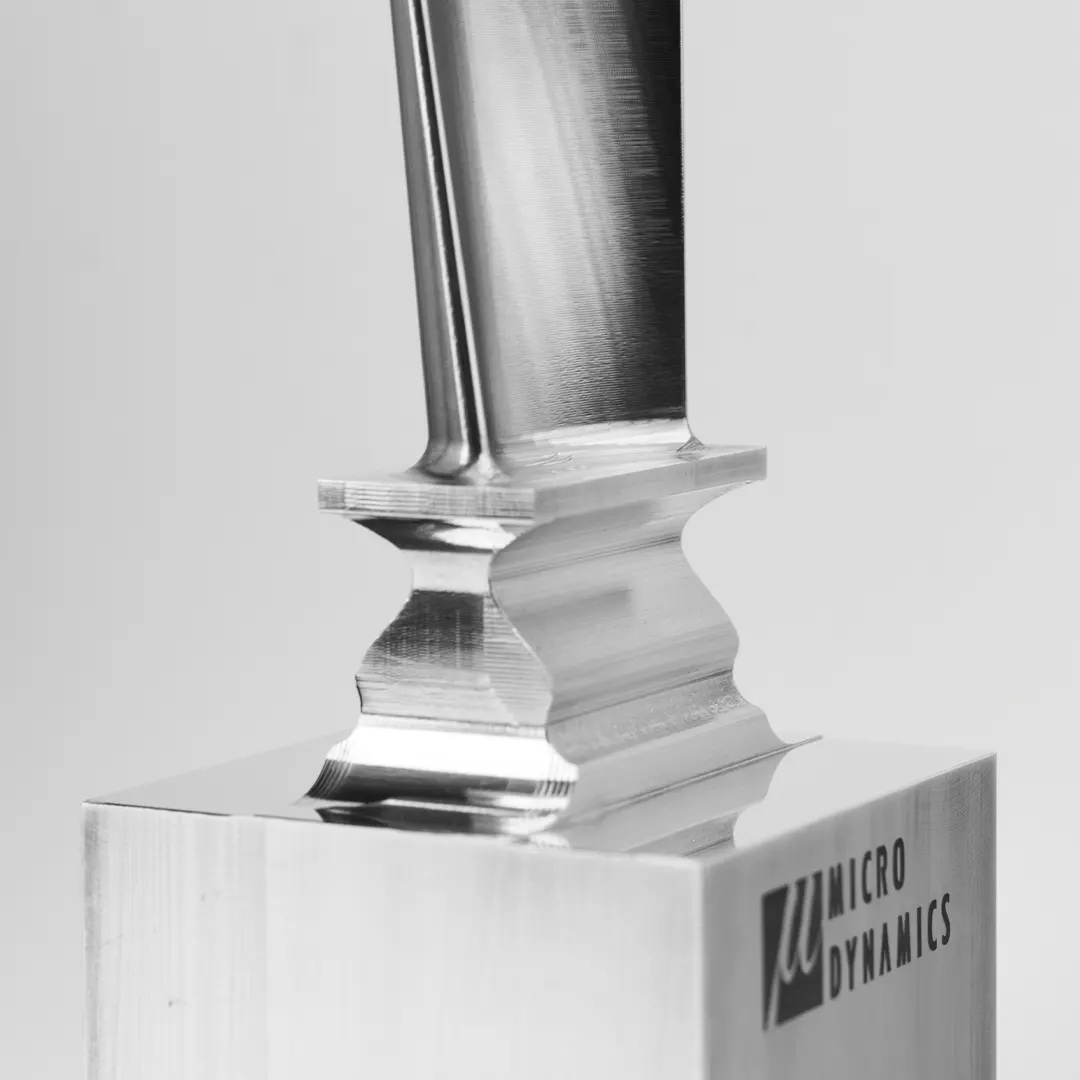

Titanium & Exotics
50-taper options with 420 ft-lb for the toughest aerospace alloys.

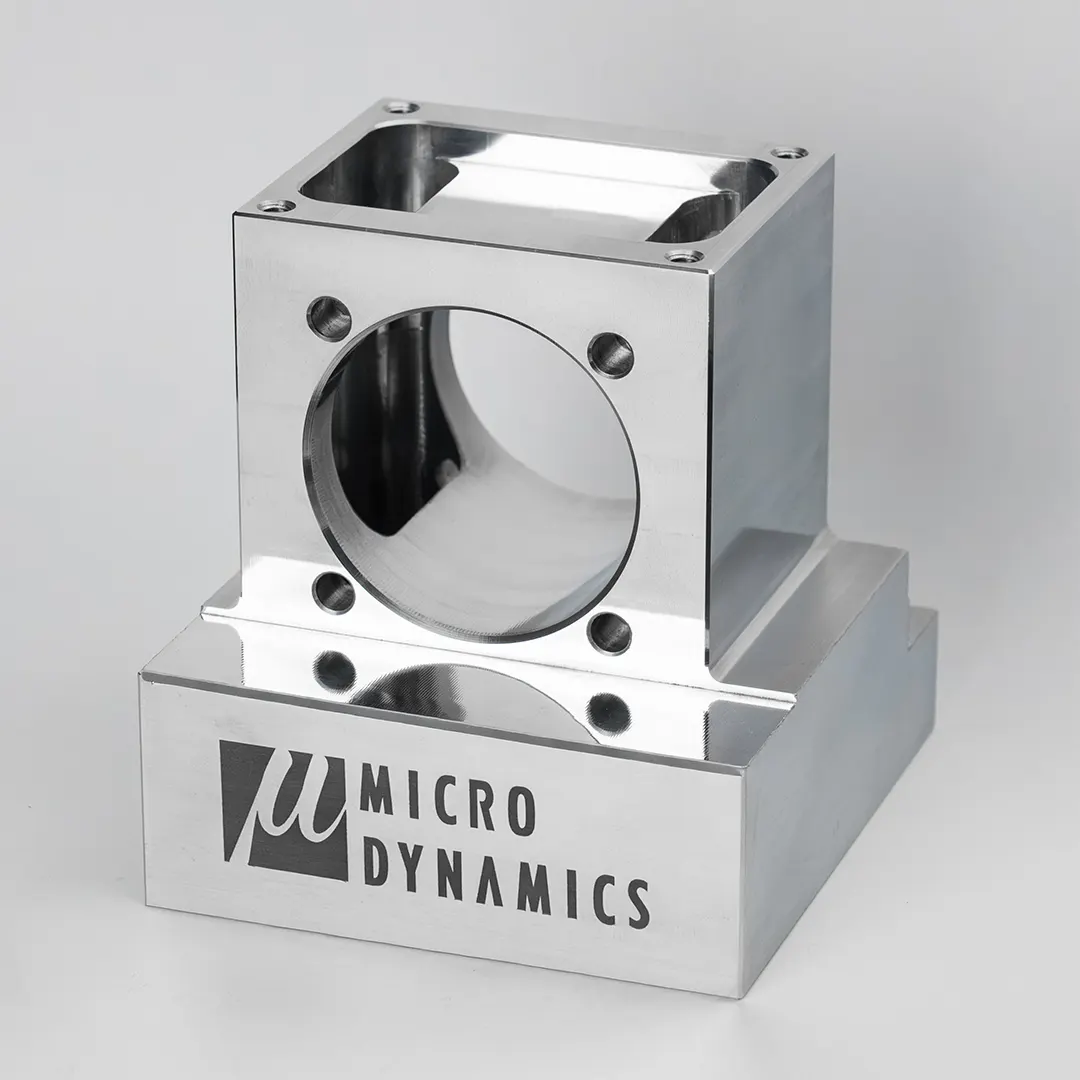

Stainless & Tool Steel
Stable thermal behavior maintains size through long stainless runs.

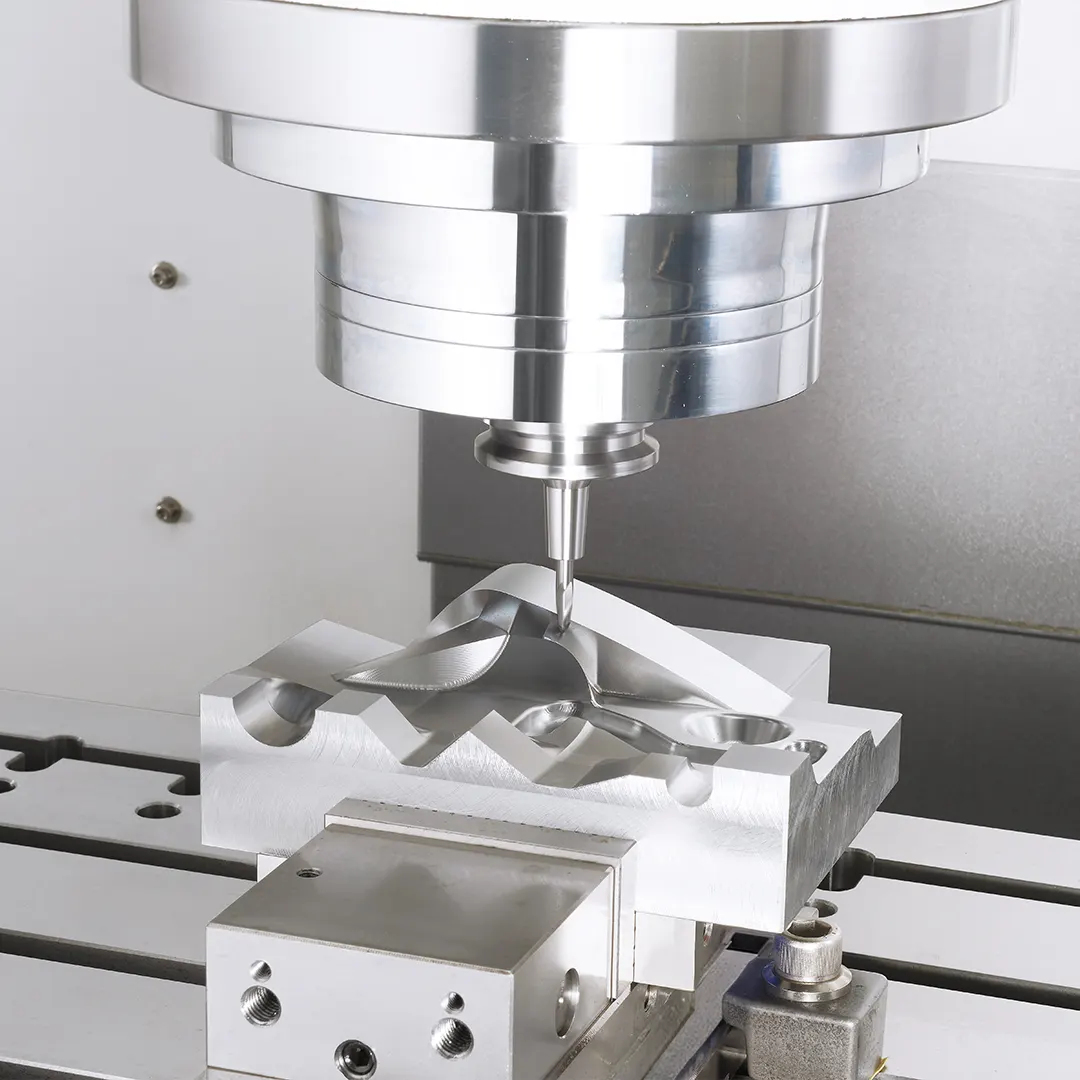

3-Axis Machining
Powerful face milling, precision drilling, and rapid pocketing with our 15,000 RPM spindles.

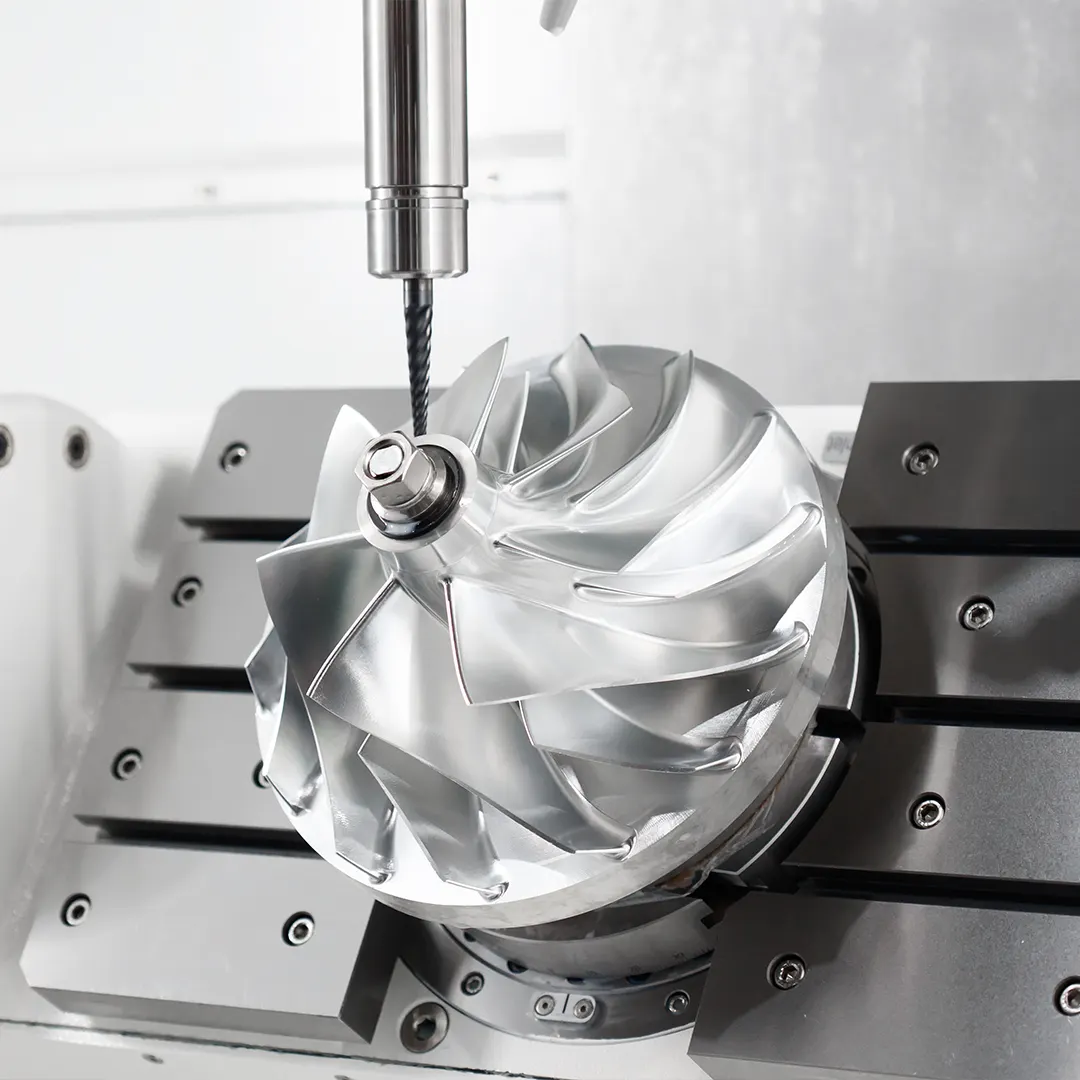

5-Axis Machining
Complete complex geometries in a single setup with roller gear cam trunnion tables.

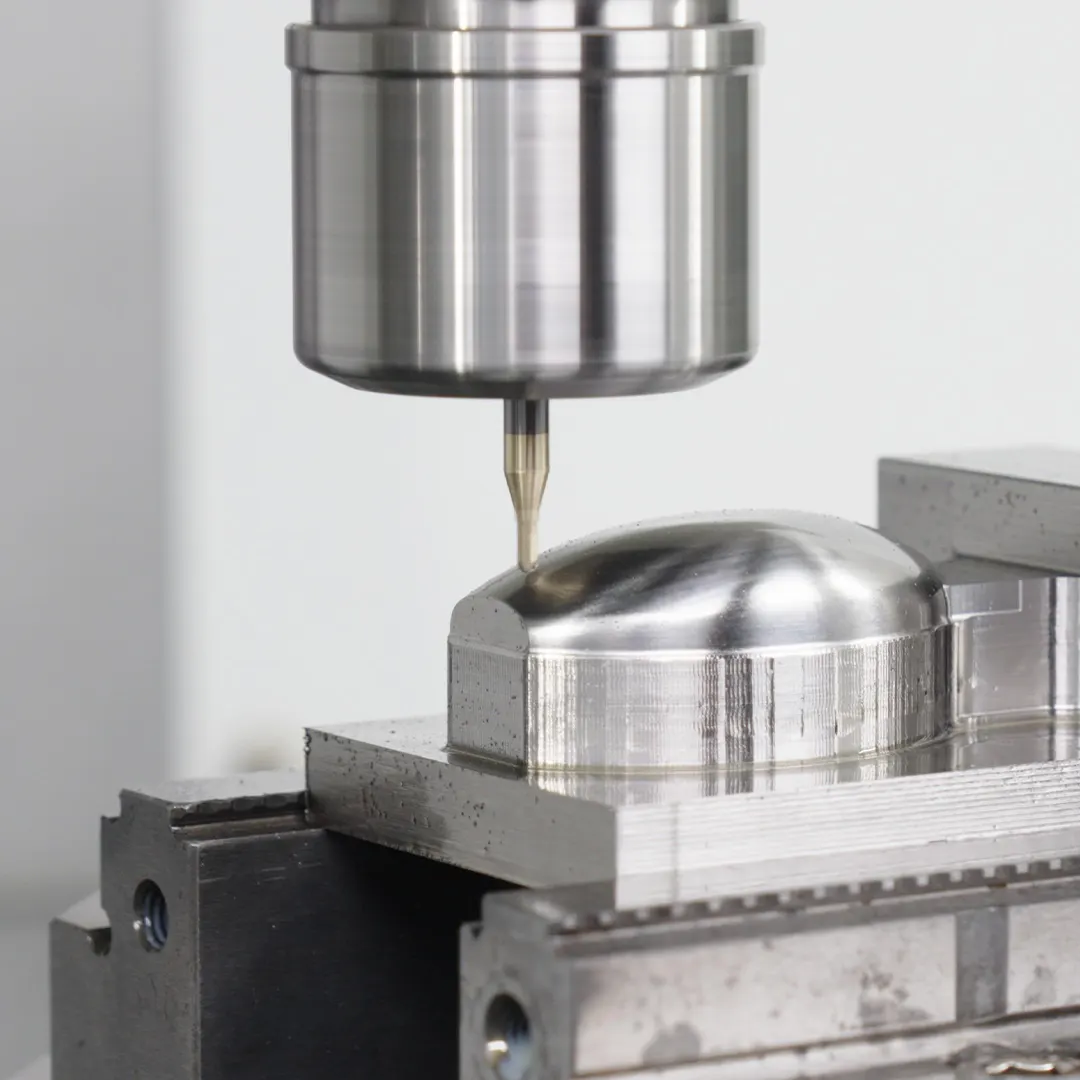

Fine Surface Finishing
Achieve mirror finishes with flatness within 2 um directly off the machine.

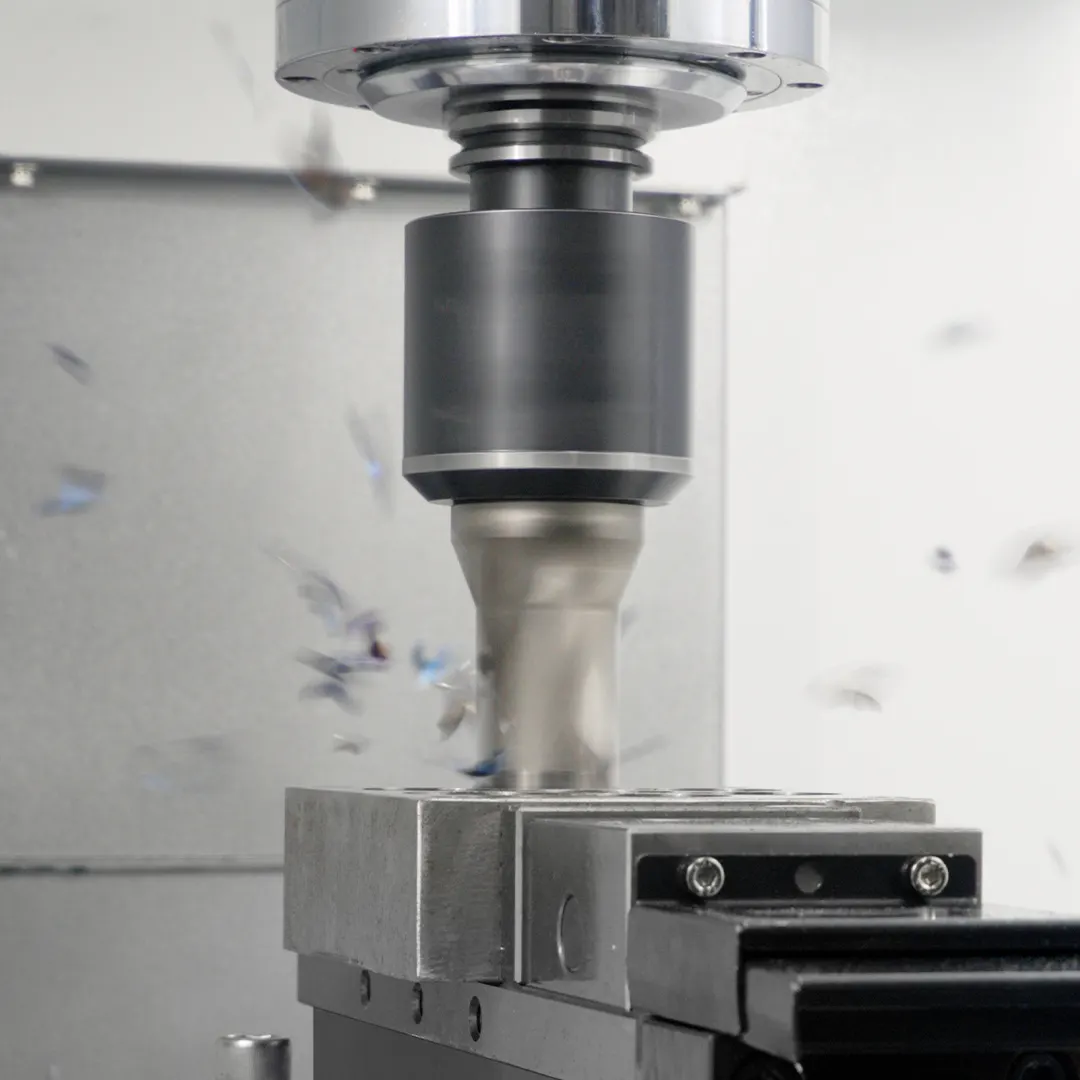

Heavy Roughing
FC300 castings and up to 420 ft-lb of torque available for massive material removal rates.
Dual Pallet (VAPC)
8.5-second table change with 0.00016 in repeatability for non-stop output.
5-Axis Trunnion
Roller gear cam tables with hydraulic brakes for complex single-setup parts.
In-Process Probing
Renishaw Set & Inspect for automated offsets and quality gates.
Lights-Out Ready
Chip management, mist collection, and ATC recovery built for unattended shifts.
Our Fleet
Find the Right Machine for Your Shop
Select a series, pick a model, and explore full specs, or browse the complete catalog below.
Interactive Fleet Configurator
Filter our lineup in real-time by selecting the platform, configuration, and spindle taper.
Matching Machining Centers (12)

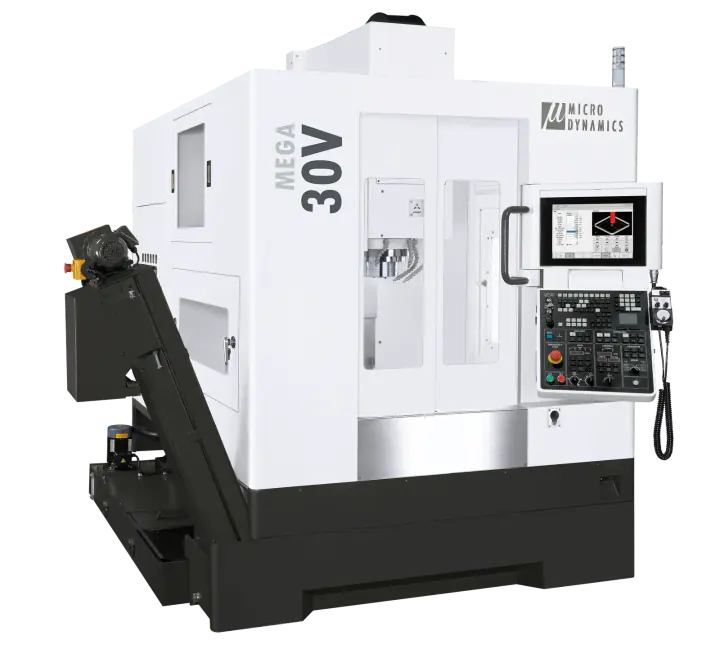

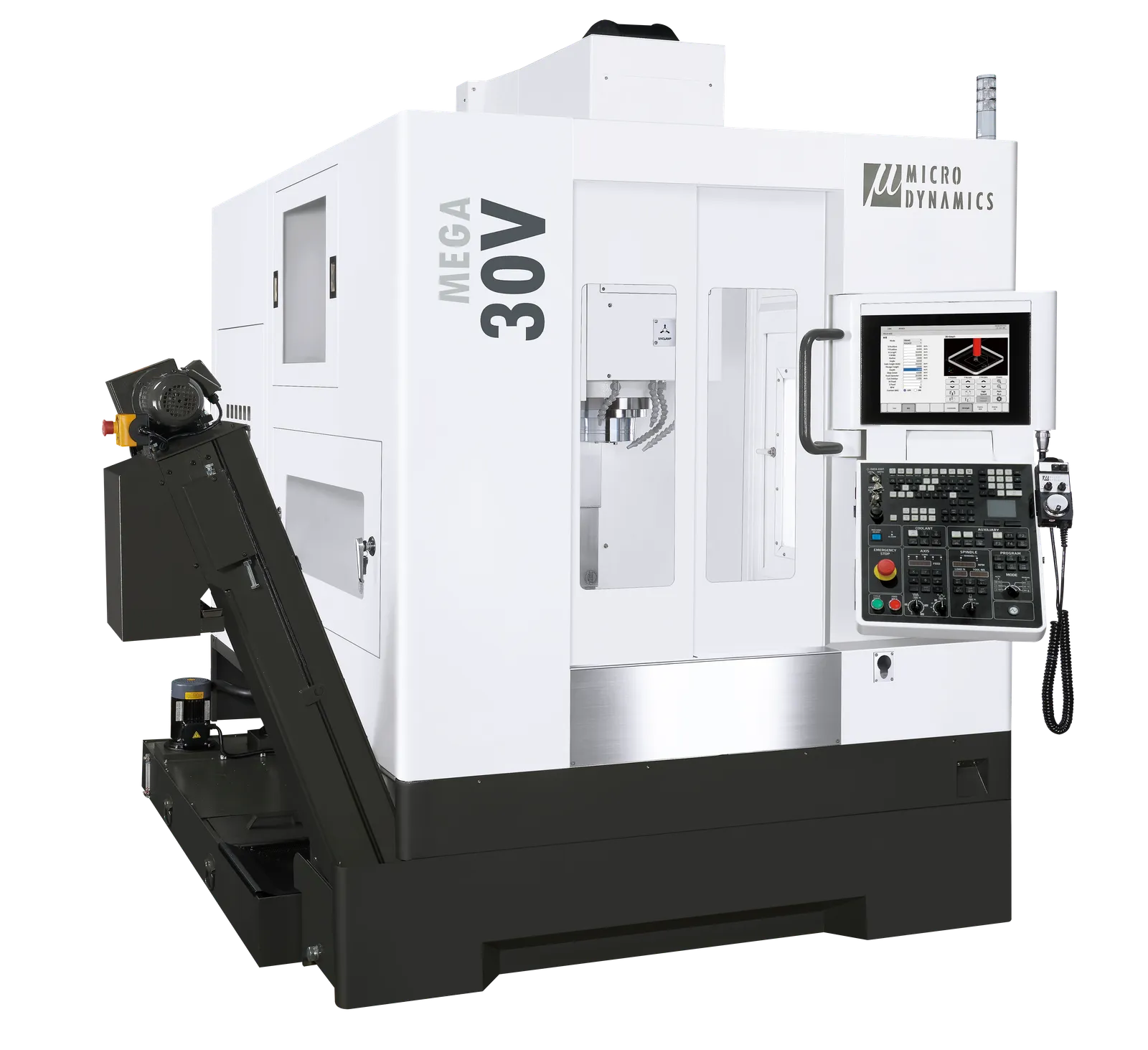

MEGA 30V
Tiny But Mighty! The most compact vertical machining center in its class...
Travel: 30 / 20 / 20 in
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table: 34 x 19.7 in (1,764 lbs load)
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table: 34 x 19.7 in (1,764 lbs load)

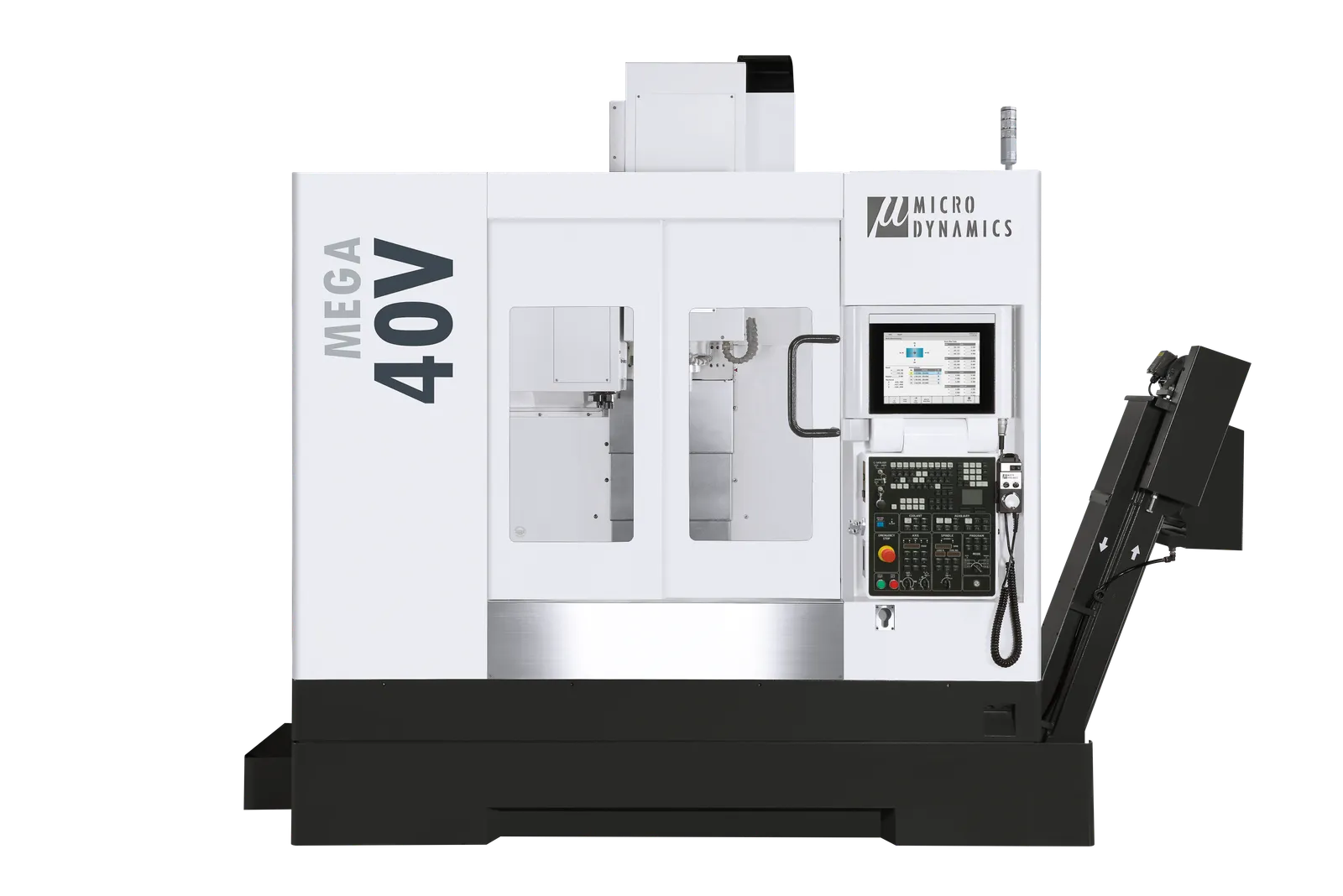

MEGA 40V
Compact, durable, powerful and accurate. Extended X-axis travel for vers...
Travel: 40 / 20 / 20 in
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table: 44 x 19.7 in (2,205 lbs load)
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table: 44 x 19.7 in (2,205 lbs load)

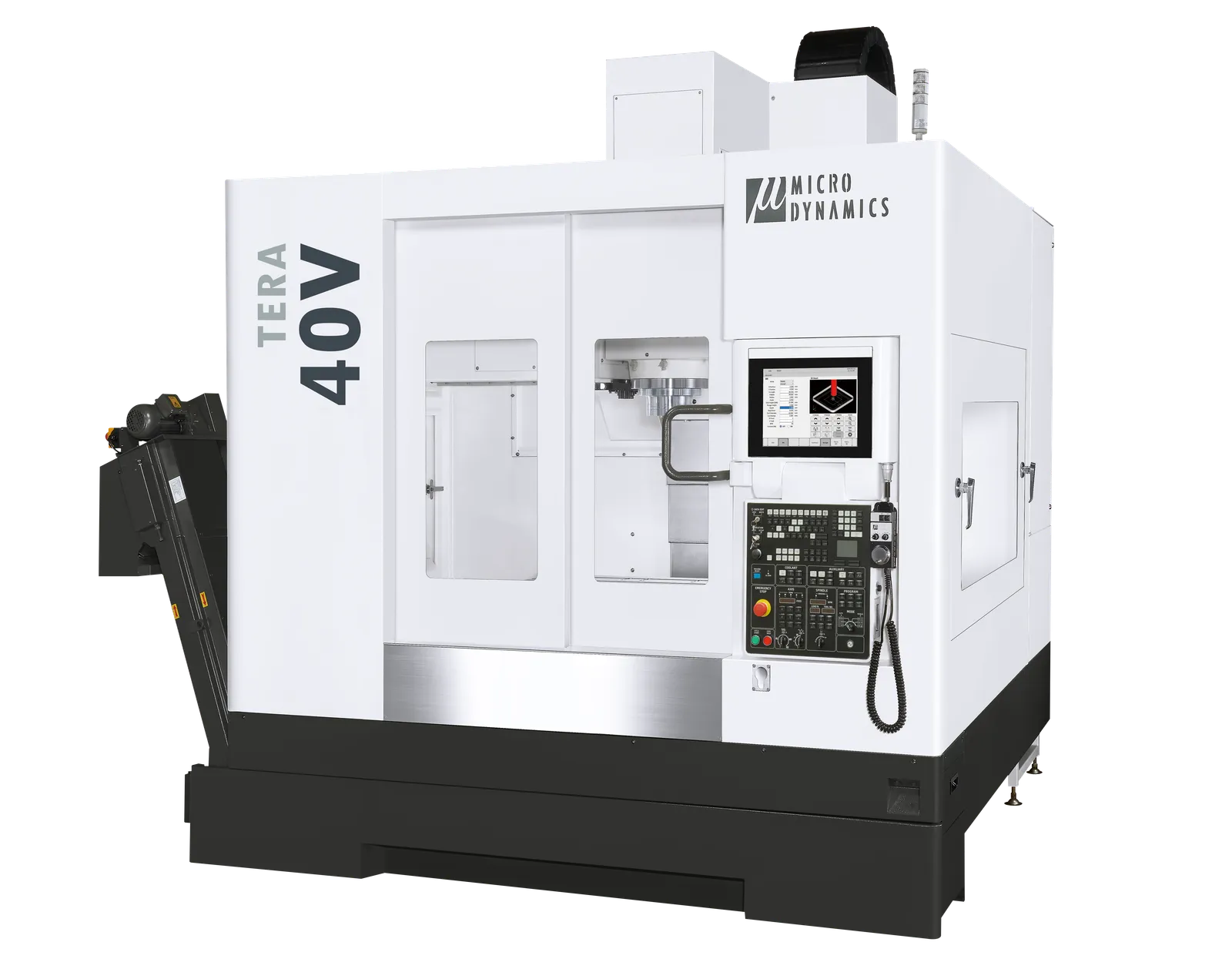

TERA 40V
Strongest vertical machining center in its class. Extended Y-axis travel...
Travel: 40 / 28 / 25 in
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table: 44 x 27.6 in (3,307 lbs load)
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table: 44 x 27.6 in (3,307 lbs load)

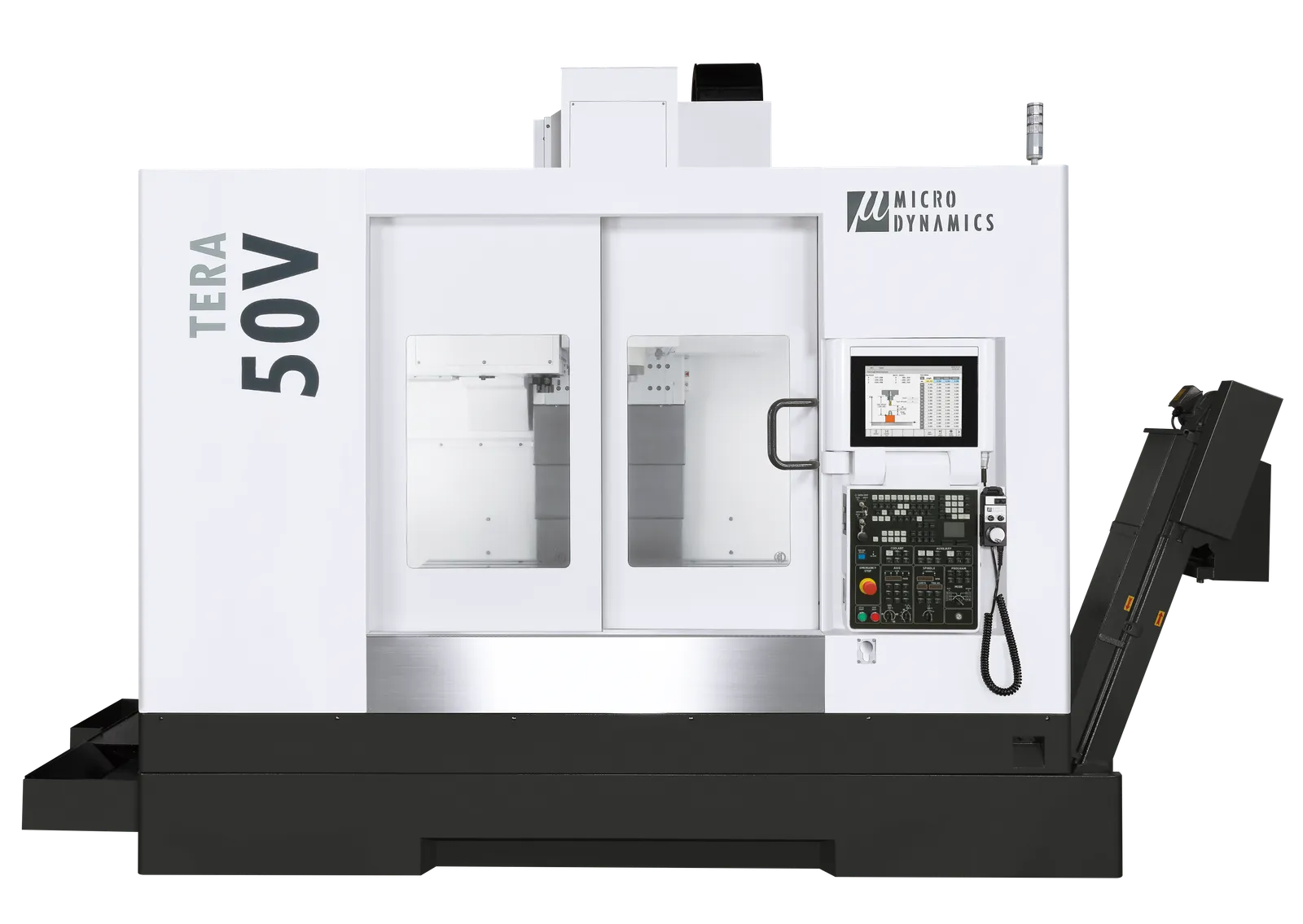

TERA 50V
Extended X-travel for large parts. 40-taper built-in spindle with 15,000...
Travel: 50 / 28 / 25 in
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table: 56 x 27.6 in (3,307 lbs load)
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table: 56 x 27.6 in (3,307 lbs load)
TERA 50V/50
50-taper built-in spindle delivering 420 ft-lb max torque and 45.6 HP max power at 12,000 rpm. For s...
Travel: 50 / 28 / 25 in
Spindle: 12K rpm (No High Speed Options) | 50 Taper
Table: 56 x 27.6 in (3,307 lbs load)
Spindle: 12K rpm (No High Speed Options) | 50 Taper
Table: 56 x 27.6 in (3,307 lbs load)

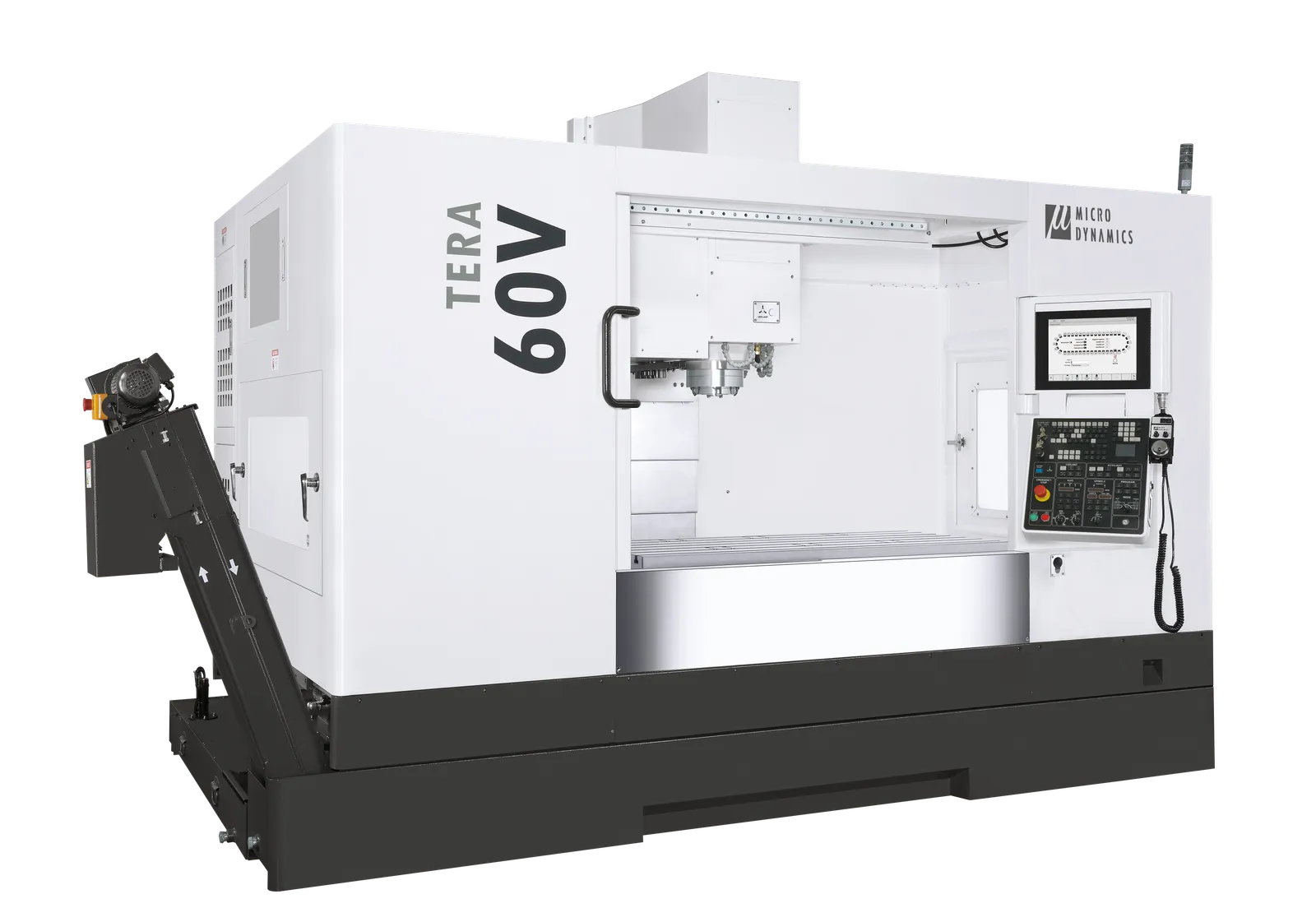

TERA 60V
Massive capacity machining center with the largest table in its class. 4...
Travel: 60 / 28 / 25 in
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table: 68 x 27.6 in (4,409 lbs load)
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table: 68 x 27.6 in (4,409 lbs load)

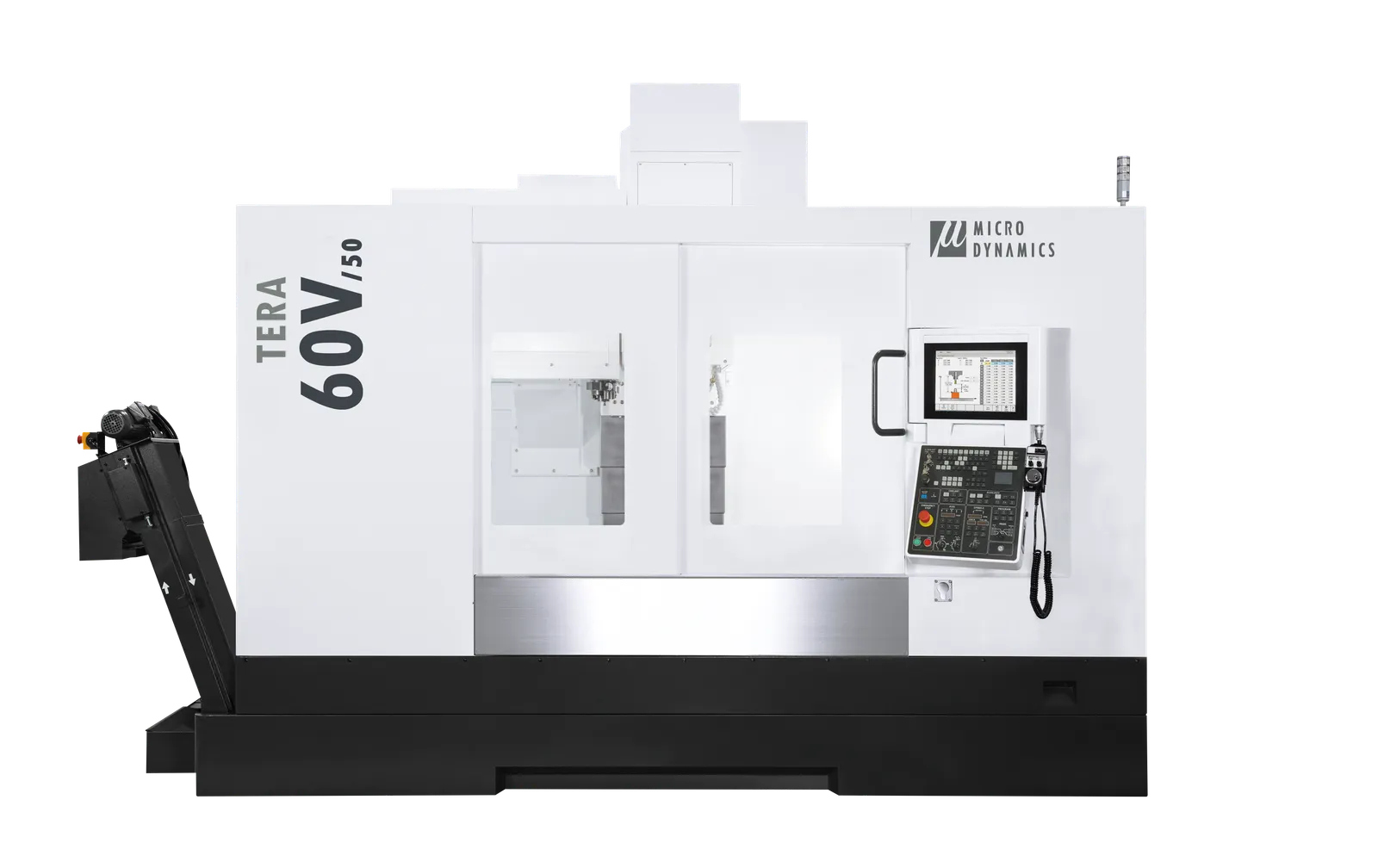

TERA 60V/50
Our largest 50-taper machine. 60 in X-axis with 420 ft-lb torque and 45.6 HP power. Maximum metal re...
Travel: 60 / 28 / 25 in
Spindle: 12K rpm (No High Speed Options) | 50 Taper
Table: 68 x 27.6 in (4,409 lbs load)
Spindle: 12K rpm (No High Speed Options) | 50 Taper
Table: 68 x 27.6 in (4,409 lbs load)

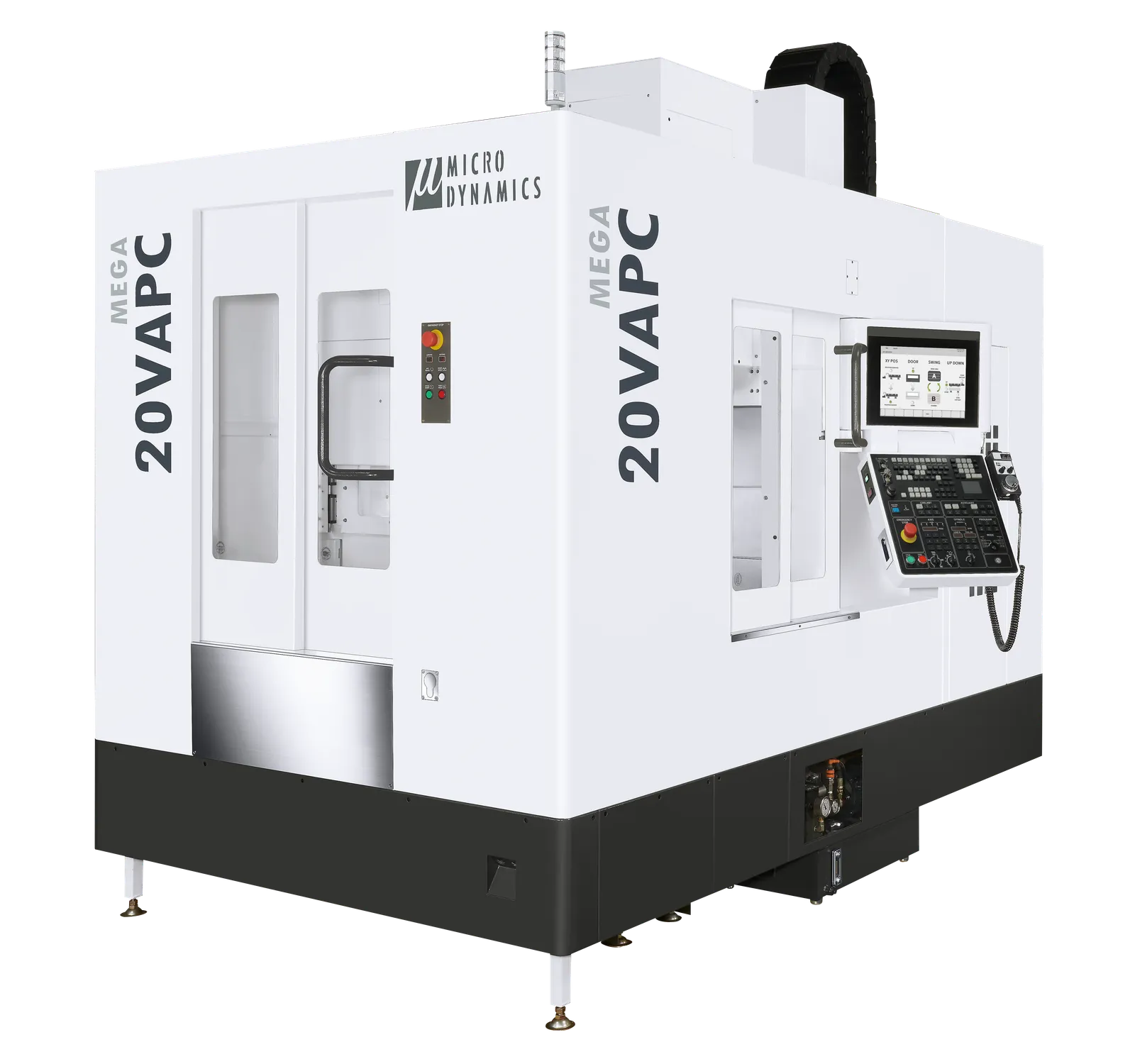

MEGA 20VAPC
Revolutionize production with a servo-driven dual pallet changer for non...
Pallet Change: 8.5 sec
Travel: 23.6 / 20 / 20 in
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Travel: 23.6 / 20 / 20 in
Spindle: 15K rpm (20K/24K optional) | 40 Taper

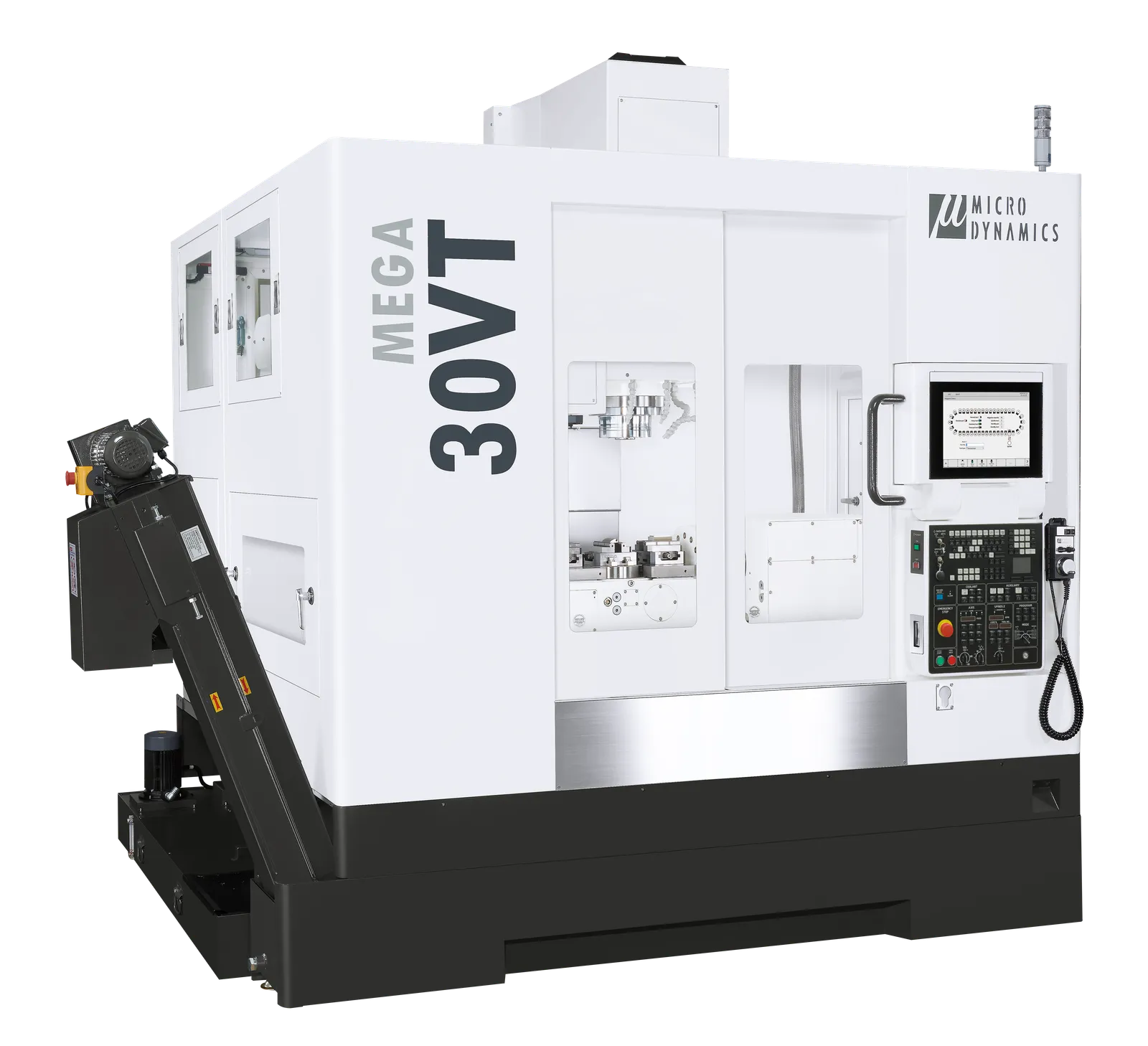

MEGA 30VT
5-axis trunnion table machine with hydraulic brakes and Roller Gear Cam ...
Travel: 30.7 / 20 / 17.4 in
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table Load: 331 lbs | Tilting: +40 to -120 deg
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table Load: 331 lbs | Tilting: +40 to -120 deg

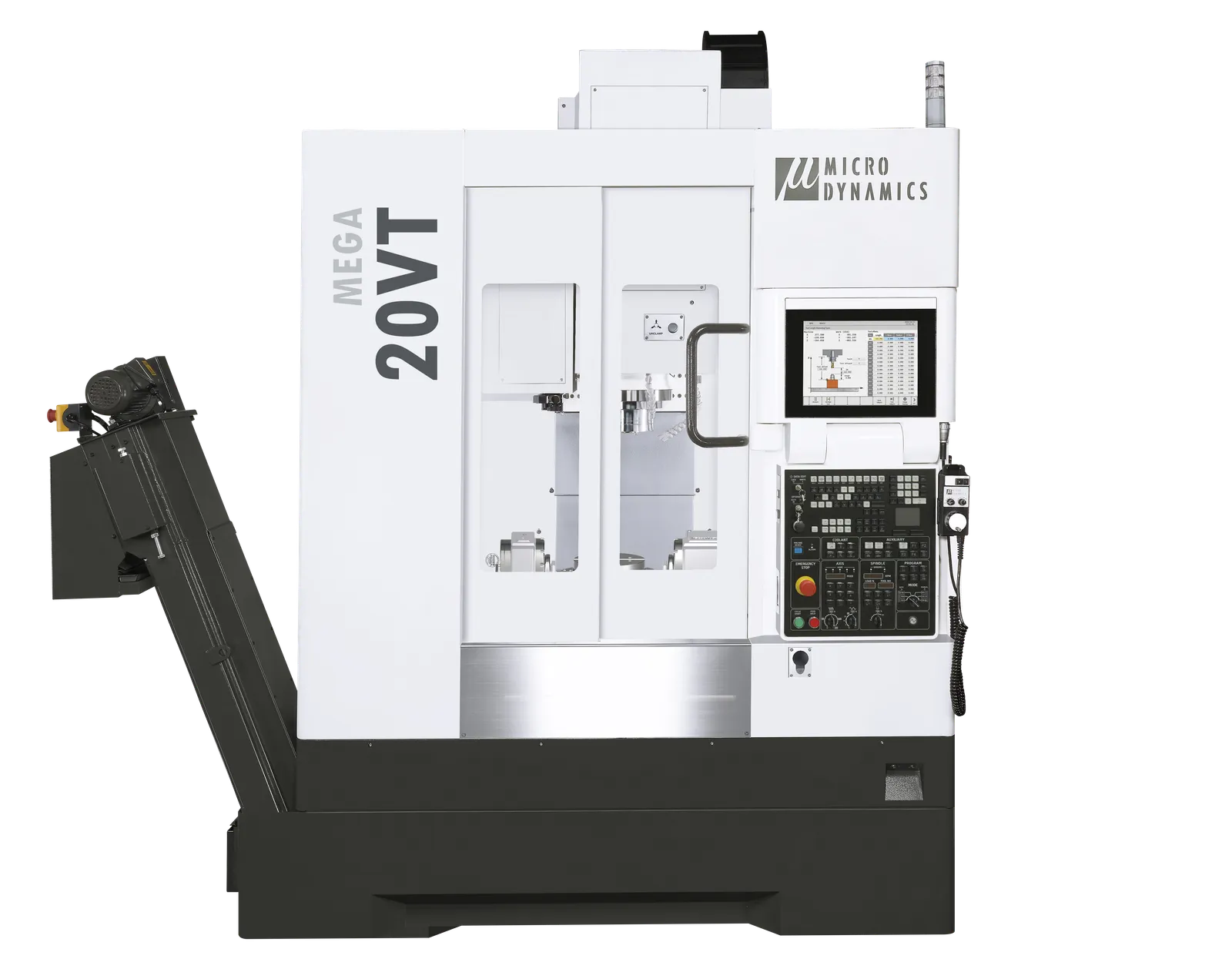

MEGA 20VT
5-axis trunnion table machine with 20 in Y-travel. High-acceleration torque motors, ...
Travel: 16.5 / 20 / 17.7 in
Spindle: 15K rpm (20K/24K/30K optional) | 40 Taper
Table Load: 110 lbs | Tilting: 40° to -120°
Spindle: 15K rpm (20K/24K/30K optional) | 40 Taper
Table Load: 110 lbs | Tilting: 40° to -120°

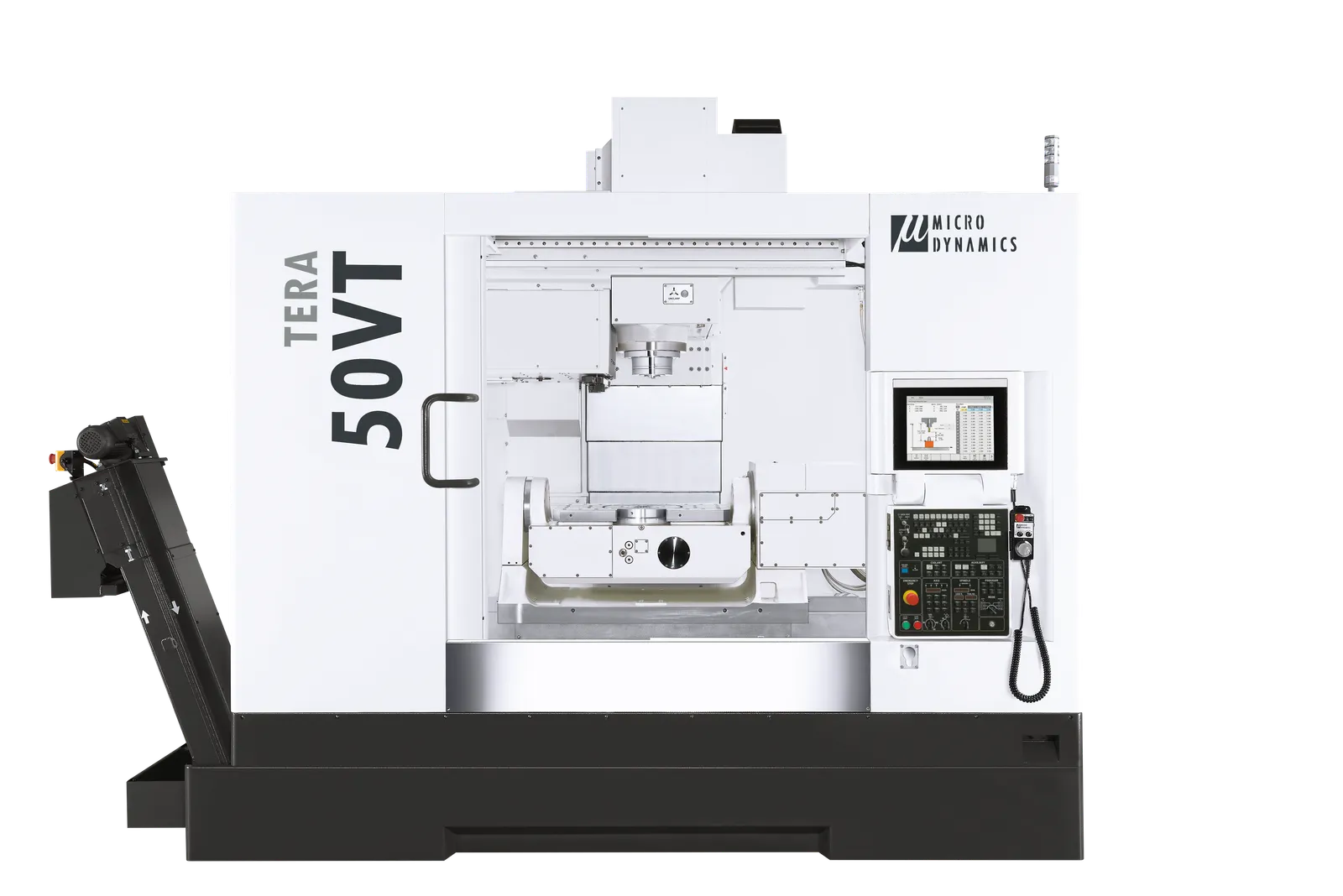

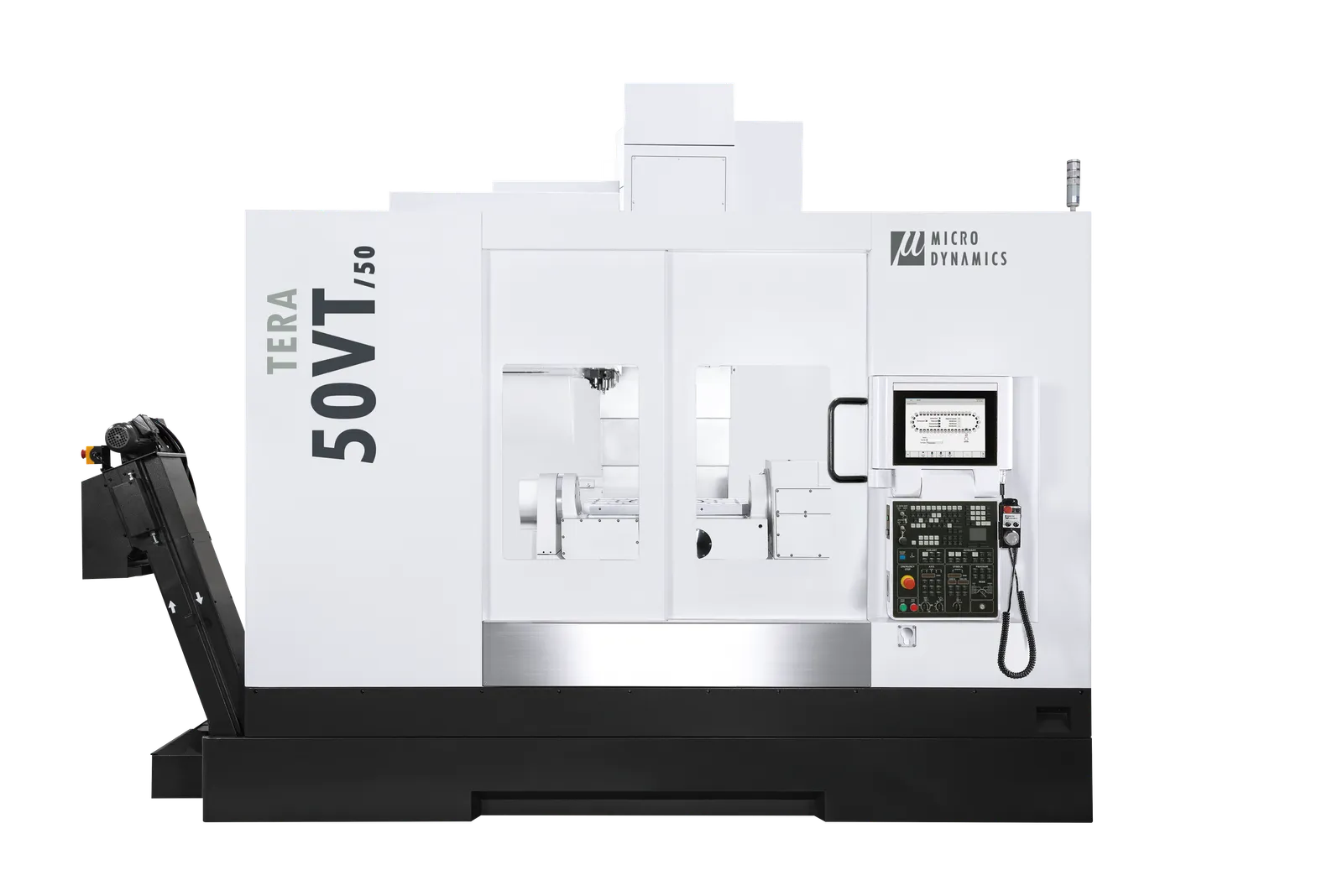

TERA 50VT
Larger 5-axis trunnion table with Roller Gear Cam Mechanism and hydrauli...
Travel: 38 / 28 / 19.7 in
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table Load: 551 lbs | Tilting: +40 to -120 deg
Spindle: 15K rpm (20K/24K optional) | 40 Taper
Table Load: 551 lbs | Tilting: +40 to -120 deg
Shop Floor & Machine Gallery
See the Machines in Action
Drag or scroll through real machining, structures, and production setups, the same rigidity and precision your parts will see.

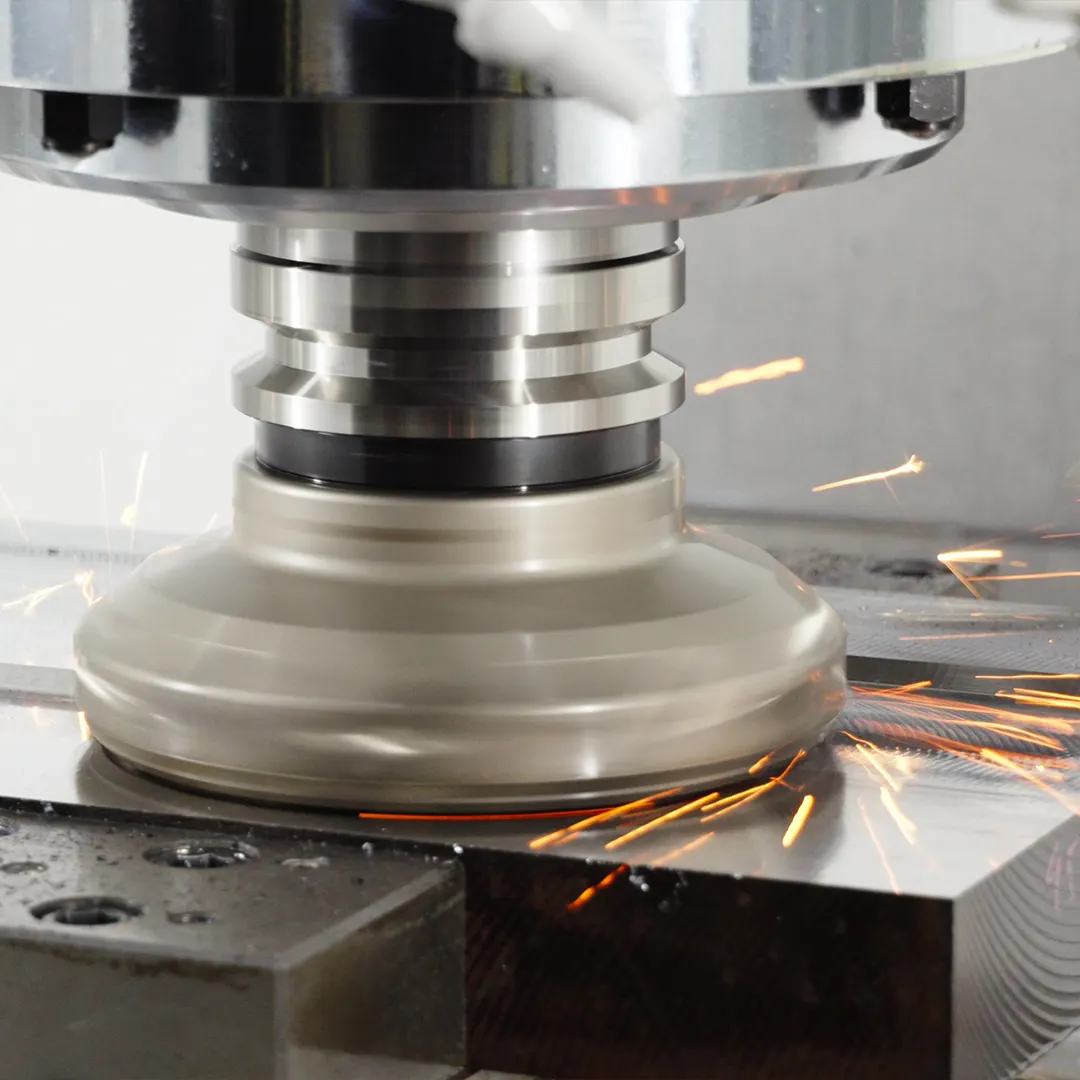

Heavy Roughing
420 ft-lb available on 50-taper platforms
Mirror Finishing
DYPEC holds flatness within 2 µm
5-Axis Trunnion
Three-vises production on MEGA/TERA VT
Built-in Spindle
15,000 rpm standard, power when it counts
Surface Quality
Finish passes that skip the polishing bench
Face Milling
Aggressive cuts with zero chatter
TERA 50V
Extended travel for large components
About Micro Dynamics
Read Technical
Articles
Precision Performance, Trusted Worldwide
Micro Dynamics opens a new era in versatile vertical machining centers. Compact, durable, powerful, and accurate, the smallest C-frame machines in their class deliver results for dies & molds, aerospace, automotive, semiconductor, job shops, and general machining.
Every machine starts with FC300 Meehanite castings, FEA-optimized ribbing, and hand-scraped ways. MEGA and TERA represent two C-frame sizes with optimal component placement for the smallest footprint in class.
Founded FocusVertical machining centers
engineered for real production floors.
Global SupportDealer network, live demos,
and engineering response within 24 hours.
MEGA LineCompact platforms, 30V, 40V, 30VT
for tight floors.
TERA LineHeavy-duty, 40V through 60V/50 for
maximum capacity.
Heavy Cutting
Mirror Finish

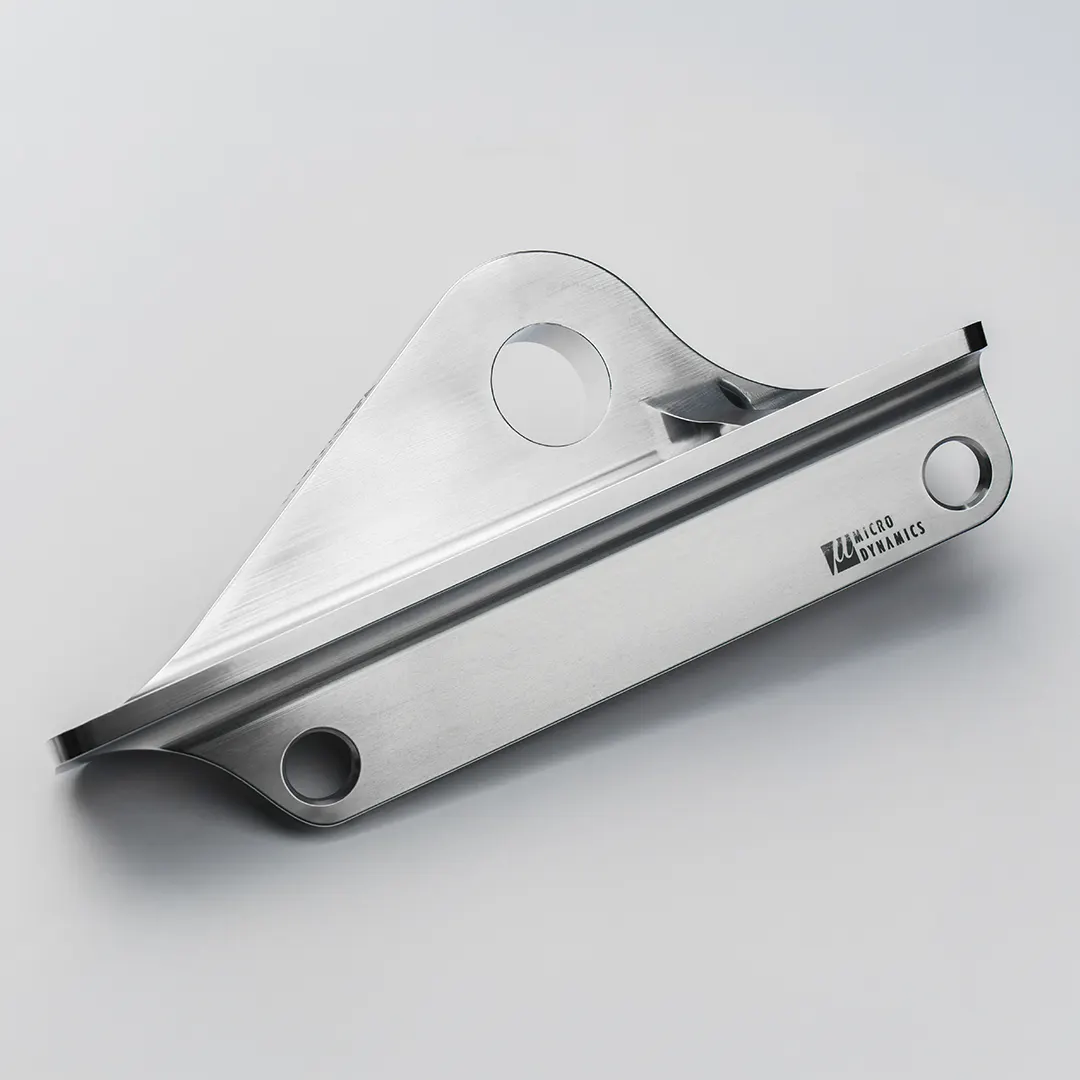

Aerospace Part
Material Removal
The Proof
Performance That Shows Up in the Part
It's not just about what the brochure says; it's about what happens when the tool meets the material. Our machines deliver tangible results.
-
Heavy Cutting Capability
Maintain structural integrity even during aggressive material removal.
-
Flawless Fine Finishing
Eliminate hand-polishing with mirror-like surface finishes right off the machine.
-
Long-Run Thermal Accuracy
The 100th part measures exactly the same as the first, without constant offsets.
Customer Trust
What Shops Say About Micro Dynamics
"Very solid machine. It has become the main workhorse in our shop. We throw our toughest aerospace alloys at it daily."
John D.
Production Manager
"Cycle times dropped significantly compared to our previous equipment. Holds size without constant adjustment from the operators."
Sarah M.
Lead Programmer
"We are expanding with more machines from Micro Dynamics. The reliability and the finish quality mean less scrap and more profit."
Michael T.
Shop Owner
The Business Case
A Better Machine Does More Than Cut Metal
When you invest in true rigidity and stability, the returns show up on your bottom line.
More Parts Per Day
Higher feed rates and faster rapids mean shorter cycle times.
Less Scrap & Rework
Consistent accuracy drastically reduces manual corrections.
Confidence Quoting
Take on tight-tolerance work knowing you can deliver.
Next Steps
Ready to Get Started?
Tell us about your applications, materials, and production goals. Our engineering team will recommend the perfect setup for your shop floor.
Got Questions?
Frequently Asked Questions
What industries are Micro Dynamics machines best suited for?
Our machines excel in demanding environments including Aerospace, Medical Devices, Automotive, Mold & Die, and high-precision general subcontract machining where tight tolerances are critical.
Can these machines handle both roughing and finishing?
Yes. Thanks to highly rigid castings and advanced spindle technologies, Micro Dynamics machines have the torque for heavy material removal and the vibration dampening needed for mirror-like finishing passes.
How does Micro Dynamics help with thermal stability?
We utilize advanced structural thermal displacement compensation, spindle cooling systems, and symmetrical machine designs to negate the effects of shop temperature variations and heat generated during cutting.
Do you offer 3-axis and 5-axis options?
Absolutely. We have a comprehensive lineup ranging from robust 3-axis vertical machining centers (MEGA and TERA series) to fully simultaneous 5-axis solutions for complex part geometry.
What is DYPEC and is it included standard?
DYPEC (Dynamic Predictive Error Compensation) is standard on Micro Dynamics machines. It continuously corrects thermal displacement with 0.1 µm resolution, critical for long runs and mirror-finish mold work without constant operator offsets.
How fast is the automatic tool changer?
Tool-to-tool changes are 1.2 seconds on standard ATC configurations, with an ATC recovery function that simplifies error recovery and protects uptime during lights-out production.
Which CNC controllers are available?
Choose Mitsubishi M830VW / M850VW for high-speed multi-axis control (5-axis simultaneous upgrade available), or FANUC 0i-MF Plus for industry-standard reliability with SmartGuide-I conversational programming.
Can I book a live demo or virtual walkthrough?
Yes, visit our Contact page. Select your preferred time slot and timezone, and our team will confirm the best session for your application review via email.
What automation options exist for high-volume shops?
The MEGA 20VAPC offers an 8.5-second dual pallet changer with 0.00016 in repeatability. Additional options include 60/90-tool magazines, servo doors, Renishaw probing, high-pressure CTS, and 4th/5th-axis pre-wiring.
Ready to Improve Accuracy, Output, and Confidence on the Shop Floor?
Tell us what parts you make and what challenges you're facing. We'll help you find the right Micro Dynamics machine for your application.
Get a Quote Today
