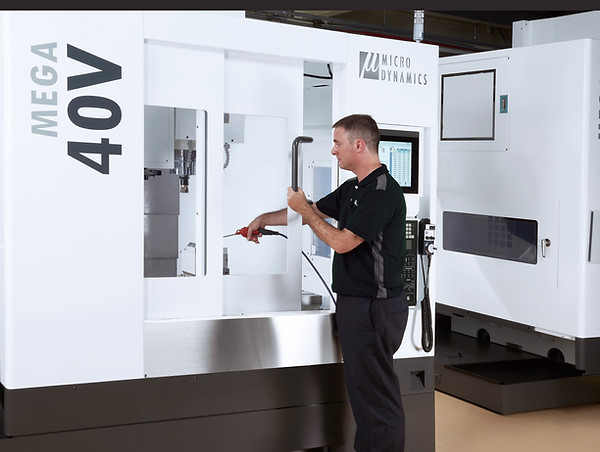

Synchronized Two-Piece Door
Large wide front door can be opened with one hand for fast load/unload cycles.

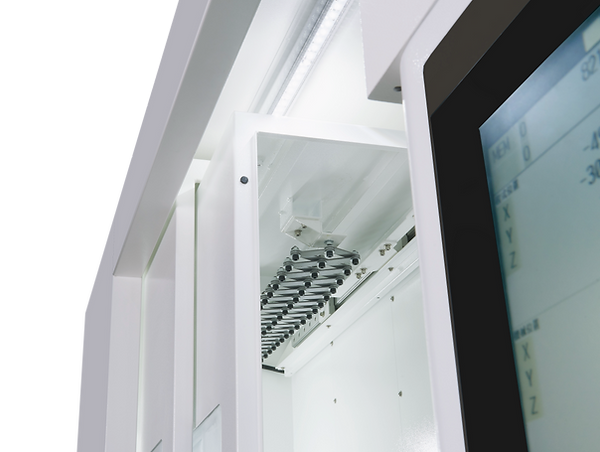

MEGA/TERA Series is ergonomically designed for operator and maintenance convenience. The large wide front door can be opened with one hand. Three LED lights - two in the sides and one over the work area - keep the workspace clear and visible.

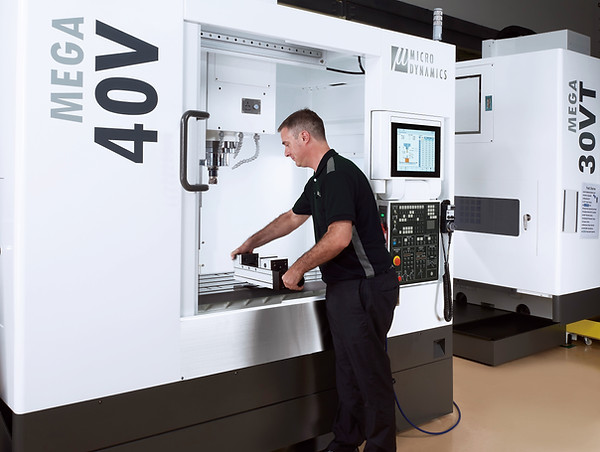

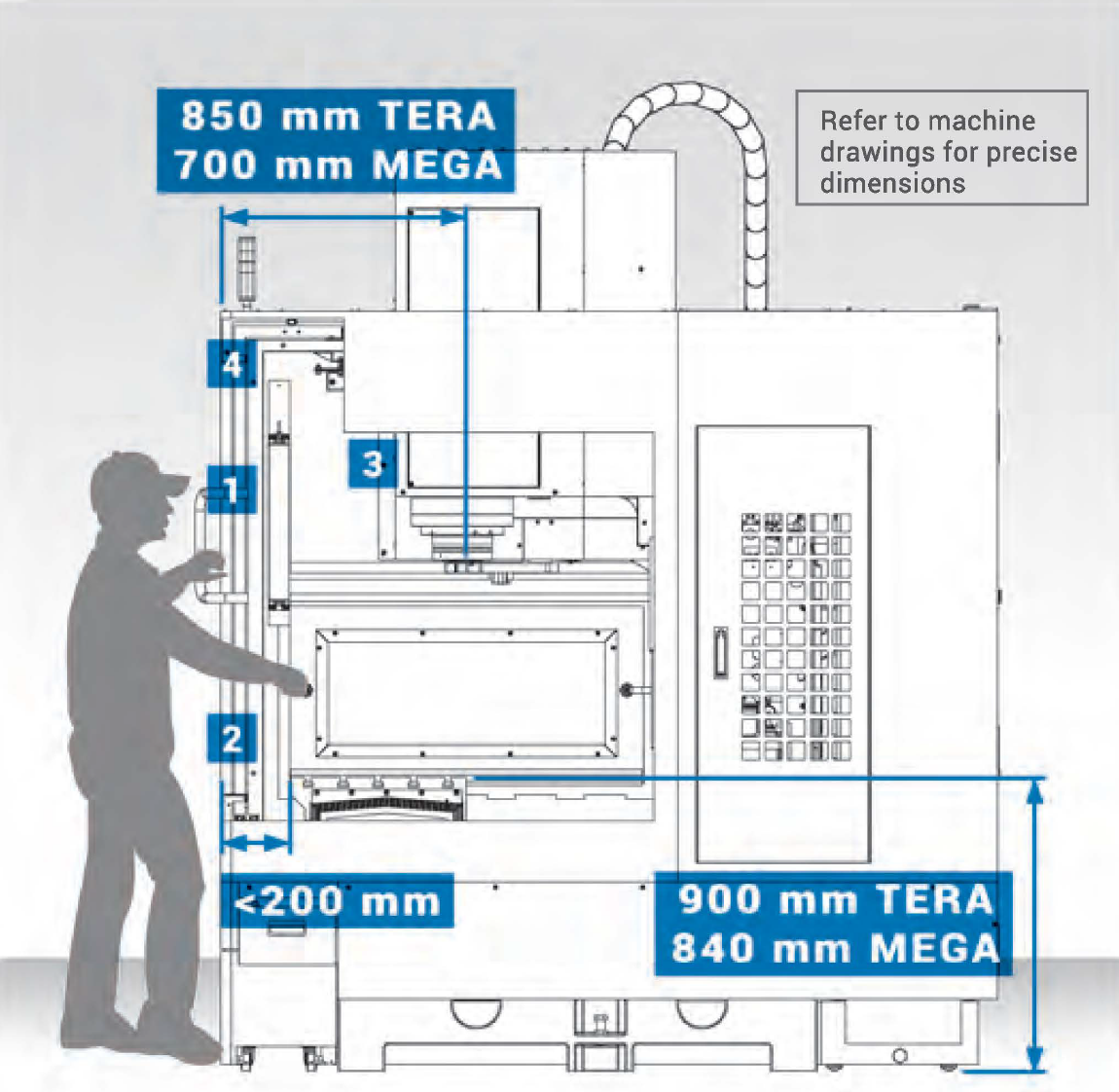

The distance from the door to the table is less than 8 in (8") for easy setup and part loading. Reach to the spindle is greatly reduced so operators spend less time stretching and more time producing.
Large wide front door can be opened with one hand for fast load/unload cycles.
Short door-to-table distance makes setup and part loading faster and safer.

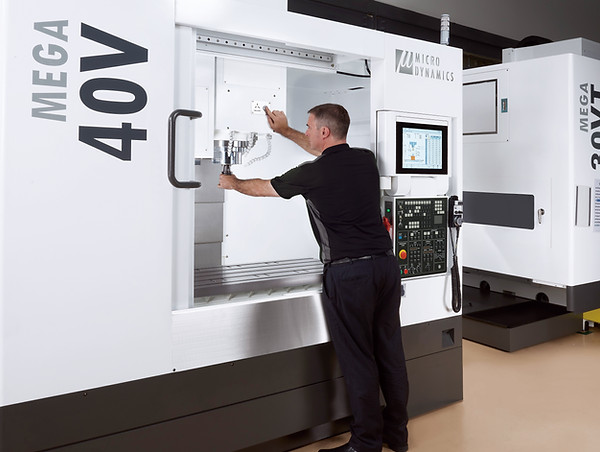

Operator reach to the spindle is greatly reduced for tool changes and inspection.

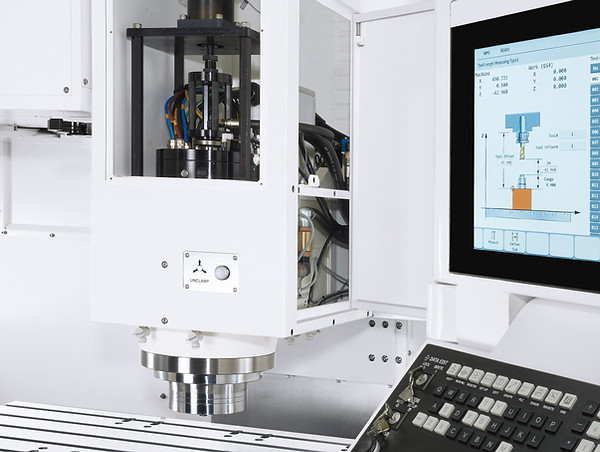

Headstock service door facilitates access and is standard on all models. Pre-plumbed CTS can be installed through this door.

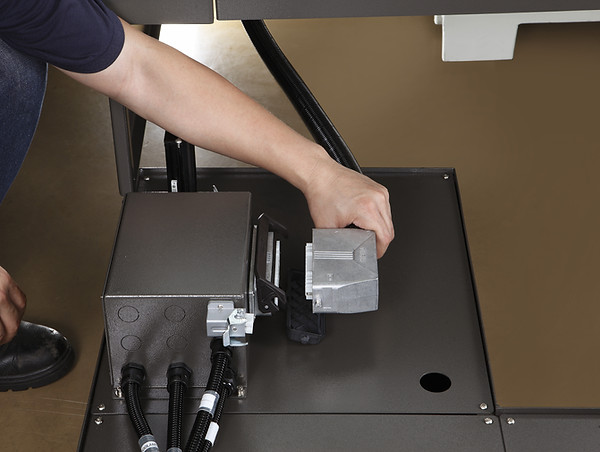

Coolant tank can be detached with one plug for fast service and cleanup.

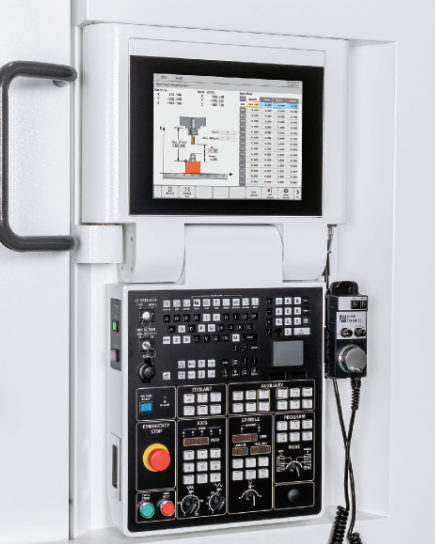

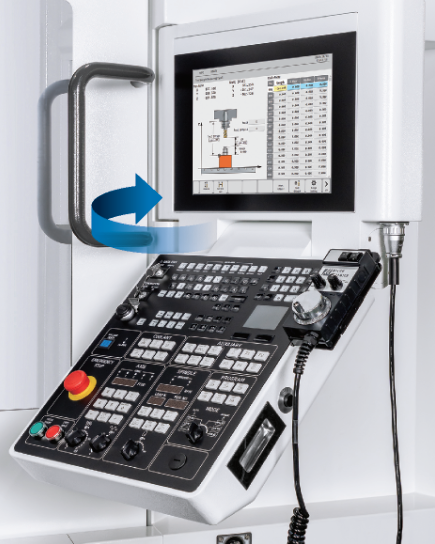

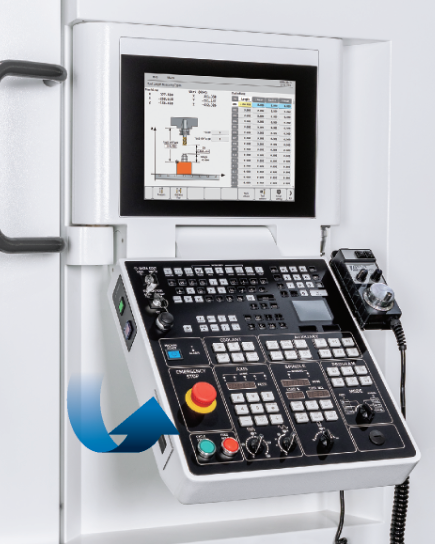

The two-axis motion operator panel provides flat, tilting, and swivel movements. Operators can set tilt and rotation for the best viewing angle and comfort.

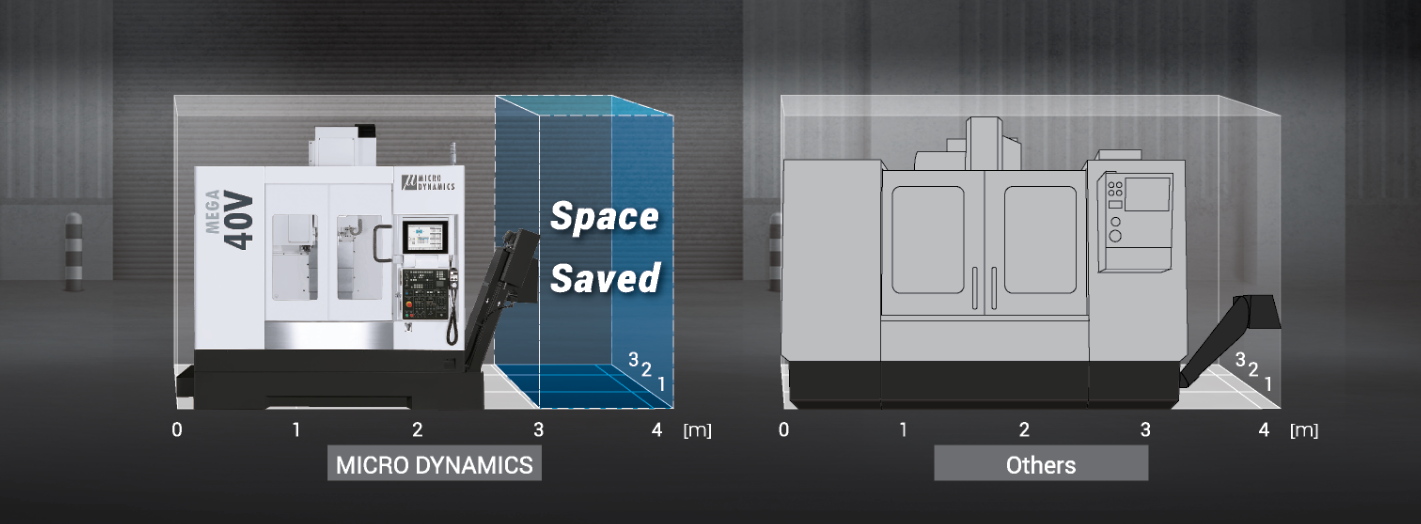

Optimize efficiency and floor space with a reduced footprint compared to other vertical machining centers with the same travel.
| Model | X/Y Travel | Space Saved |
|---|---|---|
| MEGA 20VAPC | 23.6 x 20 in | up to 46% |
| MEGA 30V | 30 x 20 in | up to 28% |
| MEGA 40V | 40 x 20 in | up to 37% |
| MEGA 30VT | 30.7 x 20 in | up to 23% |
| TERA 40V | 40 x 28 in | up to 28% |
| TERA 50V | 50 x 28 in | up to 25% |
| TERA 60V | 60 x 28 in | up to 10% |
| TERA 50VT | 38 x 28 in | up to 38% |
