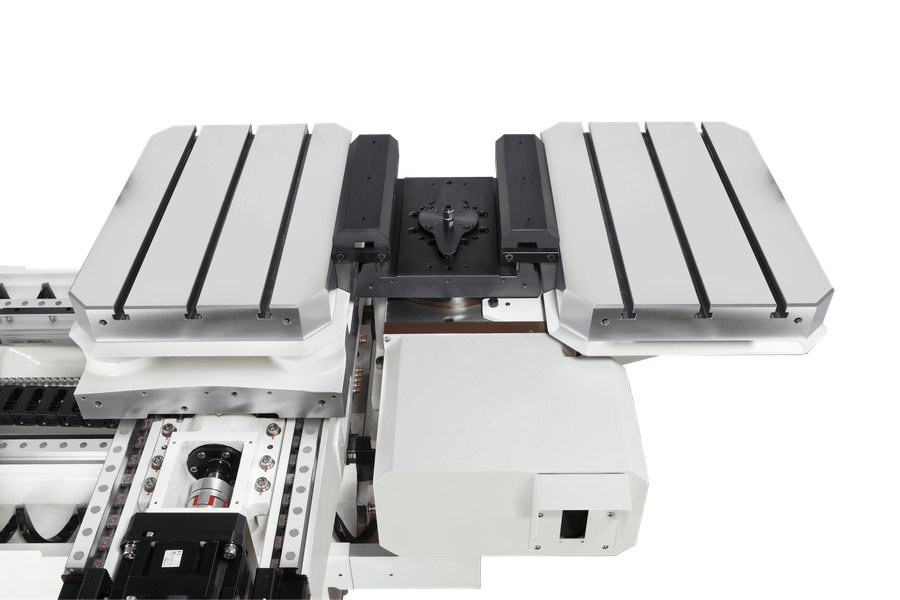

Servo Driven Pallet Changer
Fast, controlled pallet exchange in 8.5 seconds for continuous production flow.

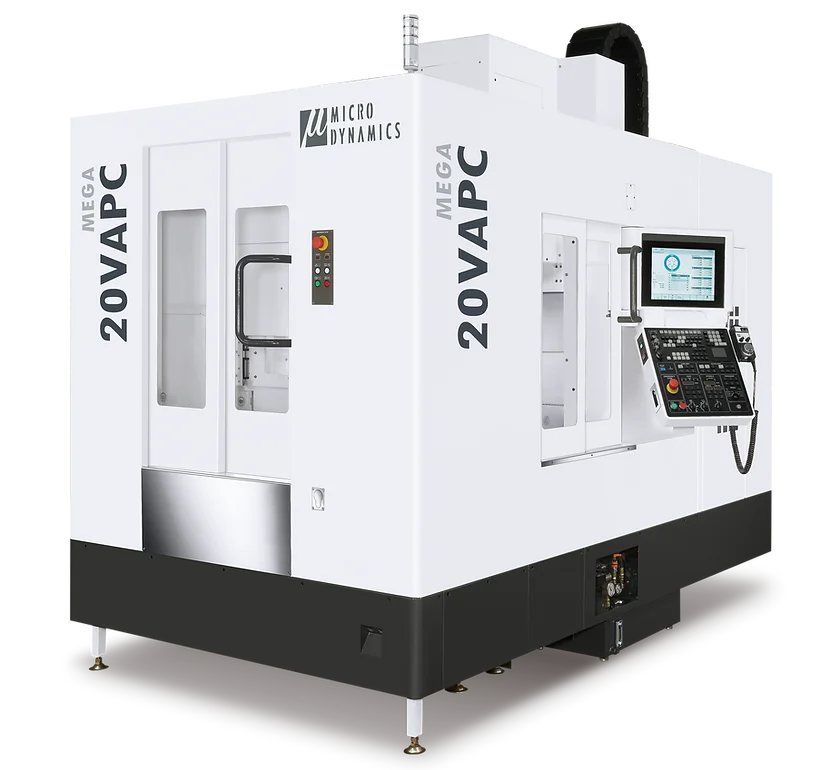

Dual pallet changer MEGA 20VAPC is designed for high production. The servo-driven pallet changer switches tables in 8.5 seconds. With APC recovery in the HMI, the operator can easily perform maintenance of the pallet changer.
Load and unload on one pallet while the other is cutting. Production efficiency stays high because loading/unloading happens simultaneously with machining.
Fast, controlled pallet exchange in 8.5 seconds for continuous production flow.

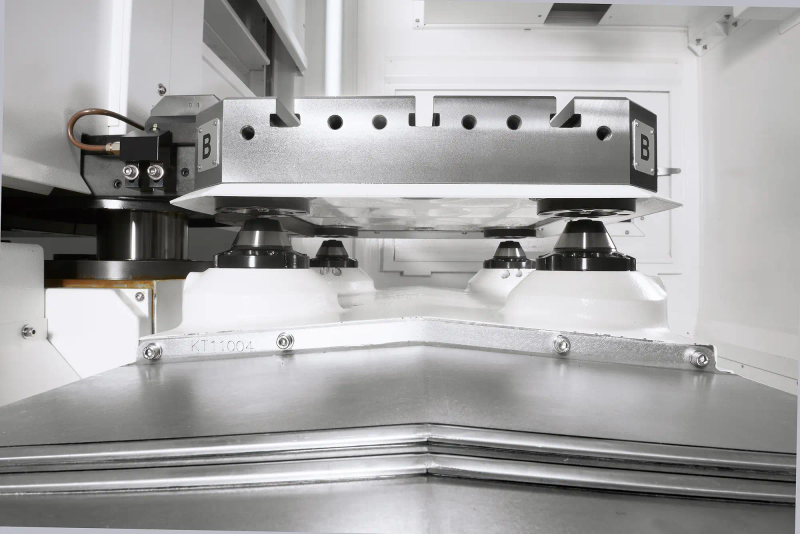

Pressurized locating cones deliver 0.00016 in repeatability for reliable pallet seating.

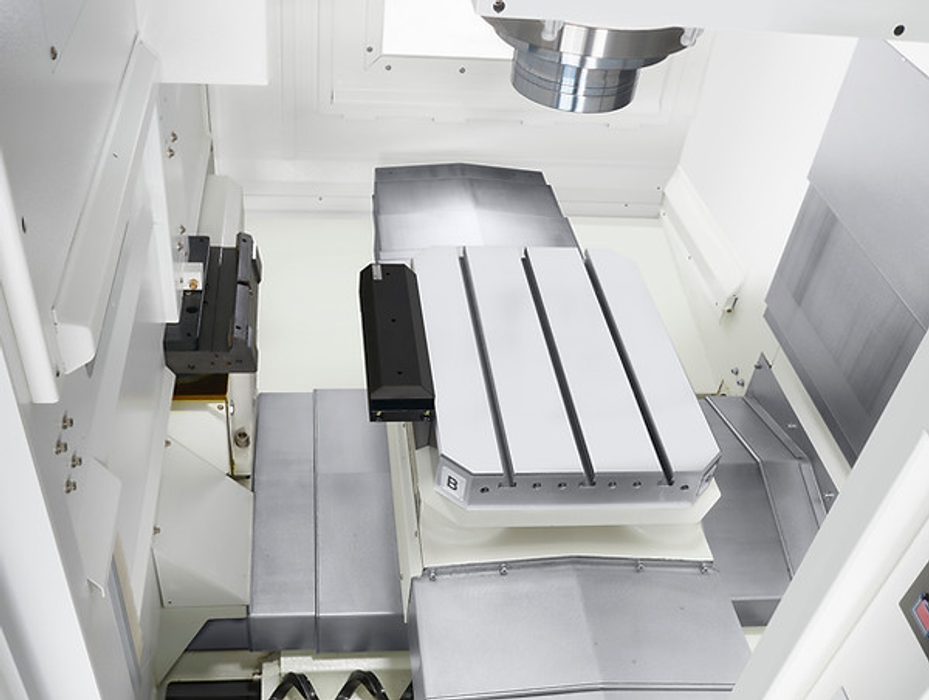

Table size 22 x 15.7 in - compact dual-pallet layout with full MEGA-series machining capability.

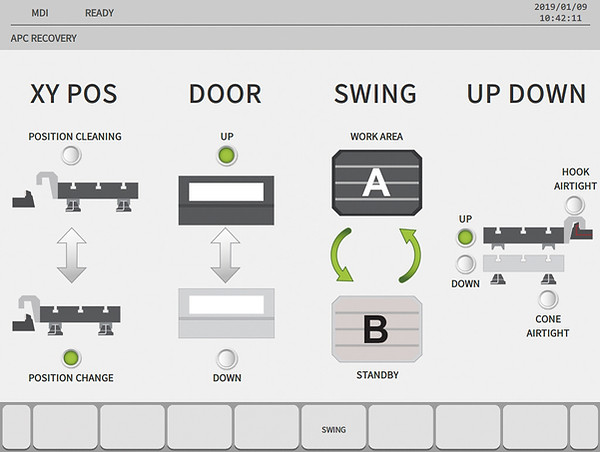

Operator-friendly recovery screens make pallet-changer maintenance and restart straightforward.

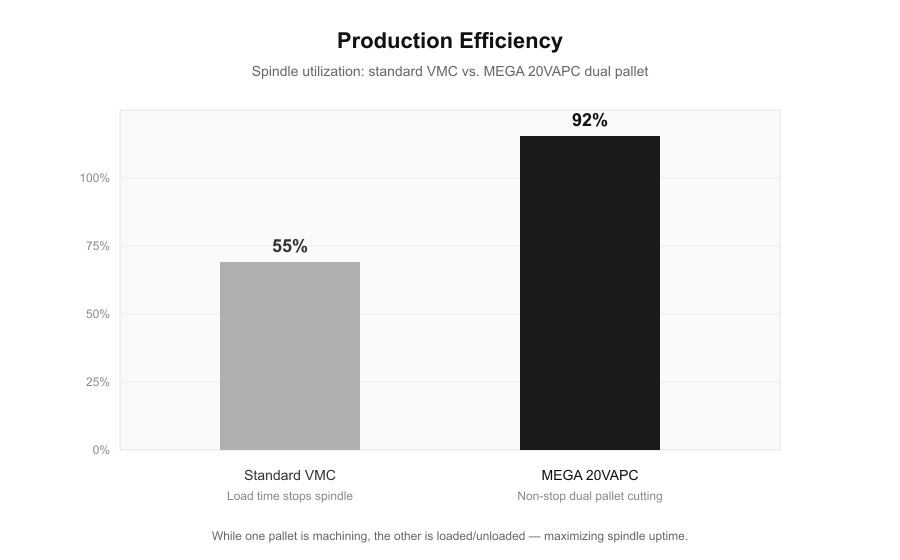

While one pallet is in the cut, the other is available for loading and unloading - maximizing spindle utilization versus a standard VMC.

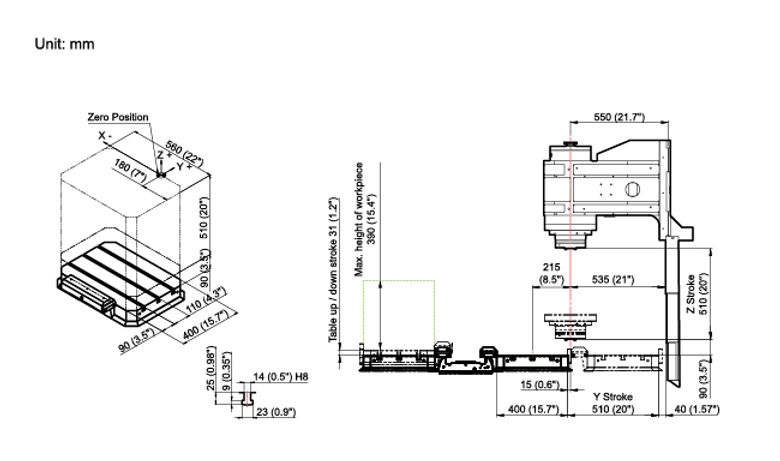

MEGA 20VAPC travel: X 23.6 in · Y 20 in · Z 20 in - compact footprint with production-ready work envelope.
Tell us about your parts and production goals. We’ll match the right Micro Dynamics machine and options to your application.
