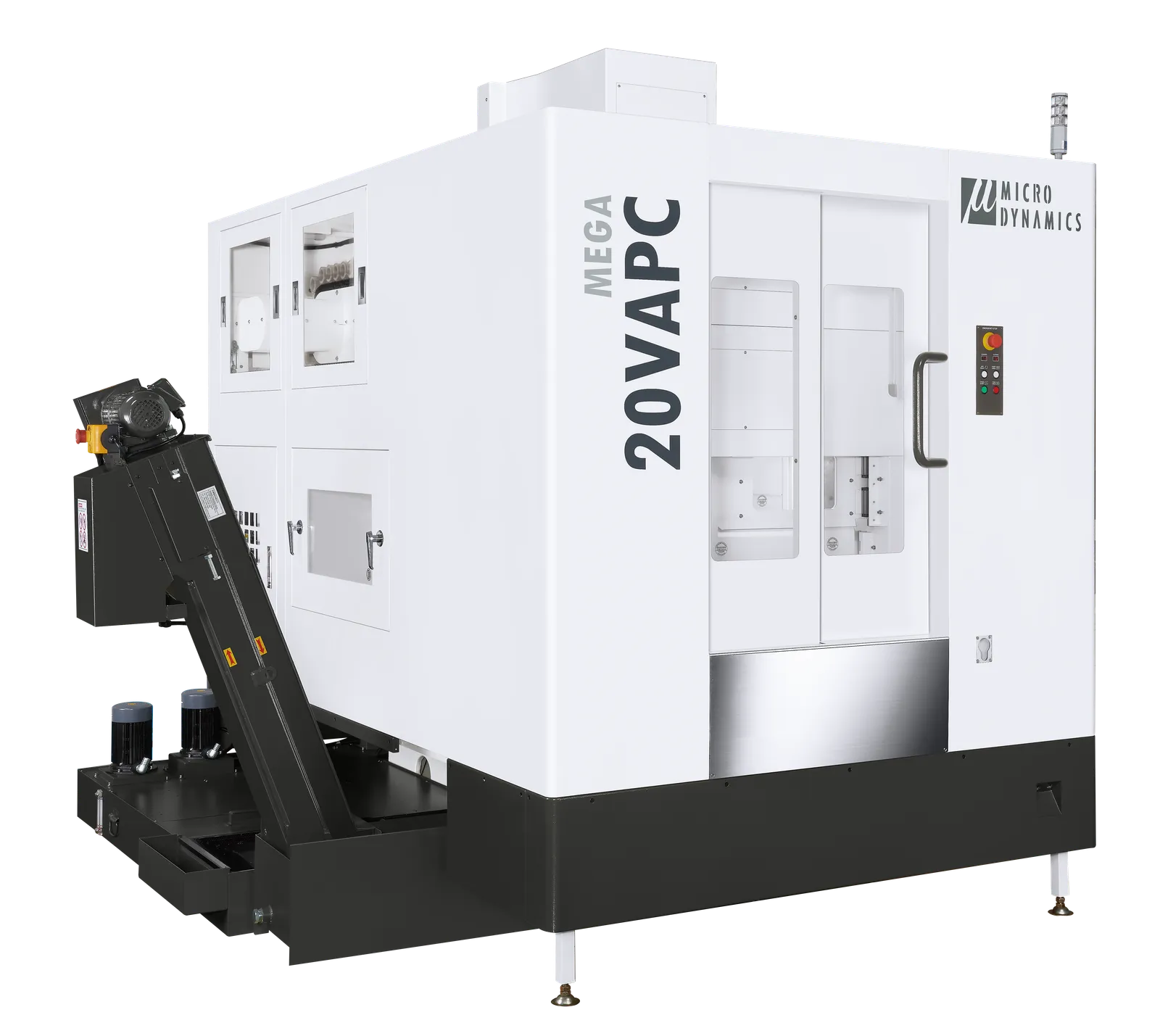

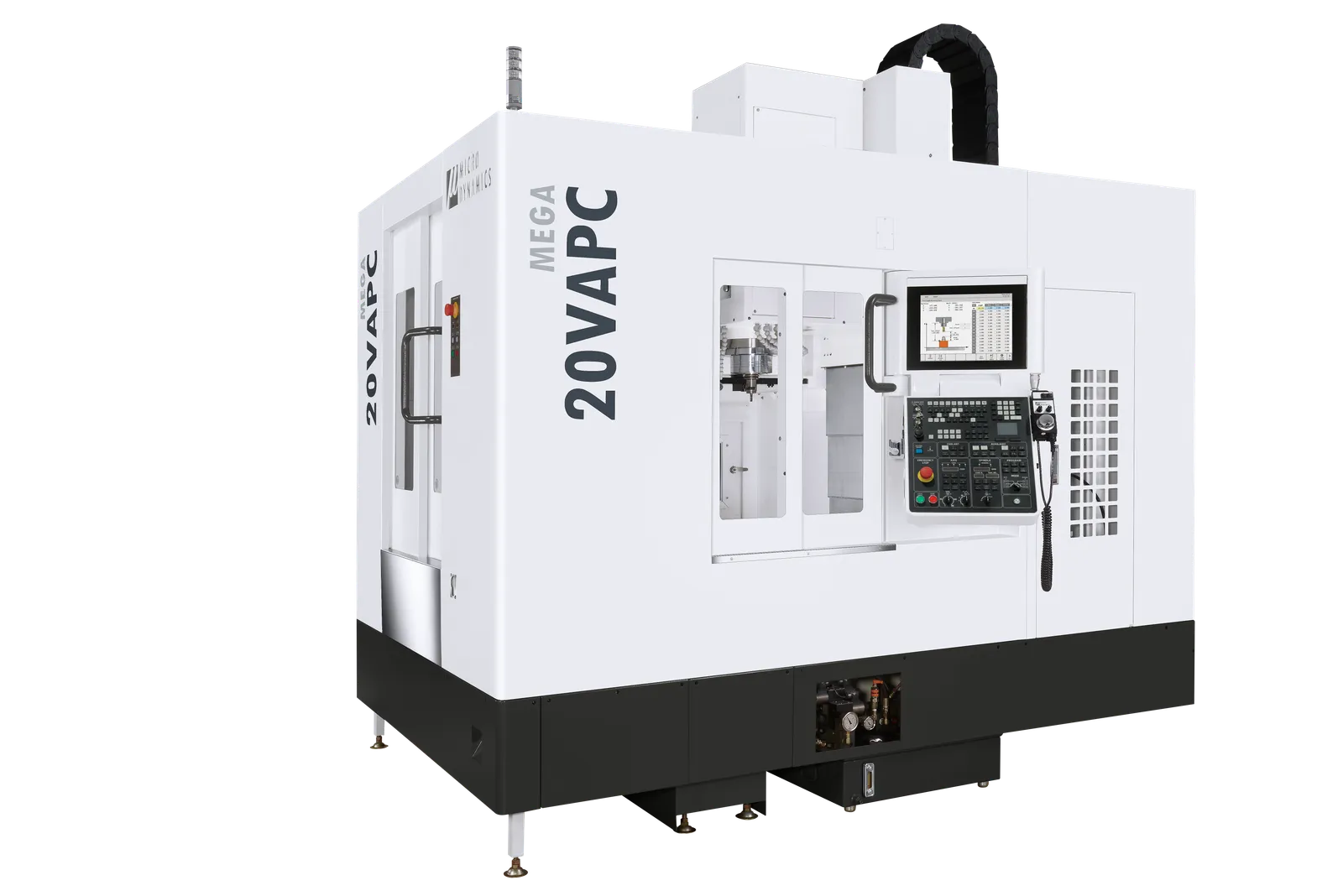

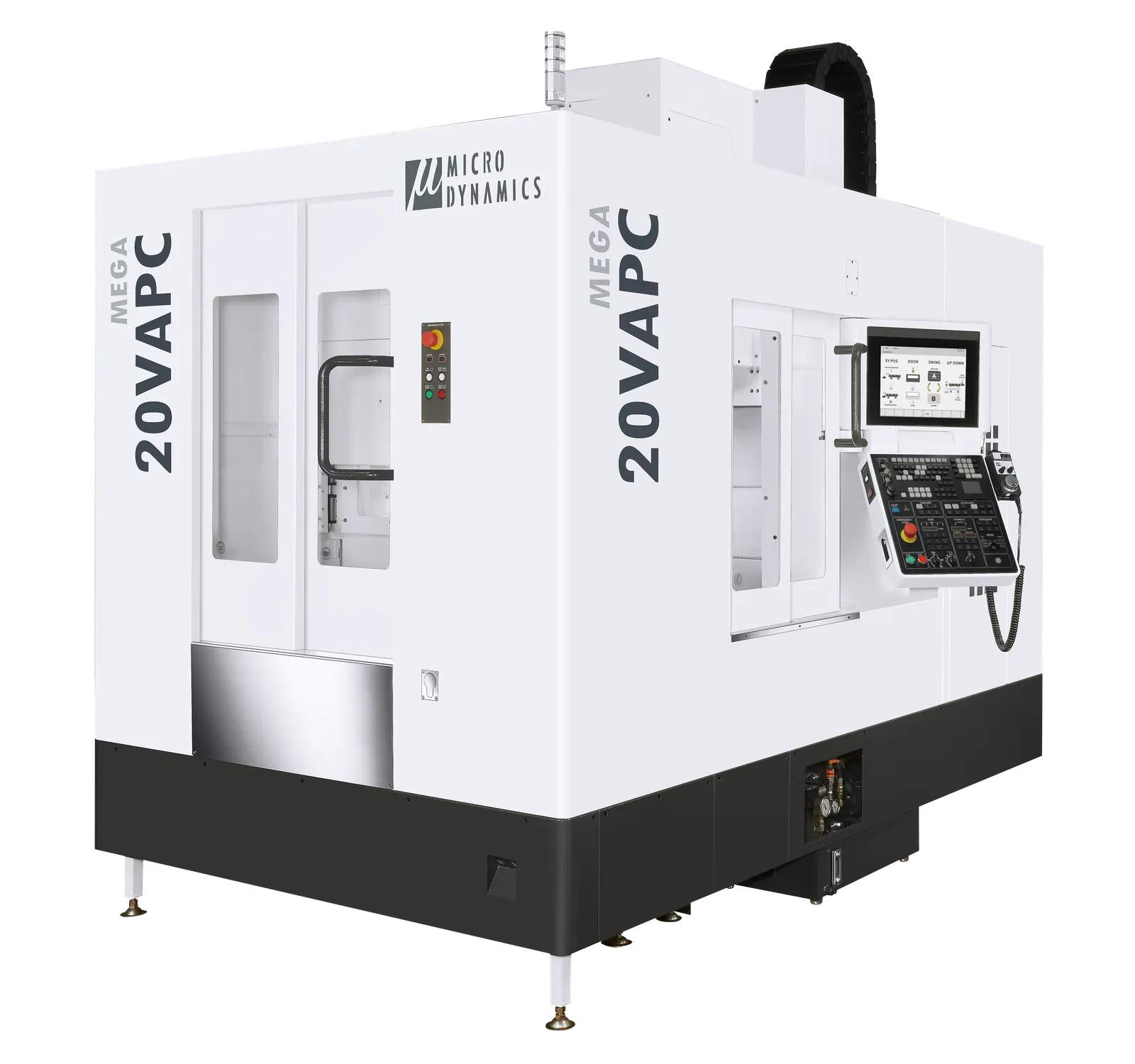

Servo-driven automatic dual pallet changer swaps parts in 8.5 seconds.
Eliminate loading downtime with the integrated dual pallet changer on the MEGA 20VAPC. While one pallet is safely cutting inside the machine, the operator loads and preps the next setup on the external station.
Provides absolute rigidity, dampens vibration during heavy metal removal, and ensures lifelong structural stability.
Proprietary dynamic error correction checks thermal expansion in real-time with ±0.1 µm resolution. No warmup cycles needed.
Dual contact spindle with hybrid ceramic bearings reduces spindle vibration, heat growth, and yields superior surface finishes.
| Axis Travel (X/Y/Z) | 23.6 / 20 / 20 in |
| Spindle | 15,000 rpm / 41.6 HP / 104 ft-lb |
| Taper | BBT40 / DIN40 / CAT40 / HSK-A63 |
| Table | 22 x 15.7 in | 441 lbs load |
| Weight | 14,110 lbs |
| X Axis | 23.6 in |
|---|---|
| Y Axis | 20 in |
| Z Axis | 20 in |
| Spindle Nose to Table Surface | 3.5 x 23.6 in |
| Spindle Center to Column Front | 21.7 in |
| Table Size | 22 x 15.7 in (2 pallets) |
|---|---|
| Max. Table Load | 8 x 0.08 in (2 pallets) kg |
| Table Height from Ground | 37.4 in |
| Spindle Taper | BBT40 / DIN40 / CAT40 / HSK-A63 |
|---|---|
| Spindle Speed | 15,000 rpm |
| Max. Power | 41.6 HP |
| Max. Cutting Torque | 104 ft-lb |
| Clamping Force | 1,200 kgf |
| Max. Speed for Rigid Tapping | 6,000 rpm |
| Rapid Feedrate - X Axis | 2047.2 in/min |
|---|---|
| Rapid Feedrate - Y Axis | 2047.2 in/min |
| Rapid Feedrate - Z Axis | 1889.8 in/min |
| Cutting Feedrate | 787.4 in/min |
| Magazine Capacity | 40 |
|---|---|
| Tool Selection | Bi-directional/Random |
| Tool Shank Type | BT40 |
| Pull Stud Type | JIS6339/DIN69872 |
| Max. Tool (Dia. x L) | Ø3 x 9.4 in |
| Without Adjacent Tool | 6 in |
| Max. Tool Weight | 15 lbs |
| Power Consumption (220V/3PH) | 30 kVA |
|---|---|
| Pneumatic Supply | 300 L/min |
| Cutting Coolant Pump Motor | 1.5 HP |
| Base Wash Pump Motor | 1.5 HP |
| CTS Pump Motor (Optional) | 4.0 HP |
| Coolant Tank Capacity | 300 L |
| Foot Print Size (W x D) | 101 x 117 in (footprint) |
| Machine Height | 115 in |
| Packing Size (W x D x H) | 126 in x 86.6 in x 100.4 in |
| Machine Net Weight | 14,110 lbs |
| Machine Gross Weight | 14,793 lbs |
| Positioning Accuracy/Full Stroke | 0.005 (VDI 3441) |
| Repeatability Accuracy | ±0.0025 |
DYPEC® (Dynamic Y-axis Predictive Error Compensation) is Micro Dynamics' proprietary real-time thermal compensation system. Embedded sensors monitor structural temperature gradients across the casting, spindle housing, and ballscrews, feeding corrections to the CNC controller every microsecond.
Thermal drift is eliminated before it affects part accuracy. No warmup cycles needed at shift start, and consistent micron-level tolerance is maintained across 24/7 production runs.
Learn About DYPEC®
Every Micro Dynamics machine is built on an FC300-grade Meehanite® casting—a premium class of gray iron with controlled graphite microstructure. The casting undergoes FEA-optimized ribbing to create a high-rigidity base that absorbs cutting vibration.
Superior vibration damping for finer surface finishes, thermal stability to prevent geometric drift, and long-term structural integrity throughout decades of heavy use.
Explore Casting Engineering
The Micro Dynamics HMI runs on a Windows-embedded 15" touchscreen console powered by Mitsubishi M830VW CNC control. Combines conversational programming, Renishaw probing, tool data management, and real-time diagnostics.
With a 5,400-block look-ahead buffer and EtherNet/IP networked I/O, the controller executes complex multi-axis toolpaths with zero hesitation.
See the HMI in Action
The Lightning Automatic Tool Changer delivers 1.2-second tool-to-tool swap times with a bidirectional random-access carousel. A servo-driven magazine arm ensures precise tool pot positioning.
Standard with a 40-tool magazine (expandable), featuring integrated LED lighting for instant tool verification and manual control panel for diagnostics.
ATC Technology Details
Every Micro Dynamics machine is engineered around the operator. Wide double doors provide unobstructed access for fast part loading. The optimized table height of 37.4 in minimizes operator strain during extended shifts.
Full chip enclosure with safety interlock, centralized coolant and air gun stations, and intuitive control panel placement for a fatigue-reducing workflow.
Ergonomic Design Philosophy
The direct-drive built-in spindle delivers 15,000 RPM with 41.6 HP peak power and 104 ft-lb cutting torque. The motor is thermally isolated from the spindle housing, eliminating heat transfer that causes Z-axis growth in belt-driven designs.
Equipped with hybrid ceramic bearings (2.8 in mm inner diameter) and dual-contact 40-taper tool clamping (1,200 kgf), the spindle achieves superior surface finishes at high RPM while maintaining rigid heavy cutting capability.
Spindle Engineering

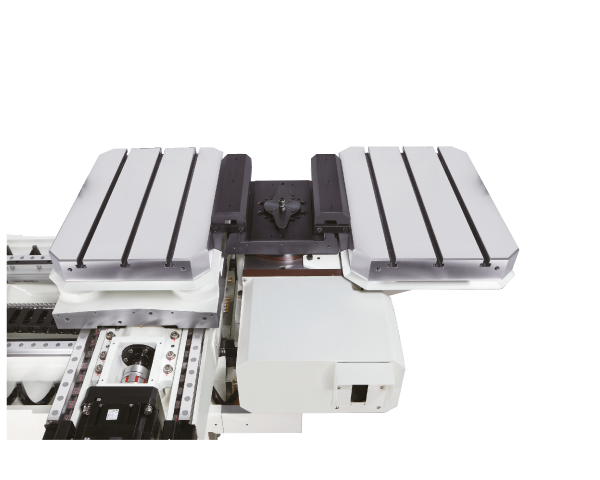

The automatic dual-pallet changer swaps workpieces in just 8.5 seconds, keeping the spindle cutting continuously while the operator loads parts on the idle pallet.
Two independent 22 x 15.7 in pallets with 441 lbs load capacity each allow mixed-part production without re-fixturing.
APC System DetailsContact our engineering sales team to configure fixtures, spindle upgrades, and integration options for your shop floor.
