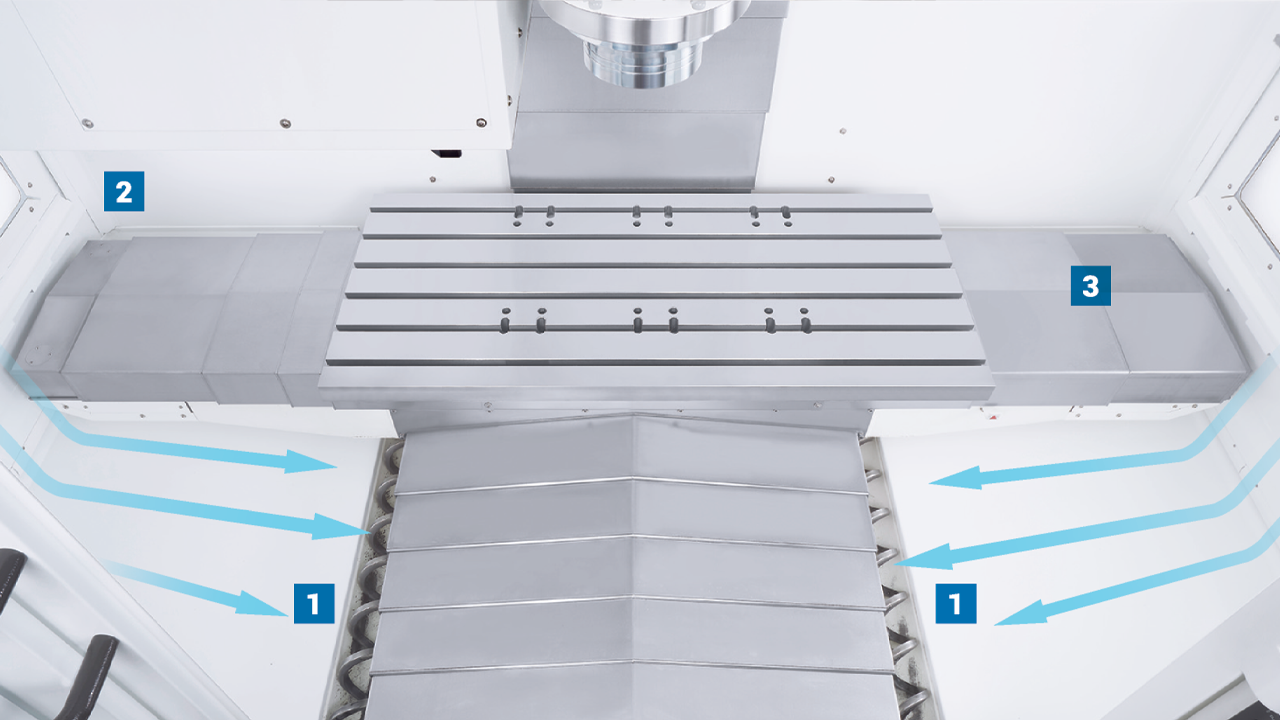

Full Chip Enclosure
Sealed work area directs chips and coolant into the evacuation path with no blind corners.
The chip management system includes base wash, dual augers and chip conveyor, virtually eliminating chip build-up. Coolant falls along the inside perimeter flushing chips down to the dual augers which evacuate chips to the front conveyor. All mounting hardware is bolted from the outside leaving a clean surface for chip evacuation.
Large-flow coolant pump for cutting as well as base wash. No blind angles inside the chip enclosure. Easy access to each filter mesh and chip tank.

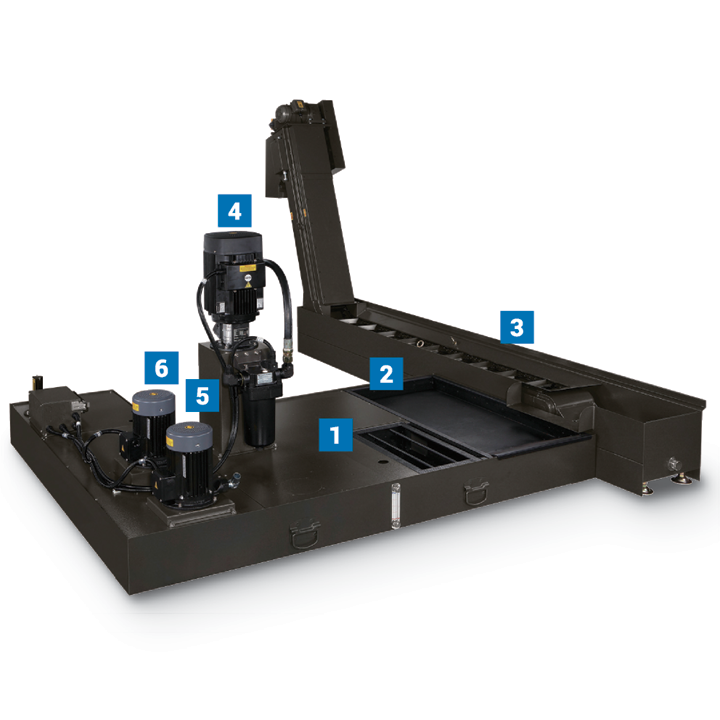

Modular coolant and chip handling designed for continuous production.
Sealed work area directs chips and coolant into the evacuation path with no blind corners.

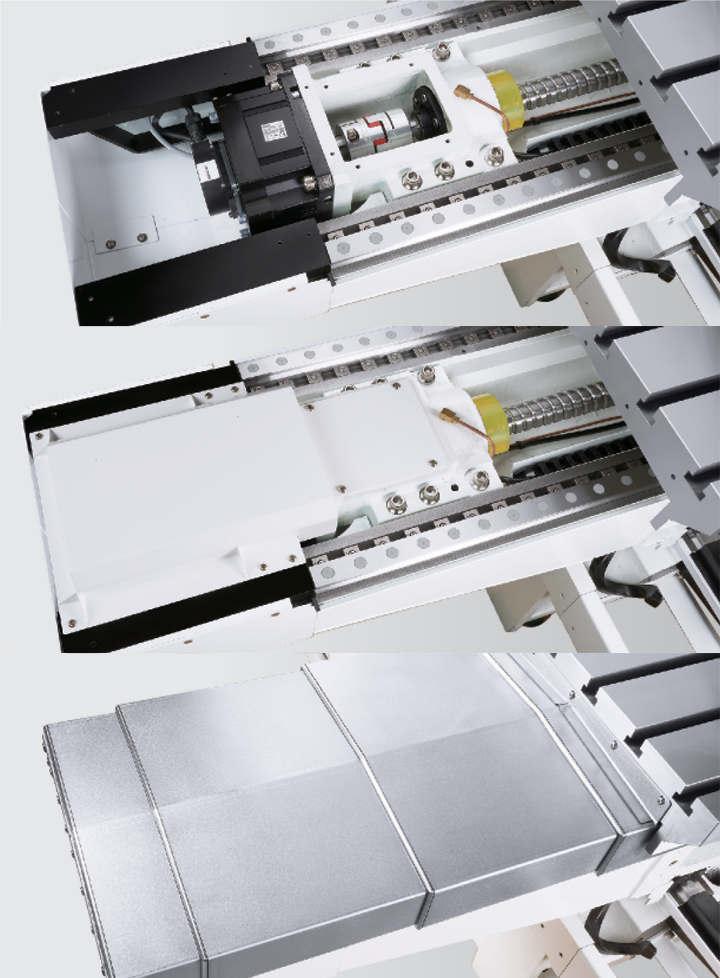

Bottom cover, top cover, and telescopic cover protect linear guides and ball screws from chips and contaminants.

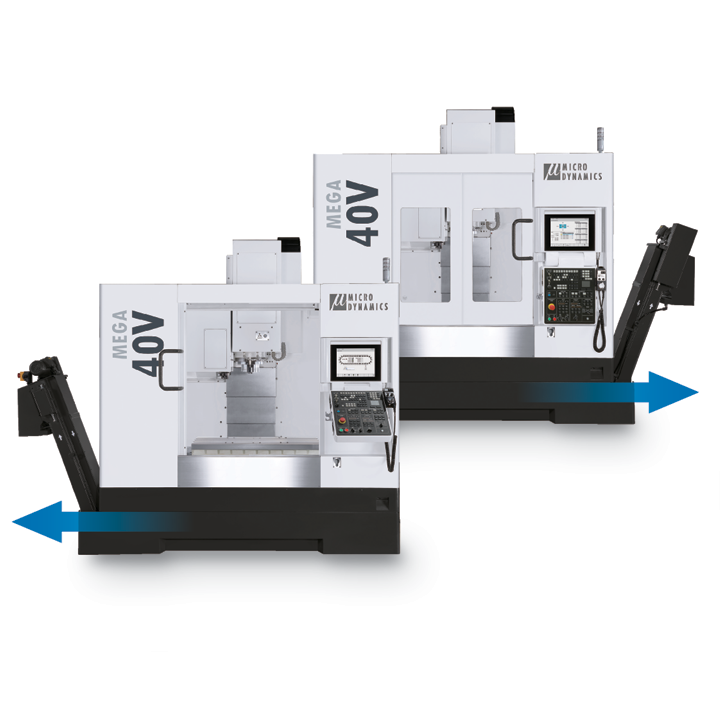

Front conveyor can reverse to clear jams and keep production moving with minimal downtime.

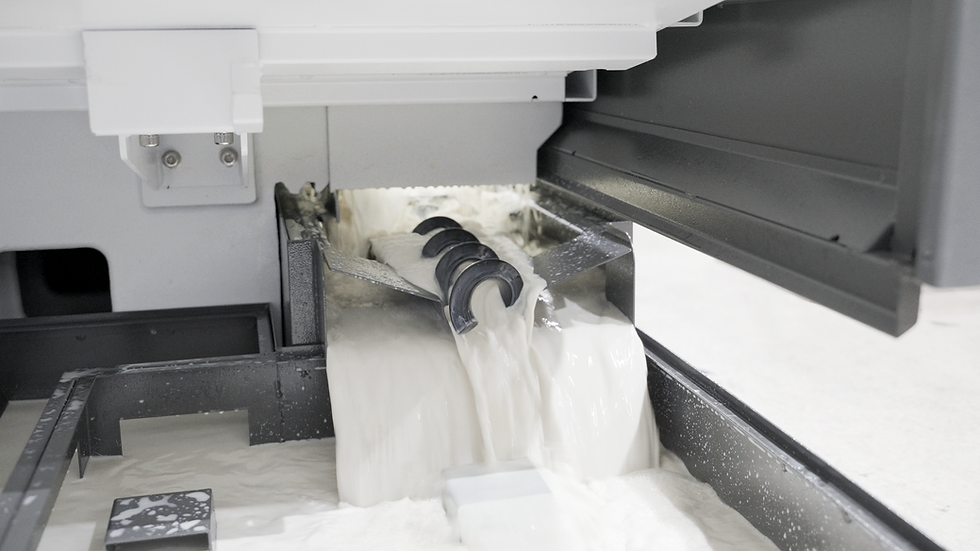

Screw conveyors under the enclosure move chips forward to the main conveyor for continuous evacuation.
Tell us about your parts and production goals. We'll match the right Micro Dynamics machine and options to your application.
