Simultaneous 5-axis heavy-duty trunnion machining for complex aerospace alloys.

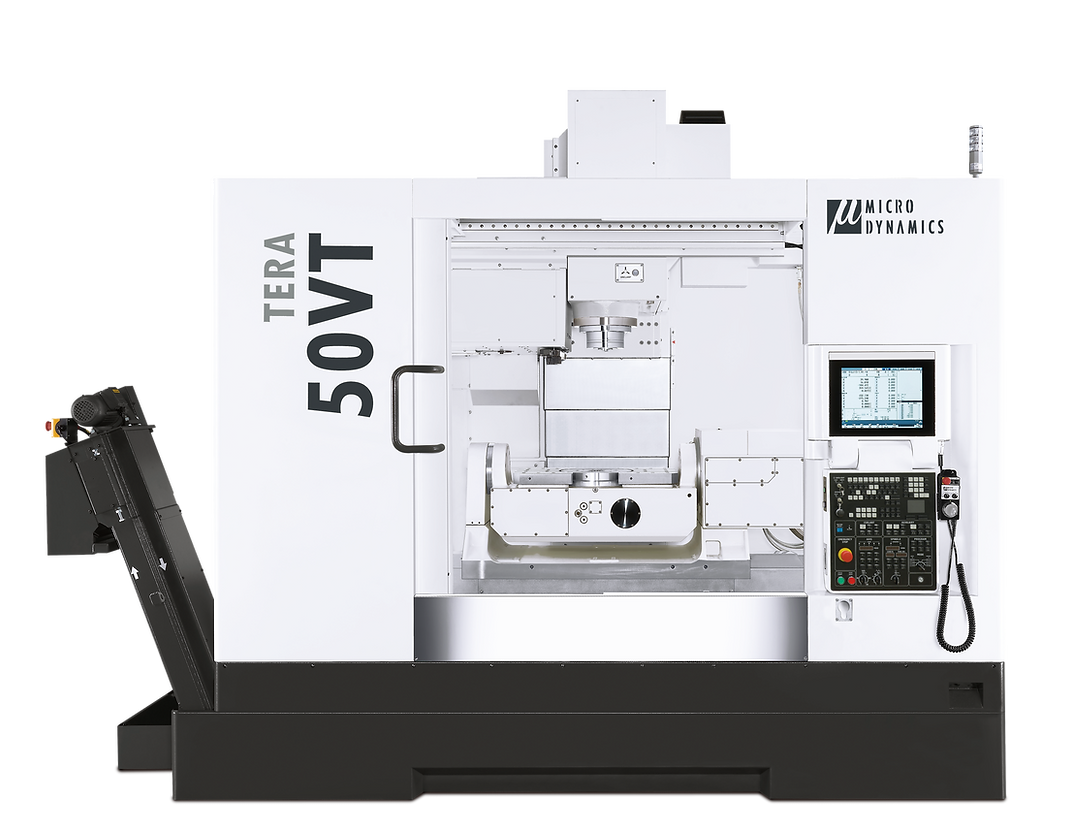

Equipped with a Roller Gear Cam trunnion table and hydraulic clamping brakes, the TERA 50VT brings robust 5-axis capabilities to larger turbine blades, complex mold cores, and structural automotive castings.
Provides absolute rigidity, dampens vibration during heavy metal removal, and ensures lifelong structural stability.
Proprietary dynamic error correction checks thermal expansion in real-time with ±0.1 µm resolution. No warmup cycles needed.
Dual contact spindle with hybrid ceramic bearings reduces spindle vibration, heat growth, and yields superior surface finishes.
| Axis Travel (X/Y/Z) | 38 / 28 / 19.7 in |
| Spindle | 15,000 rpm / 41.6 HP / 104 ft-lb |
| Taper | BBT40 / DIN40 / CAT40 / HSK-A63 |
| Table | 28.3 x 15.7 in | 551 lbs load |
| Weight | 21,076 lbs |
