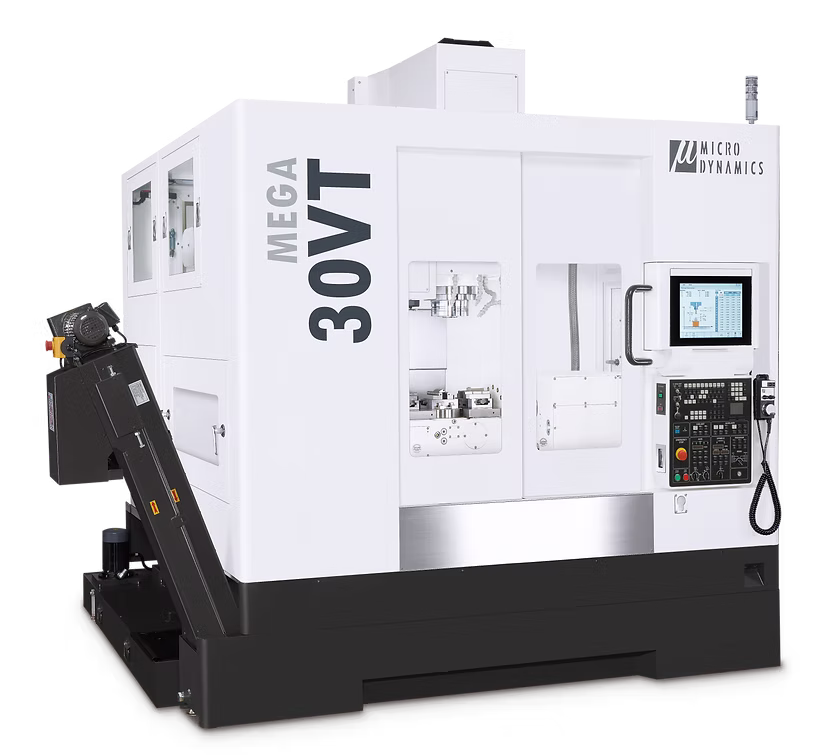

Simultaneous 5-axis vertical machining center with roller-gear trunnion table.
.avif)
Featuring a rigid tilting/rotating trunnion table, the MEGA 30VT allows job shops to process complex multi-sided parts in a single setup (done-in-one). Ideal for medical implants and compact aerospace fittings.
Provides absolute rigidity, dampens vibration during heavy metal removal, and ensures lifelong structural stability.
Proprietary dynamic error correction checks thermal expansion in real-time with ±0.1 µm resolution. No warmup cycles needed.
Dual contact spindle with hybrid ceramic bearings reduces spindle vibration, heat growth, and yields superior surface finishes.
| Axis Travel (X/Y/Z) | 30.7 / 20 / 17.4 in |
| Spindle | 15,000 rpm / 41.6 HP / 104 ft-lb |
| Taper | BBT40 / DIN40 / CAT40 / HSK-A63 |
| Table | 19.7 x 12 in | 331 lbs load |
| Weight | 13,999 lbs |
