Spindle Power

Powerful integrated 40 taper and 50 taper dual-contact spindles (BBT / CAT / DIN / HSK). Standard 15,000 rpm with permanent grease; optional 20,000 and 24,000 rpm with air-oil lubrication.

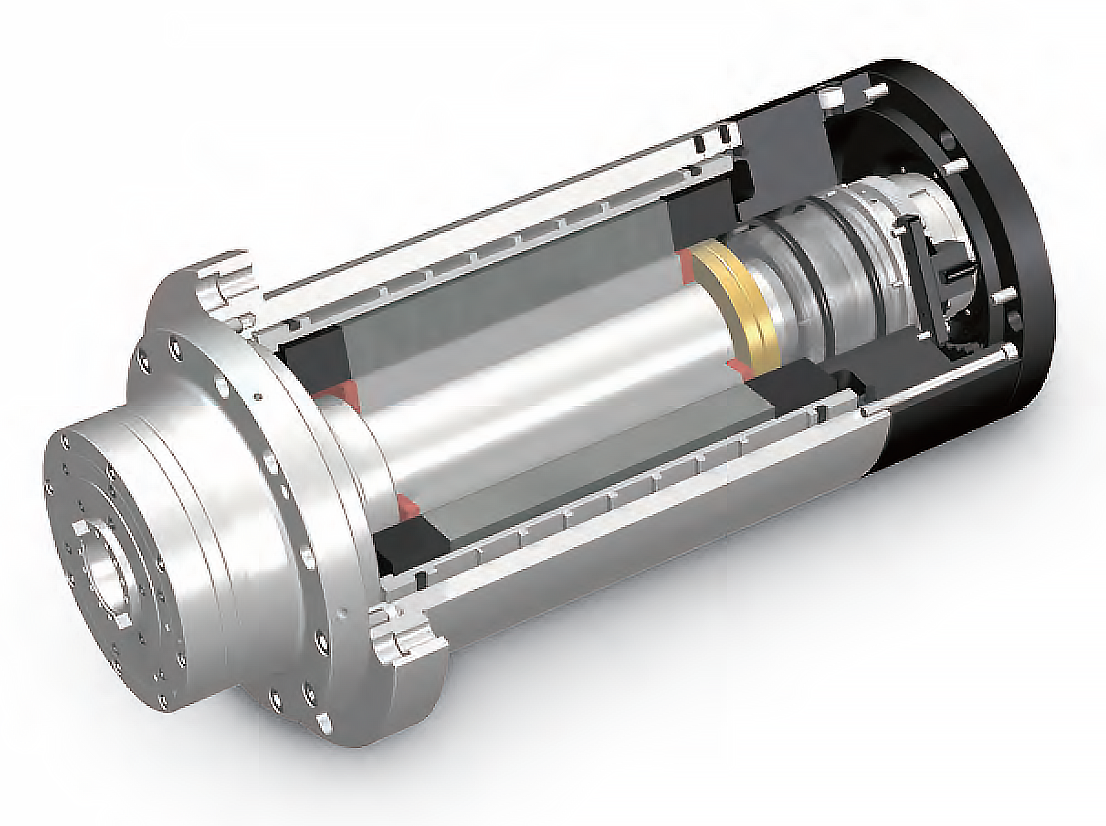

Micro Dynamics built-in spindle - catalog overview
15,000 rpm standard 20K / 24K optional Dual contact

Integrated Motor, Production-Ready

ATE motor (German made) is integrated with hybrid ceramic angular contact bearings. The Micro Dynamics drawbar has been rigorously tested to sustain more than 2 million cycles.

  • CTS (Coolant Through Spindle) designed to sustain up to 100 bar (1,500 psi)
  • CTS preparation is standard equipment; CTS system is optional
  • For all applications - from heavy duty to high-speed machining
  • Highest productivity under any conditions and complexities

Multipurpose Applications

One spindle platform covers heavy cutting, high-speed milling, high-resolution finishing, and high-speed tapping.

Powerful

Powerful

Heavy cutting with high torque delivery for aggressive material removal.

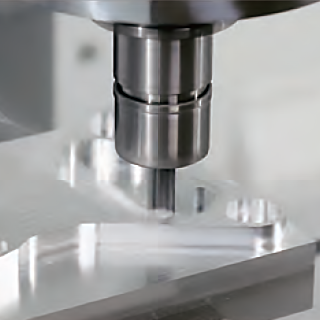

Fast

Fast

High-speed milling with rapid acceleration and stable thermal behavior.

Accurate

Accurate

High-resolution cutting with hybrid ceramic bearings and dual-contact tooling.

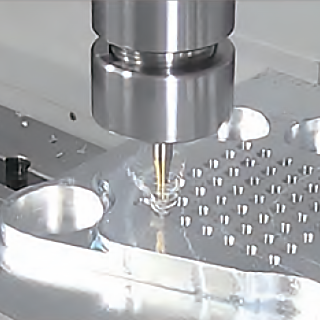

Productive

Productive

High-speed tapping and continuous production with optional CTS / ATS.

Spindle Specifications

40 taper dual contact (BBT / CAT / DIN / HSK-63A) and 50 taper dual contact (BBT / CAT / DIN / HSK-100A).

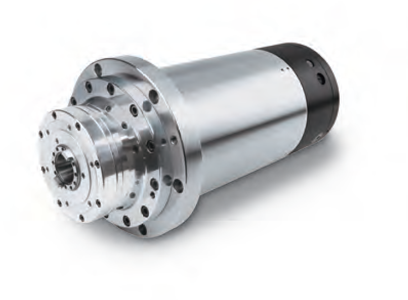

15,000 rpm built-in spindle

40 Taper - 15,000 rpm (Standard)

Standard
Speed15,000 rpm
Power41.6 HP
Torque104 ft-lb
Acc. 0–12K1.5 sec
Dec. 12K–01.8 sec

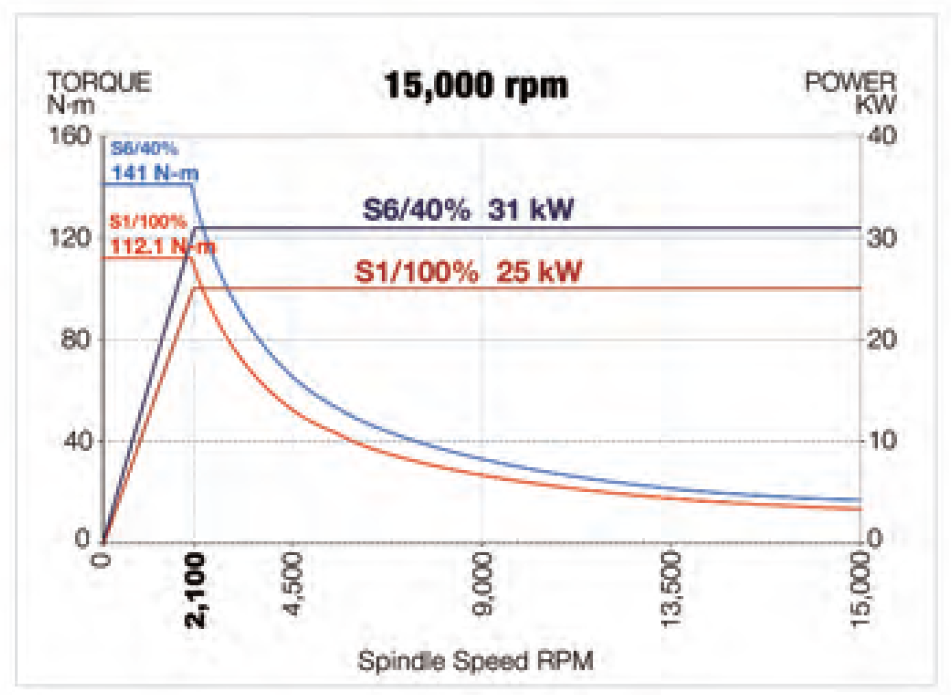

15,000 rpm torque and power diagram

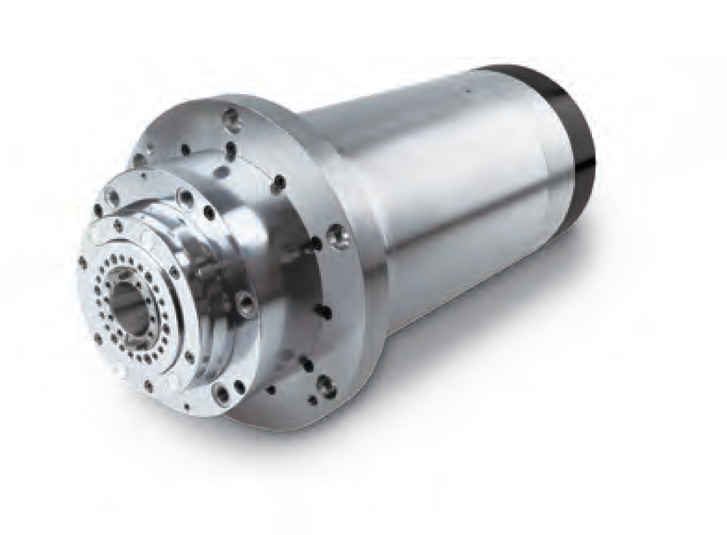

20,000 rpm built-in spindle

40 Taper - 20,000 rpm (Option)

Option
Speed20,000 rpm
Power46.9 HP
Torque88 ft-lb
Acc. 0–12K1.5 sec
Dec. 12K–01.8 sec

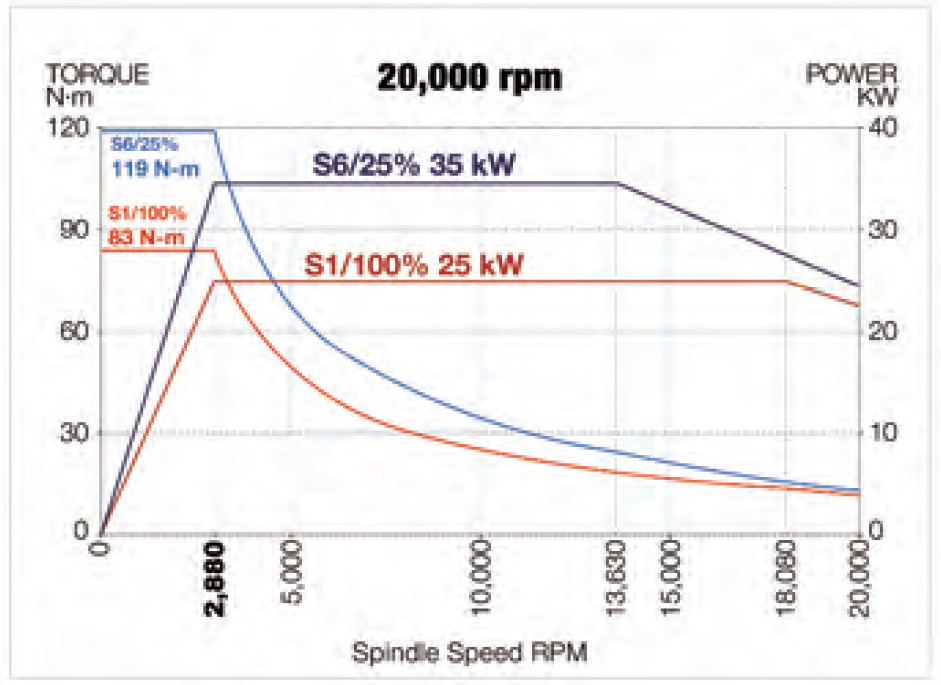

20,000 rpm torque and power diagram
24,000 rpm built-in spindle

40 Taper - 24,000 rpm (Option)

Option · Standard HSK-63A
Speed24,000 rpm
Power46.9 HP
Torque88 ft-lb
Acc. 0–15K1.7 sec
Dec. 15K–02.0 sec

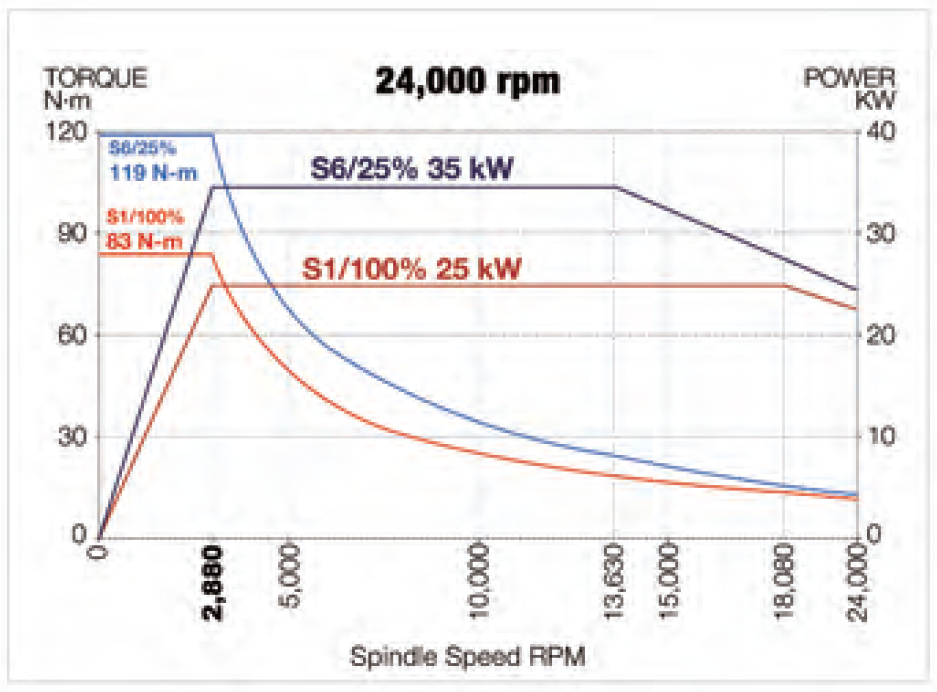

24,000 rpm torque and power diagram

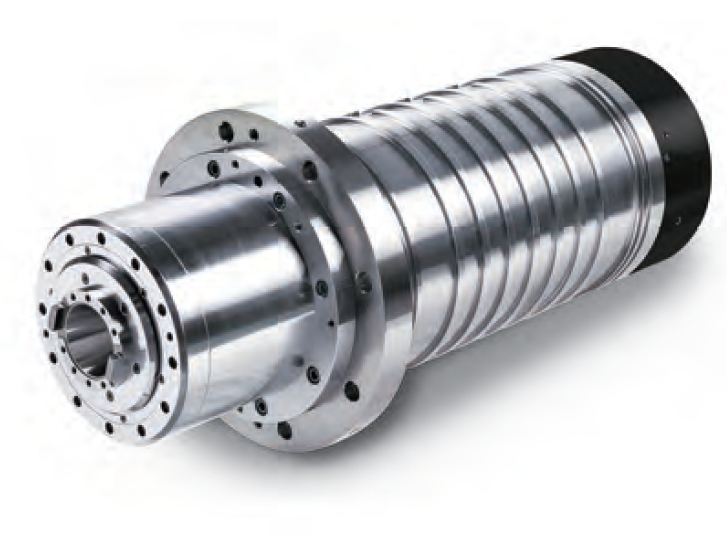

12,000 rpm 50 taper built-in spindle

50 Taper - 12,000 rpm (Standard)

Standard
Speed12,000 rpm
Power45.6 HP
Torque420 ft-lb
Acc. 0–8K1.8 sec
Dec. 8K–02.5 sec

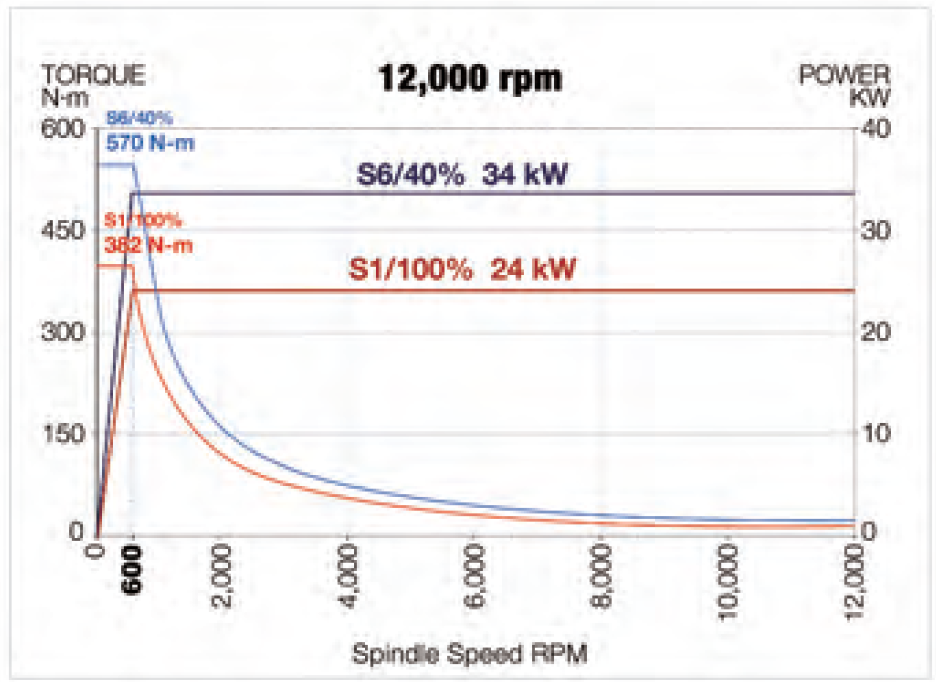

12,000 rpm torque and power diagram

Maximum Productivity & Serviceability

All Micro Dynamics spindles use off-the-shelf standard bearings that can be replaced without removing the rotor - simple maintenance, low rebuild cost, short service time.

Service Door

Service Door

Headstock service door to facilitate access is standard on all models.

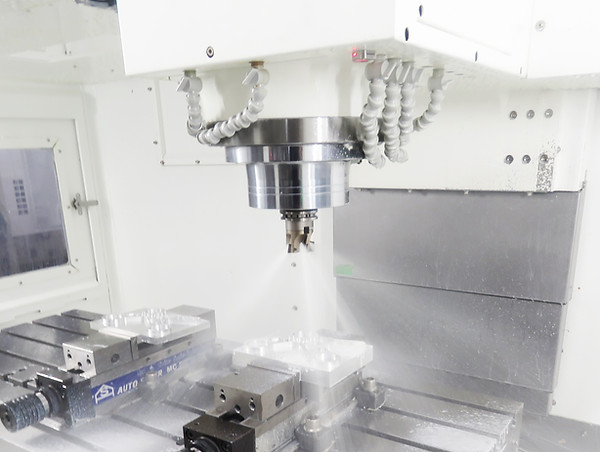

Coolant Through Spindle (Opt)

Coolant Through Spindle (Opt)

  • 20-Bar (290 psi) CTS + ATS
  • 40-Bar (580 psi) CTS + ATS
  • 70-Bar (1,000 psi) CTS + ATS
  • Deublin Pop-Off Type

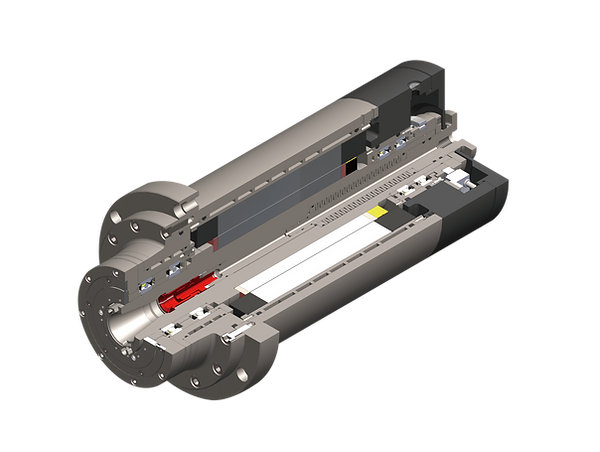

Easy Bearing Replacement

Easy Bearing Replacement

Shelf-standard bearings replaceable without removing the rotor. Rebuild costs stay low and service time stays short.
