Oversized travel envelope paired with high speed inline spindle precision.

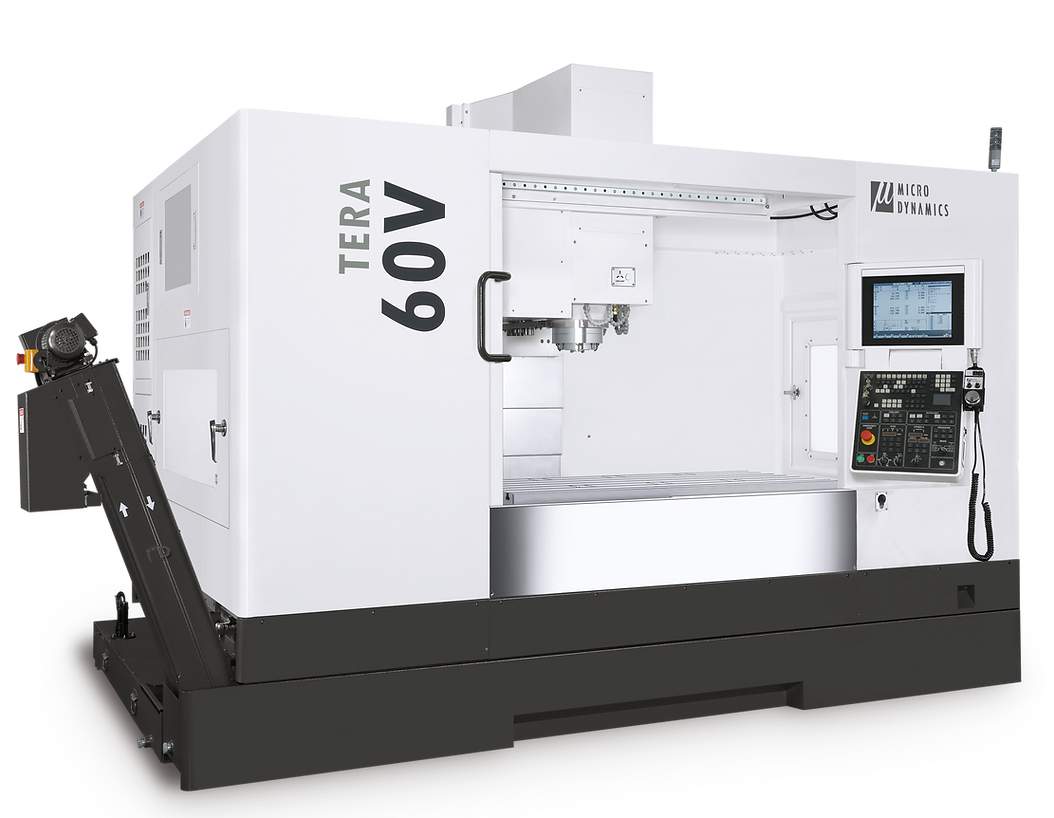

Featuring a 60 in X-axis and a 4,409 lbs load capacity, the TERA 60V enables job shops to run massive plates or stage multiple setups side-by-side to minimize down-time and maximize production output.
Provides absolute rigidity, dampens vibration during heavy metal removal, and ensures lifelong structural stability.
Proprietary dynamic error correction checks thermal expansion in real-time with ±0.1 µm resolution. No warmup cycles needed.
Dual contact spindle with hybrid ceramic bearings reduces spindle vibration, heat growth, and yields superior surface finishes.
| Axis Travel (X/Y/Z) | 60 / 28 / 25 in |
| Spindle | 15,000 rpm / 41.6 HP / 104 ft-lb |
| Taper | BBT40 / DIN40 / CAT40 / HSK-A63 |
| Table | 68 x 27.6 in | 4,409 lbs load |
| Weight | 20,216 lbs |
