Extended axis travels with high table load capacity for large molds and parts.

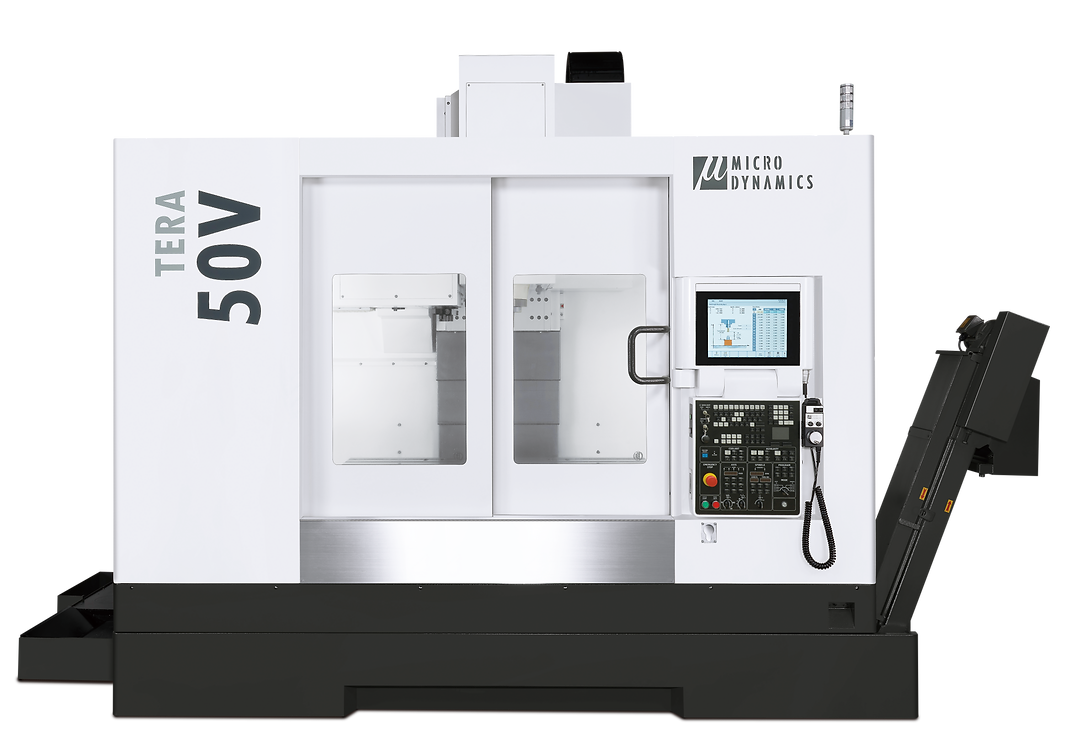

Offering a massive 50 in X-travel and a solid 3,307 lbs table capacity, the TERA 50V is a structural workhorse built to tackle heavy molds, large steel plates, and aerospace structural segments without breaking a sweat.
Provides absolute rigidity, dampens vibration during heavy metal removal, and ensures lifelong structural stability.
Proprietary dynamic error correction checks thermal expansion in real-time with ±0.1 µm resolution. No warmup cycles needed.
Dual contact spindle with hybrid ceramic bearings reduces spindle vibration, heat growth, and yields superior surface finishes.
| Axis Travel (X/Y/Z) | 50 / 28 / 25 in |
| Spindle | 15,000 rpm / 41.6 HP / 104 ft-lb |
| Taper | BBT40 / DIN40 / CAT40 / HSK-A63 |
| Table | 56 x 27.6 in | 3,307 lbs load |
| Weight | 18,960 lbs |
