Heavy-duty boxway design engineered for high torque metal removal and structural cutting.

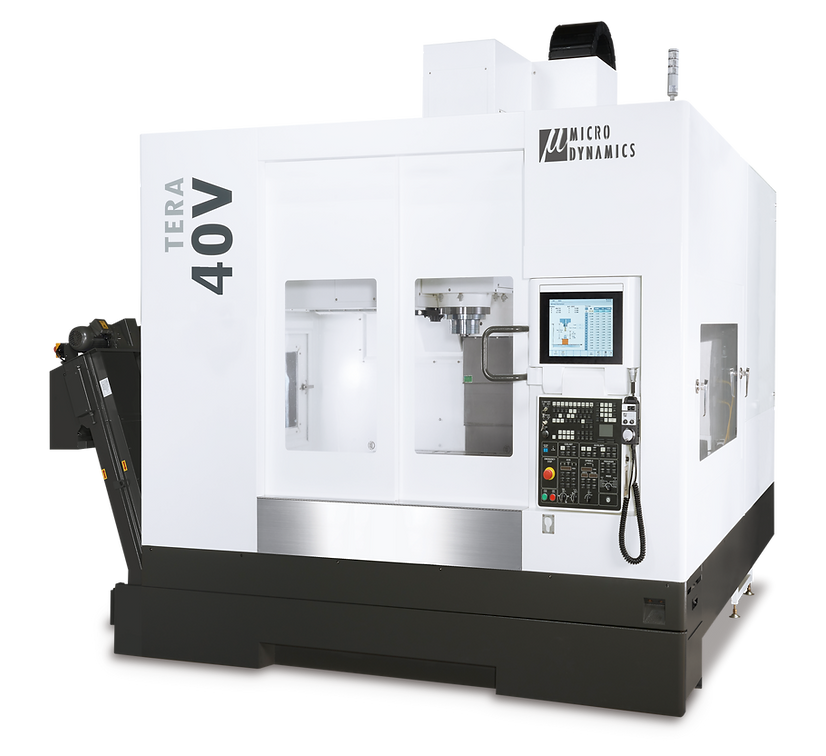

The TERA 40V incorporates an extra-wide column structure and cross-ribbed frame to damp vibrations during aggressive cuts. Perfect for structural aerospace components and tough titanium alloys.
Provides absolute rigidity, dampens vibration during heavy metal removal, and ensures lifelong structural stability.
Proprietary dynamic error correction checks thermal expansion in real-time with ±0.1 µm resolution. No warmup cycles needed.
Dual contact spindle with hybrid ceramic bearings reduces spindle vibration, heat growth, and yields superior surface finishes.
| Axis Travel (X/Y/Z) | 40 / 28 / 25 in |
| Spindle | 15,000 rpm / 41.6 HP / 104 ft-lb |
| Taper | BBT40 / DIN40 / CAT40 / HSK-A63 |
| Table | 44 x 27.6 in | 3,307 lbs load |
| Weight | 17,725 lbs |
