High-production workhorse optimized for speed, precision, and continuous cutting.

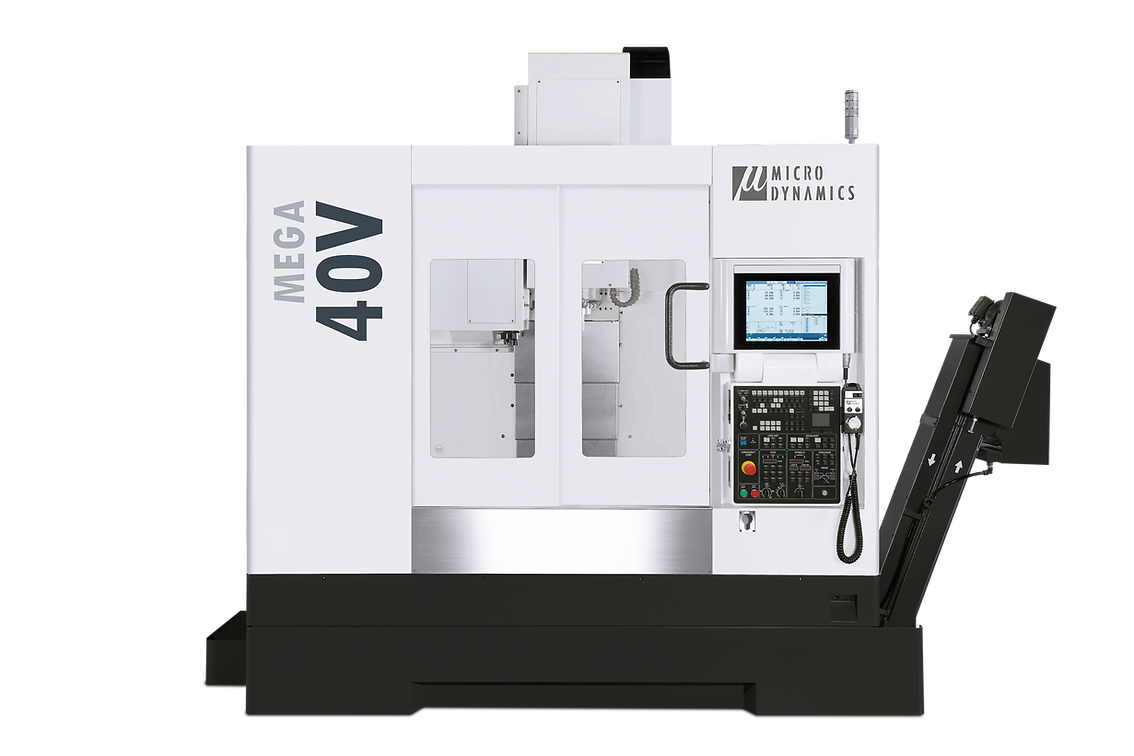

The MEGA 40V expands your work zone with a 40 in X-axis travel, while maintaining identical rigidity and built-in spindle advantages of the MEGA series. Perfect for larger molds and multi-part fixtures.
Provides absolute rigidity, dampens vibration during heavy metal removal, and ensures lifelong structural stability.
Proprietary dynamic error correction checks thermal expansion in real-time with ±0.1 µm resolution. No warmup cycles needed.
Dual contact spindle with hybrid ceramic bearings reduces spindle vibration, heat growth, and yields superior surface finishes.
| Axis Travel (X/Y/Z) | 40 / 20 / 20 in |
| Spindle | 15,000 rpm / 41.6 HP / 104 ft-lb |
| Taper | BBT40 / DIN40 / CAT40 / HSK-A63 |
| Table | 44 x 19.7 in | 2,205 lbs load |
| Weight | 12,368 lbs |
