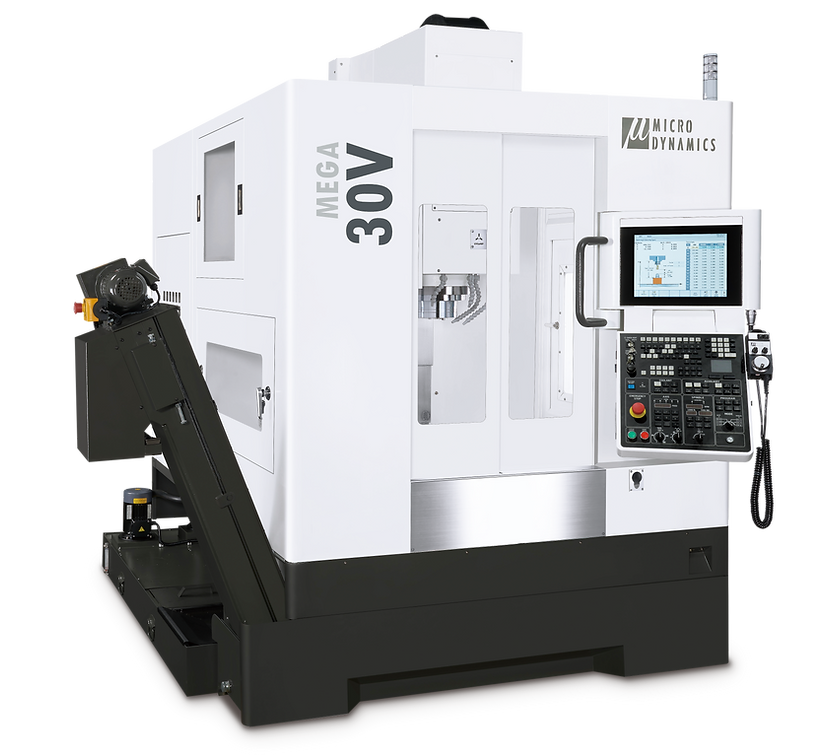

Tiny But Mighty! MEGA 30V is the most compact and minimal footprint vertical machining center.
Built on a heavy FC300 casting base, the MEGA 30V is engineered to fit easily into any shop floor while delivering heavy cutting power, high thermal stability, and maximum spindle uptime.
Provides absolute rigidity, dampens vibration during heavy metal removal, and ensures lifelong structural stability.
Proprietary dynamic error correction checks thermal expansion in real-time with ±0.1 µm resolution. No warmup cycles needed.
Dual contact spindle with hybrid ceramic bearings reduces spindle vibration, heat growth, and yields superior surface finishes.
| Axis Travel (X/Y/Z) | 30 / 20 / 20 in |
| Spindle | 15,000 rpm / 41.6 HP / 104 ft-lb |
| Taper | BBT40 / DIN40 / CAT40 / HSK-A63 |
| Table | 34 x 19.7 in | 1,764 lbs load |
| Weight | 10,781 lbs |
