Servo-driven automatic dual pallet changer swaps parts in 8.5 seconds.

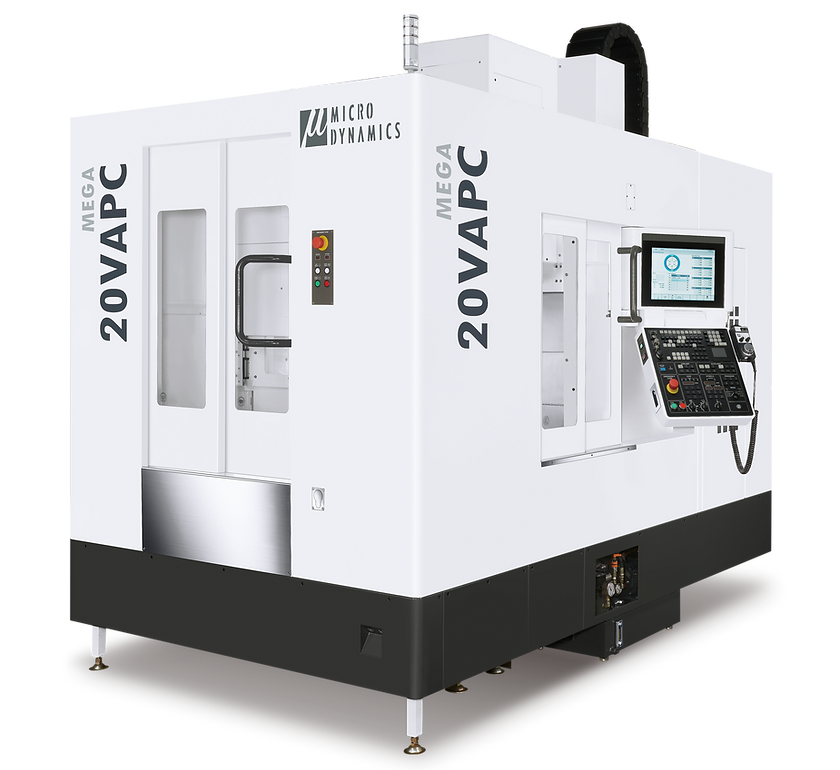

Eliminate loading downtime with the integrated dual pallet changer on the MEGA 20VAPC. While one pallet is safely cutting inside the machine, the operator loads and preps the next setup on the external station.
Provides absolute rigidity, dampens vibration during heavy metal removal, and ensures lifelong structural stability.
Proprietary dynamic error correction checks thermal expansion in real-time with ±0.1 µm resolution. No warmup cycles needed.
Dual contact spindle with hybrid ceramic bearings reduces spindle vibration, heat growth, and yields superior surface finishes.
| Axis Travel (X/Y/Z) | 23.6 / 20 / 20 in |
| Spindle | 15,000 rpm / 41.6 HP / 104 ft-lb |
| Taper | BBT40 / DIN40 / CAT40 / HSK-A63 |
| Table | 22 x 15.7 in | 441 lbs load |
| Weight | 14,110 lbs |
