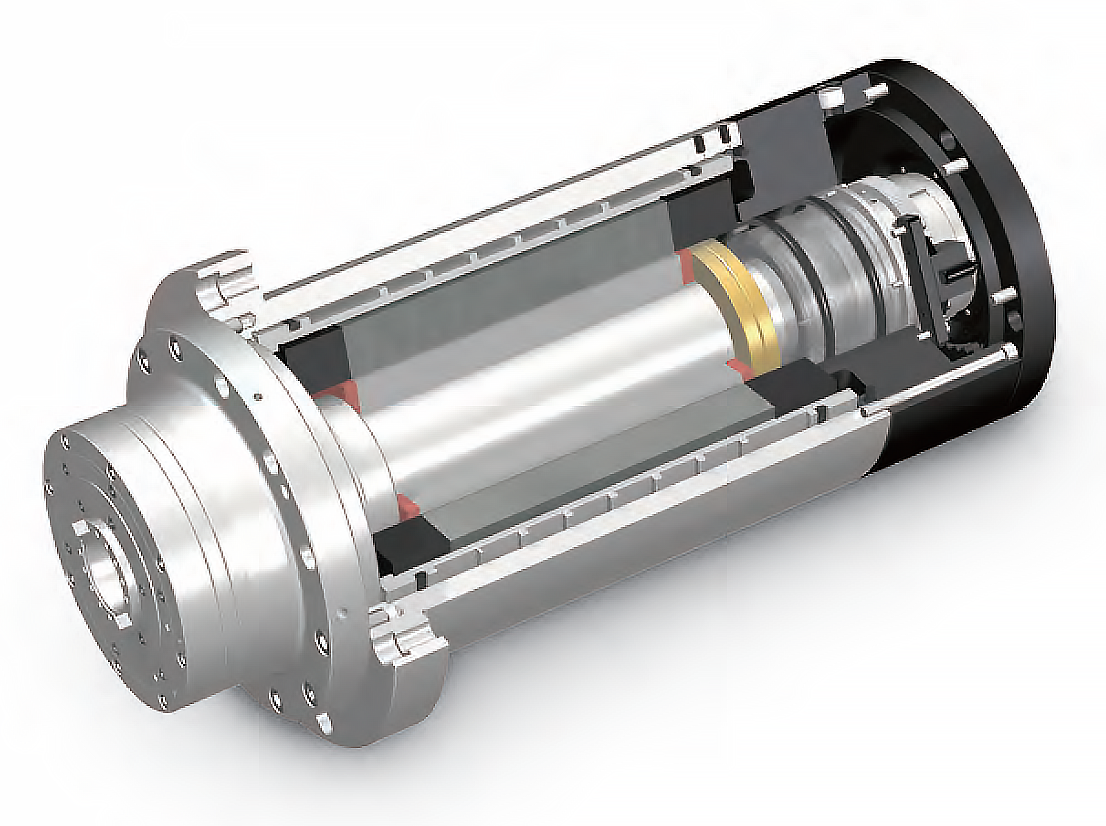

BUILT-IN SPINDLE

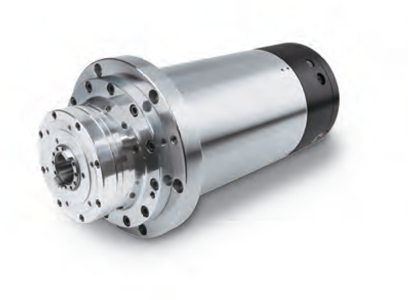

Micro Dynamics MEGA/TERA series standard with 15,000 rpm built-in-spindle. Spindle motor integrated with hybrid ceramic angular contact bearings. Drawbar has been rigorously tested to sustain more than 2 million cycles. For all applications, from heavy duty to high speed machining. Highest productivity under any conditions and complexities.

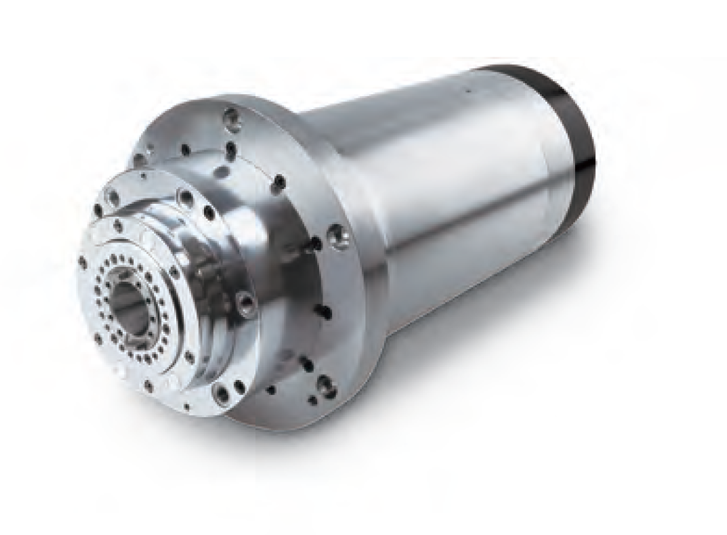

Micro Dynamics optional 18,000 rpm / 20,000 rpm spindle, available on all models. 20,000 rpm spindle delivers 35 kW of power and 119 Nm of torque. This allows for fine finishes while still achieving high material removal rates in a wide range of material types.

40 Taper Dual Contact

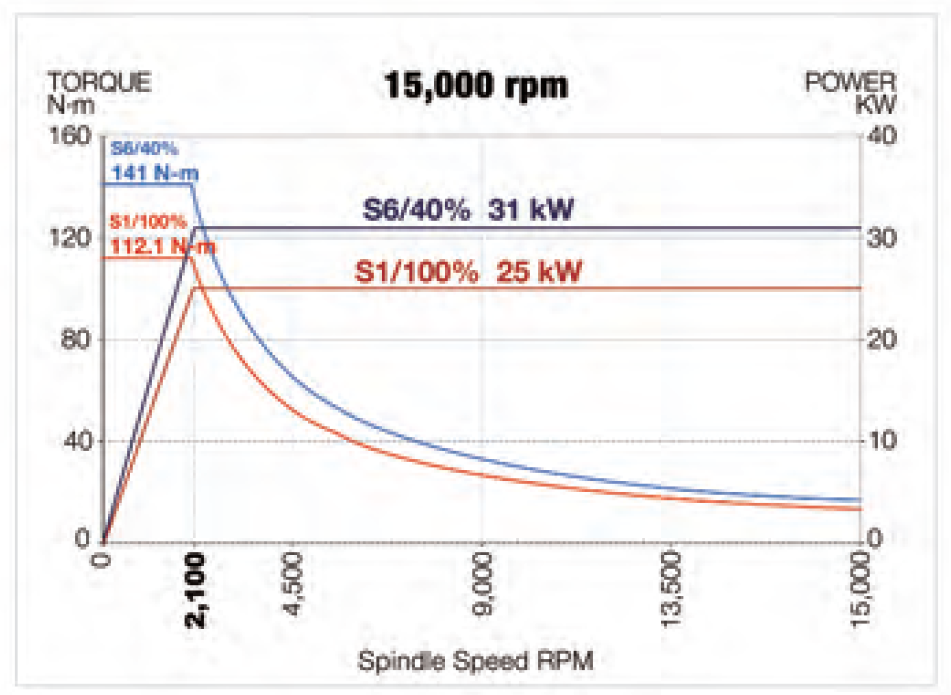

15,000 rpm (STD)


- 31 kW (41 hp) Power
- 141 Nm (104 ft-lbf) Torque
- 1,200 kgf (2,645 lbf)
Clamping force
- 1.5 sec Acc. 0~12K
- 1.8 sec Dec. 12K~0


18,000 rpm (OPT)


- 31 kW (41 hp) Power
- 141 Nm (104 ft-lbf) Torque
- 1,200 kgf (2,645 lbf)
Clamping force
- 1.5 sec Acc. 0~12K
- 1.8 sec Dec. 12K~0

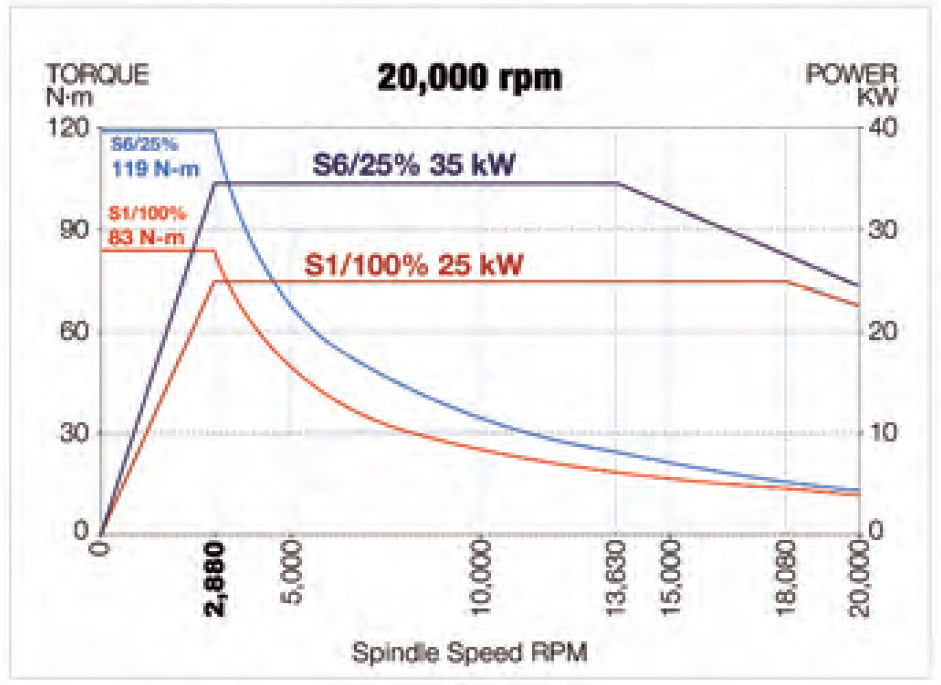

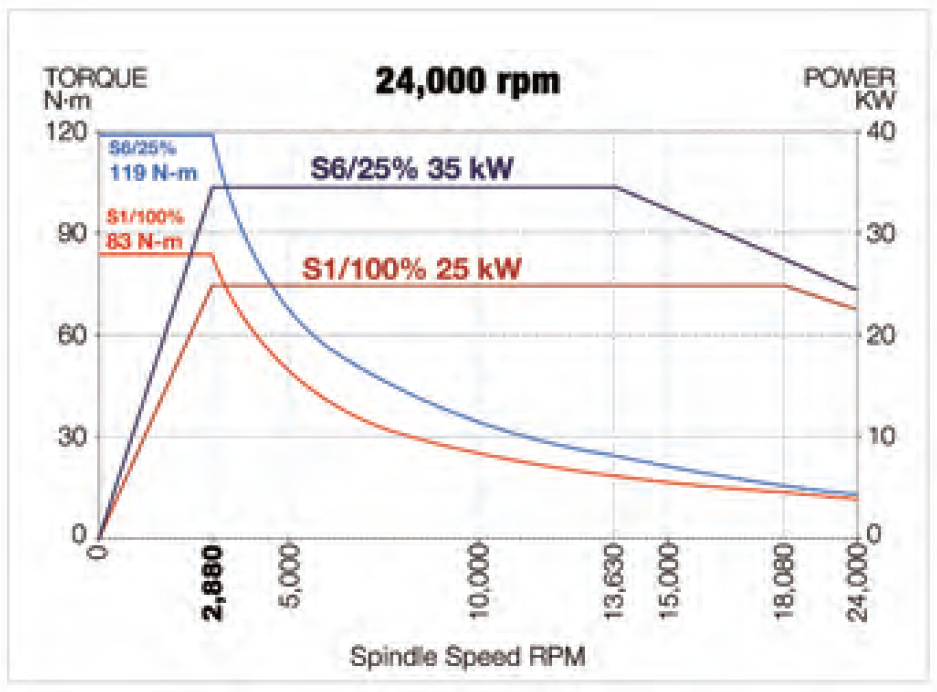

20,000 rpm (OPT)


- 35 kW (47 hp) Power
- 119 Nm (88 ft-lbf) Torque
- 1,200 kgf (2,645 lbf)
Clamping force
- 1.5 sec Acc. 0~12K
- 1.8 sec Dec. 12K~0

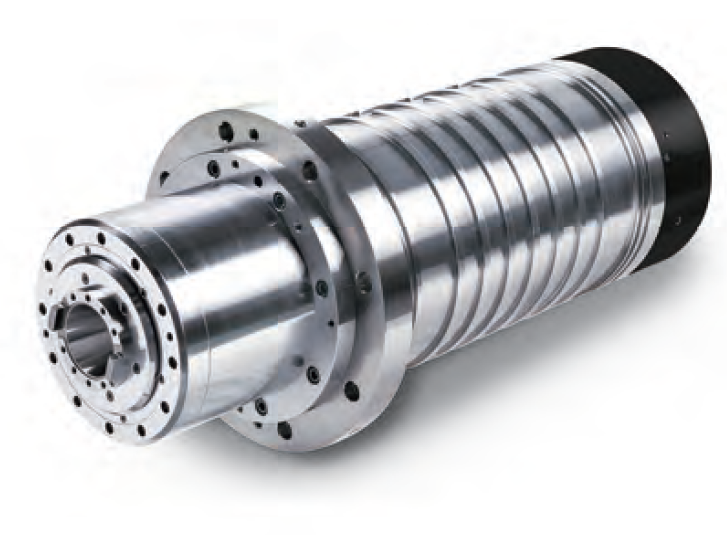

50 Taper Dual Contact

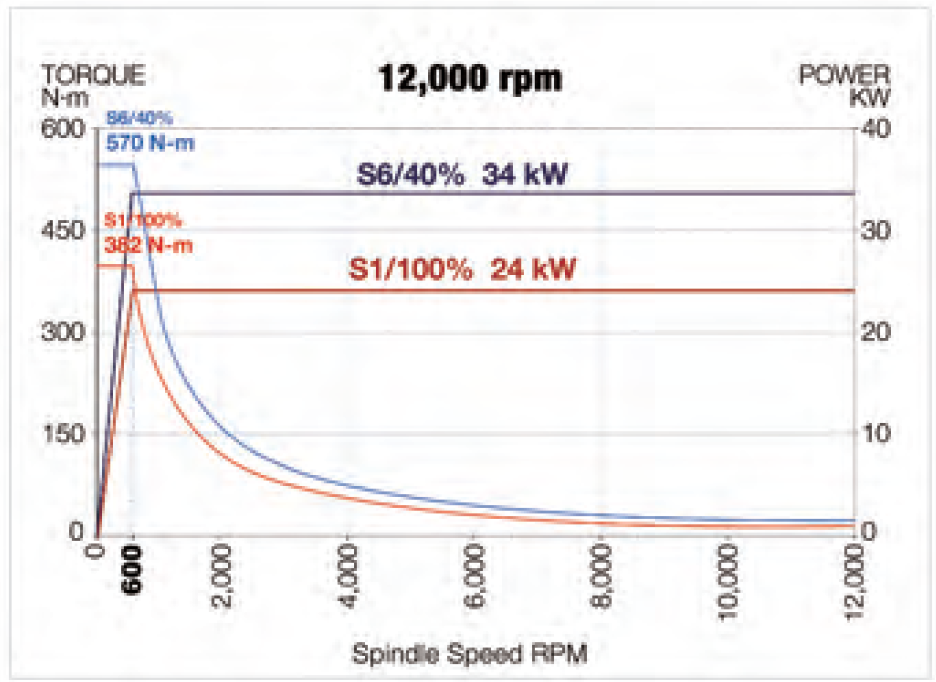

12,000 rpm (STD)


- 34 kW (45 hp) Power
- 570 Nm (420 ft-lbf) Torque
- 2,100 kgf (4,629 lbf)
Clamping force
- 1.8 sec Acc. 0~8K
- 2.5 sec Dec. 8K~0


SPINDLE TEMPERATURE RISE TEST


Steady state in a short time. Long-term high-speed operation still maintains constant & stable low temperature. Load of Spindle oil cooler: 20% ~ 30%.
COMPARISON OF C-FRAME
MACHINE STRUCTURE

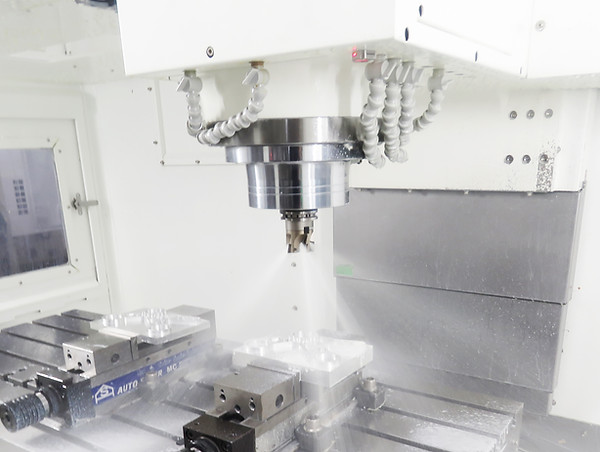

COOLANT THROUGH SPINDLE (OPT)

- 20-Bar (290 psi) CTS +
ATS (Deublin Pop-Off Type)
- 40-Bar (580 psi) CTS +
ATS (Deublin Pop-Off Type)
- 70-Bar (1,000 psi) CTS +
ATS (Deublin Pop-Off Type)
CTS PREPARATION

(WITHOUT ROTARY UNION)
- CTS preparation is standard
equipment.
- CTS system is optional.

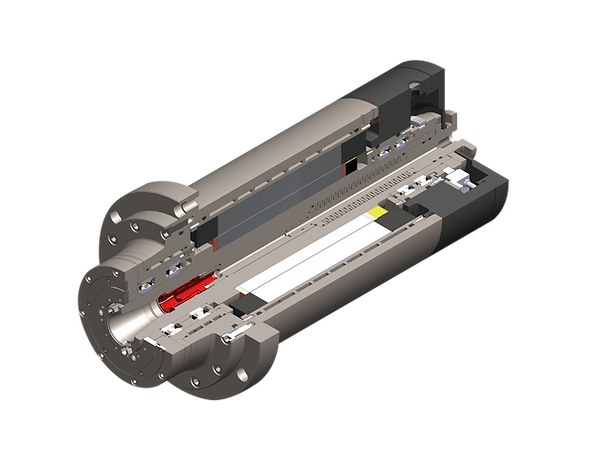

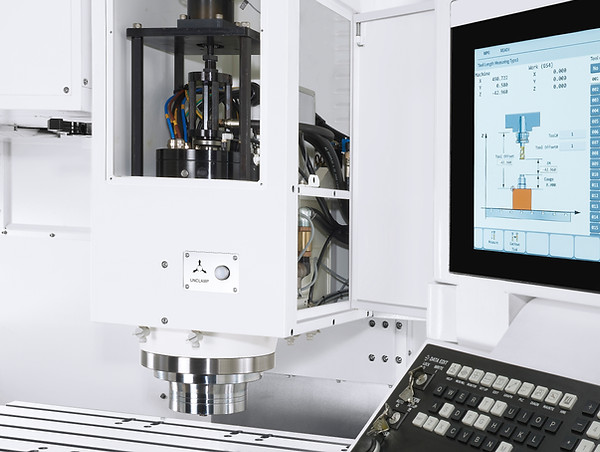

EASY TO REPLACE BEARING


All Micro Dynamics spindles are built with all shelf standard bearings which can be replaced without removing the rotor. This makes all machines simple and fast to maintain. Rebuild costs are very low due and the short service time. (Except 20,000 rpm)
