Best CNC Machines and VMCs Ranked (Top 5)
- 2 days ago
- 9 min read
Choosing the right CNC machine depends on what matters most to your shop: heavy cutting, large workpieces, floor space, automation, multi-face machining, production throughput, accuracy, or installation speed.
At Micro Dynamics, we design our VMC lineup around real manufacturing needs. Some shops need the strength of a 50-taper spindle. Some need a compact machine that fits into a tight floor plan. Others need pallet automation, trunnion flexibility, or the ability to handle large parts without sacrificing precision.
Across the full Micro Dynamics machine lineup, two advantages apply to every model in this ranking: compact machine design and DYPEC thermal compensation.
Even our larger machines are engineered for efficient shipping, easier installation, and faster startup. Our machine platforms are designed to reduce on-site assembly, simplify commissioning, and help manufacturers move from delivery to production faster. In some cases, installation can be completed in as little as 3 hours or less, helping reduce downtime and floor disruption.
Every machine in this ranking also benefits from DYPEC Thermal Compensation. DYPEC stands for Dynamic Predictive Error Compensation, our real-time thermal compensation system that monitors machine temperature behavior and applies compensation to reduce thermal positioning error. It is designed to help maintain accuracy and surface finish without long warm-up routines, with compensation resolution down to 0.1 μm. This is especially important on high-performance machines, long-cycle jobs, and heavy-duty platforms such as our 50-taper models.
This guide ranks five of our strongest CNC machines and vertical machining centers based on spindle class, work envelope, automation, machining flexibility, tool capacity, table load, accuracy, repeatability, footprint efficiency, thermal stability, and installation practicality.
Our top five Micro Dynamics CNC machines are:
TERA 60V/50 — Best overall heavy-duty VMC
TERA 50VT/50 — Best for complex multi-face machining
TERA 60V — Best large-format 40-taper VMC
MEGA 20VAPC — Best for production throughput
MEGA 40V — Best compact all-rounder
How We Ranked the Best Micro Dynamics VMCs
We ranked these machines by looking at the factors that matter most in real machining environments.
Axis accuracy is strong across the lineup, with positioning accuracy of 0.005 mm over full stroke and repeatability of ±0.0025 mm on the ranked models. Because of that, the ranking is not only about accuracy. The bigger differences come from spindle platform, work envelope, tool capacity, automation, table load, and the type of machining each machine is built to support.
We also considered two platform-wide advantages that matter in every shop: installation efficiency and thermal stability. Our machines are designed to be compact and easier to ship, install, and commission, even when the machine itself is large and heavy-duty. We also include DYPEC thermal compensation across the platform to help maintain accuracy as the machine heats, cools, and runs through long machining cycles.
The main ranking factors are:
Work envelope and table load
40-taper versus 50-taper spindle capability
Heavy cutting performance
Automation and pallet-changing capability
Trunnion and multi-face machining flexibility
Tool magazine capacity
Compact footprint and installation efficiency
DYPEC thermal compensation and long-cycle accuracy
Best-fit applications for real shops

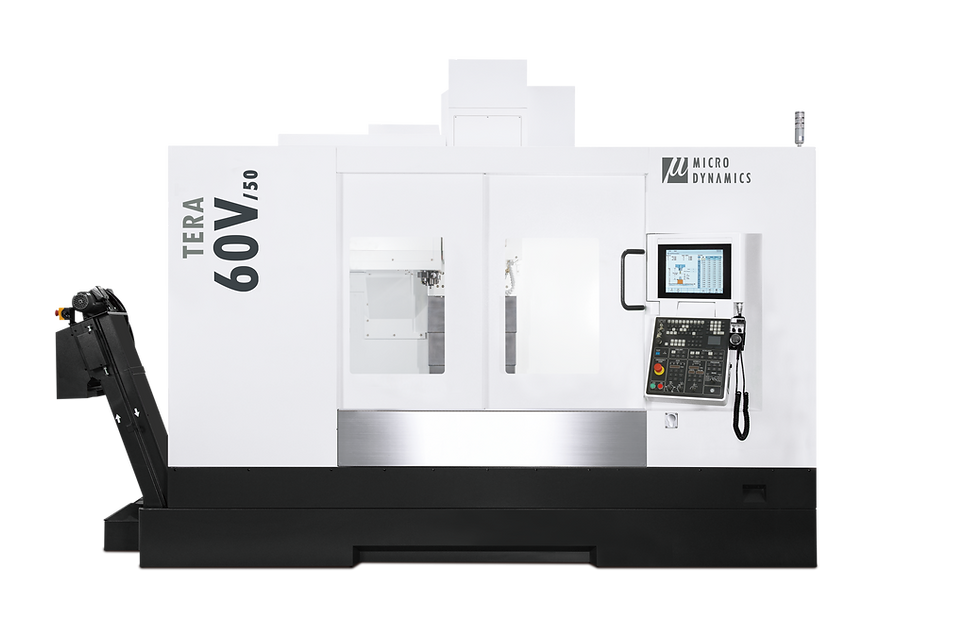

1. TERA 60V/50 - Best Overall Micro Dynamics VMC
The TERA 60V/50 takes the top position because it delivers the strongest overall combination of size, spindle power, torque, table load, heavy-duty machining capability, and thermal stability.
This is our best choice when a shop needs a large-format vertical machining center with serious cutting strength. The TERA 60V/50 uses a 50-taper spindle with 34 kW power, 12,000 rpm, and 570 Nm torque. That gives it the strength needed for large cutters, heavy roughing, deep drilling, hard materials, and demanding parts.
It also provides a large work envelope with 1,524 / 710 / 635 mm travel and a 1,724 × 700 mm table rated for 2,000 kg. This makes it a strong fit for large components, heavy fixtures, mold work, aerospace parts, automotive work, and general heavy machining.
A 32 tool magazine is standard on this machine.
Even with this level of capability, the TERA 60V/50 is designed with shipping and installation practicality in mind. We do not treat large-machine installation as an afterthought. The machine architecture is built to help reduce setup disruption and move shops from delivery to production faster.
DYPEC thermal compensation also plays an important role here. On a large 50-taper machine, accuracy is not only about rigidity and spindle torque. Thermal movement must also be controlled. DYPEC helps the TERA 60V/50 maintain precision as the machine runs through heavy cuts, long cycles, and changing shop conditions.
For shops looking for the strongest Micro Dynamics VMC overall, the TERA 60V/50 is the flagship choice.
2. TERA 50VT/50 - Best for Complex Multi-Face Parts
The TERA 50VT/50 is the best choice when the goal is complex machining in fewer setups.
This machine combines the strength of our 50-taper 570 Nm spindle with a vertical trunnion platform. It is built for shops that machine multi-face parts, complex prismatic components, and workpieces that benefit from 4+1-axis positioning or optional simultaneous five-axis control.
The TERA 50VT/50 offers 970 / 710 / 500 mm travel, a roller gear cam trunnion, 0.001° indexing, 360° C-axis travel, and 40° to -120° A-axis tilt. It supports workpieces up to 250 kg to 45° tilt and 150 kg above 45° tilt.
This machine also comes with a 32 tool magazine.
This makes it ideal for one-setup machining. Instead of moving a part through multiple operations, the TERA 50VT/50 allows shops to machine multiple faces with improved control, reduced handling, and better process consistency.
The TERA 50VT/50 also shows why compact design matters. It gives manufacturers 50-taper strength and trunnion flexibility in a machine platform designed to remain practical for shipping, installation, and commissioning.
DYPEC thermal compensation is especially valuable on a trunnion platform because complex parts often require longer cycle times, multiple tool changes, and consistent accuracy across several faces. By compensating for thermal movement in real time, DYPEC helps maintain part accuracy without relying on long warm-up routines.
For heavy-cut trunnion work, complex parts, and shops that want more flexibility than a standard three-axis machine, the TERA 50VT/50 is one of the strongest machines in our lineup.
3. TERA 60V - Best Large-Format 40-Taper VMC
The TERA 60V is the best large-format 40-taper machine in this ranking.
It shares the same large travel class as the TERA 60V/50, with 1,524 / 710 / 635 mm travel and a 2,000 kg table load, but it uses a faster standard 40-taper spindle rated at 15,000 rpm, 31 kW, and 141 Nm. With 20,000 RPM or 24,000 RPM as optional.
This makes it a strong option for shops that need a large work envelope but do not require the heavier 50-taper platform. It is especially useful for die and mold machining, aerospace parts, automotive work, semiconductor-related machining, and general high-performance milling.
The TERA 60V also comes with a 40-tool magazine, giving users strong tool capacity for complex jobs and mixed production work. Tool magazine options include 60 or 90 tools.
Like the rest of our lineup, the TERA 60V is designed to make delivery, installation, and startup easier. Large capacity does not have to mean unnecessary installation complexity. We build our machines to help shops get into production faster.
DYPEC thermal compensation supports the TERA 60V during long machining cycles and high-speed cutting. As machine temperature changes, DYPEC helps compensate for thermal position error so the machine can continue producing accurate parts throughout the day.
For manufacturers that want large-part machining capacity with the speed and flexibility of a 40-taper spindle, the TERA 60V is the best fit.
4. MEGA 20VAPC - Best for Production Throughput
The MEGA 20VAPC is built for productivity.
This machine uses a dual-pallet automatic pallet changer that allows one pallet to be machined while the other is loaded, unloaded, or prepared offline. That reduces idle time and helps increase spindle utilization.
The MEGA 20VAPC features 600 / 510 / 510 mm travel, dual 560 × 400 mm pallets, 200 kg capacity per pallet, and an 8.5-second pallet exchange. It also uses our standard 15,000 rpm 40-taper spindle with 31 kW power and 141 Nm torque. 20,000 RPM and 24,000 RPM options available. This machine comes standard with a 40 tool magazine, with options extending it to 60 or 90 tools.
One of its most important advantages is pallet repeatability. The MEGA 20VAPC achieves 0.004 mm pallet repeatability through pressurized cones, helping maintain consistency across recurring setups.
The MEGA 20VAPC is also compact by design. For production shops, this matters because pallet automation often needs to fit into an existing floor plan without creating unnecessary installation challenges. We designed the platform to deliver automation and throughput while staying practical to ship, install, and operate.
DYPEC thermal compensation adds another layer of production stability. In repeated production, accuracy must hold over time, not only on the first part. DYPEC helps control thermal drift during long runs so the machine can maintain consistency across batches.
This machine is ideal for production shops, recurring part families, short-to-medium production cycles, and manufacturers that want to keep the spindle cutting while setup happens outside the machining area.
For throughput-focused machining, the MEGA 20VAPC is the strongest choice.
5. MEGA 40V - Best Compact All-Rounder
The MEGA 40V earns its position because it offers a strong balance of capacity, footprint efficiency, spindle performance, and everyday usability.
It provides 1,020 / 510 / 510 mm travel, a 1,120 × 500 mm table, 1,000 kg table load, and a compact footprint of 3,044 × 2,293 mm. That makes it a practical option for shops that need serious machining capability without moving into a larger floor-space category.
The MEGA 40V uses a 15,000 rpm 40-taper spindle with 31 kW power and 141 Nm torque, along with a 40-tool magazine and 1.2-second tool-to-tool ATC. Optional 20,000 RPM and 24,000 RPM.
This machine comes standard with a 40 tool magazine, with optional extensions of 60 and 90 tools.
This is the clearest compact all-rounder in the ranking. It is designed for shops that want strong machining capability, easy floor planning, practical installation, and daily reliability from one machine.
DYPEC thermal compensation helps the MEGA 40V maintain accuracy through changing temperatures, longer jobs, and repeated machining cycles. For compact general-purpose machining, this gives shops more confidence that the machine can hold precision without constant manual offset adjustments.
This is the best compact all-rounder for job shops, smaller workshops, owner-operated machining businesses, die and mold work, aerospace parts, and general machining.
For shops that want a powerful VMC in a compact package, the MEGA 40V is one of the easiest machines to justify.
Micro Dynamics VMC Comparison
Rank | Model | Best For | Key Advantage |
1 | TERA 60V/50 | Heavy-duty machining | 50-taper, 570 Nm torque, 2,000 kg table load, DYPEC thermal compensation |
2 | TERA 50VT/50 | Complex multi-face parts | 50-taper trunnion platform with 4+1-axis capability and DYPEC stability |
3 | TERA 60V | Large 40-taper machining | Big travel, 2,000 kg table load, compact installation-focused design |
4 | MEGA 20VAPC | Production throughput | Dual pallets, 8.5-second pallet change, 0.004 mm pallet repeatability |
5 | MEGA 40V | Compact general machining | Strong capacity in a smaller footprint with DYPEC accuracy support |
Platform Advantages Across Every Ranked Machine
Compact Design for Easier Shipping and Installation
Every Micro Dynamics machine is designed with practical installation in mind. Even on our larger platforms, we focus on machine architecture that helps simplify shipping, reduce on-site assembly, and shorten the path from delivery to production.
This matters because installation time affects real ROI. A machine that takes too long to move, level, commission, and prepare delays production before the first part is cut.
Our goal is to make machine ownership easier from the start: compact where possible, efficient to transport, practical to install, and ready for production faster.
DYPEC Thermal Compensation for Real-Time Accuracy
DYPEC Thermal Compensation is one of the most important technologies across the Micro Dynamics lineup.
As a CNC machine runs, heat builds in the spindle, casting, ballscrews, guideways, motors, and surrounding environment. That heat can create small dimensional changes that affect the real tool position. Over long cycles, high-speed finishing, heavy cutting, or changing shop temperatures, those small changes can become visible in the part.
DYPEC monitors thermal behavior and applies compensation in real time. Instead of relying only on warm-up cycles or manual offset correction, the machine actively compensates for thermal movement while it runs.
This helps every machine in the ranking maintain accuracy, including our larger 50-taper platforms where heavy cutting and thermal behavior must both be controlled.
Which Micro Dynamics CNC Machine Should You Choose?
Choose the TERA 60V/50 if you need the strongest overall VMC for heavy-duty cutting, large tools, large parts, high table load, and 50-taper accuracy supported by DYPEC.
Choose the TERA 50VT/50 if your work involves complex multi-face machining, trunnion positioning, heavy-cut flexibility, reduced setups, and long-cycle accuracy.
Choose the TERA 60V if you need a large work envelope with the speed and flexibility of a 40-taper spindle, plus easier installation than many large-capacity machines.
Choose the MEGA 20VAPC if production throughput, offline loading, pallet repeatability, spindle utilization, and batch consistency are your main priorities.
Choose the MEGA 40V if you want a compact but capable VMC for general machining, job shop work, and high-performance milling in a smaller footprint.
Final Verdict
The best Micro Dynamics CNC machine depends on what your shop needs most.
For maximum heavy-duty capability, we recommend the TERA 60V/50.
For complex multi-face machining, the TERA 50VT/50 is the strongest choice.
For large 40-taper machining, the TERA 60V offers the best balance.
For production throughput, the MEGA 20VAPC is the clear choice.
For compact all-around machining, the MEGA 40V delivers excellent capability in a smaller footprint.
Across all five machines, two things remain consistent: we design our machines to be practical to ship and install, and we include DYPEC thermal compensation to support real accuracy during real production.
Every machine in this ranking is built around the same goal: giving manufacturers a practical, accurate, powerful, and efficient machining platform that can move from installation to production faster and hold precision once it gets there.
