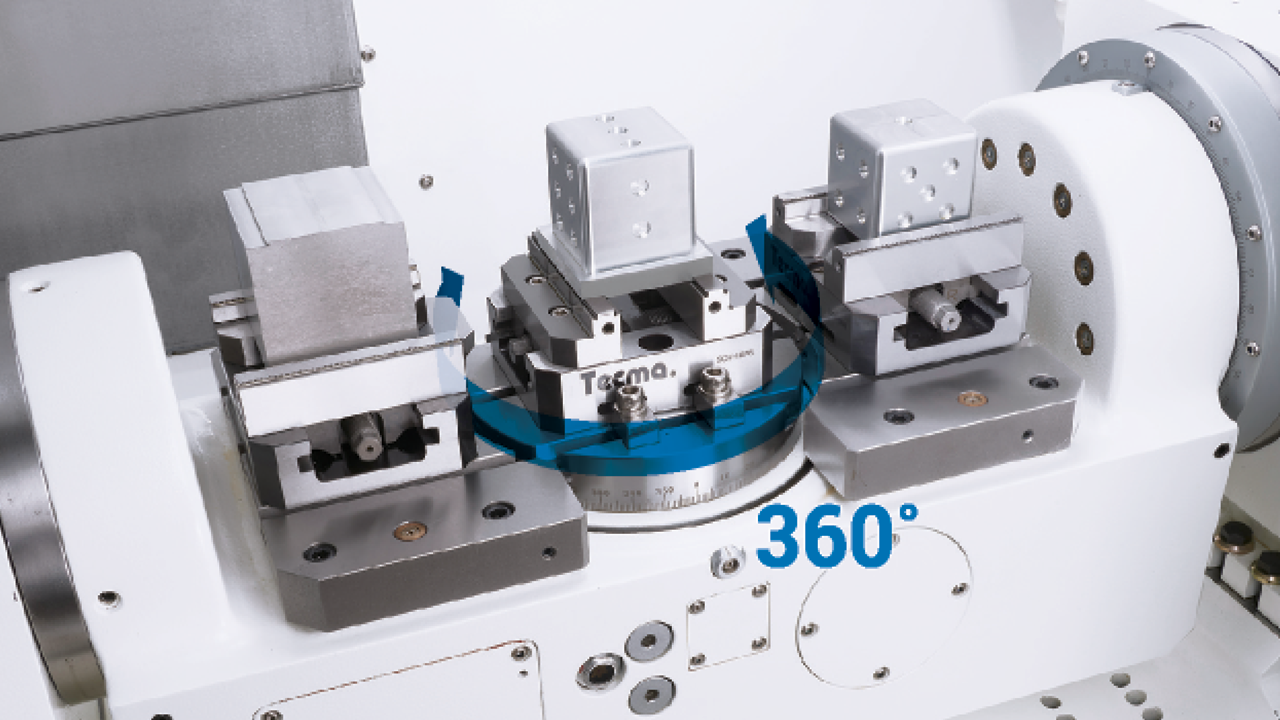

Rotary Axis Motion
Full rotary axis motion range for multi-face access without re-fixturing.

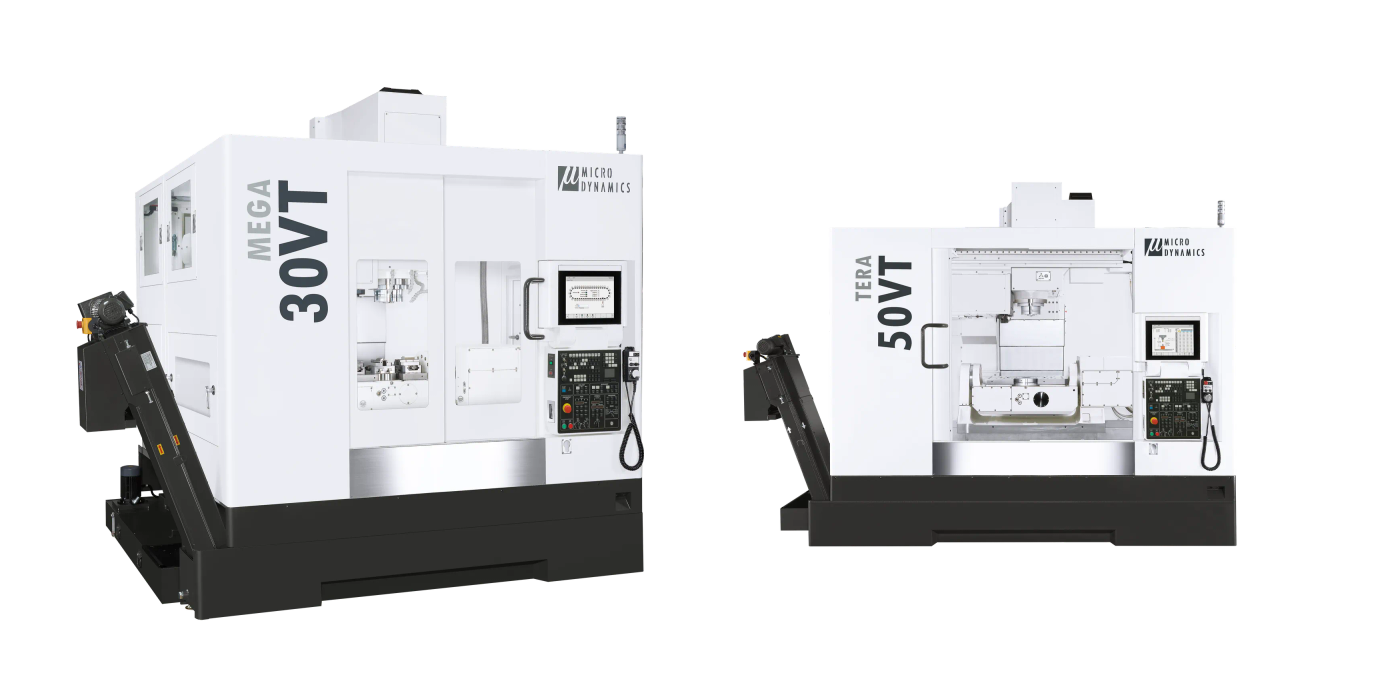

The MEGA 30VT and TERA 50VT are Micro Dynamics five-axis trunnion (4+1) table machines with hydraulic brakes. Load three vises or use the work table with an integrated face plate. A true five-axis simultaneous version is available as an option.
The design allows three vises or a single work table with face plate - 500 x 300 mm table with 220 mm mm face plate on MEGA 30VT, and 720 x 400 mm table with 320 mm mm face plate on TERA 50VT.

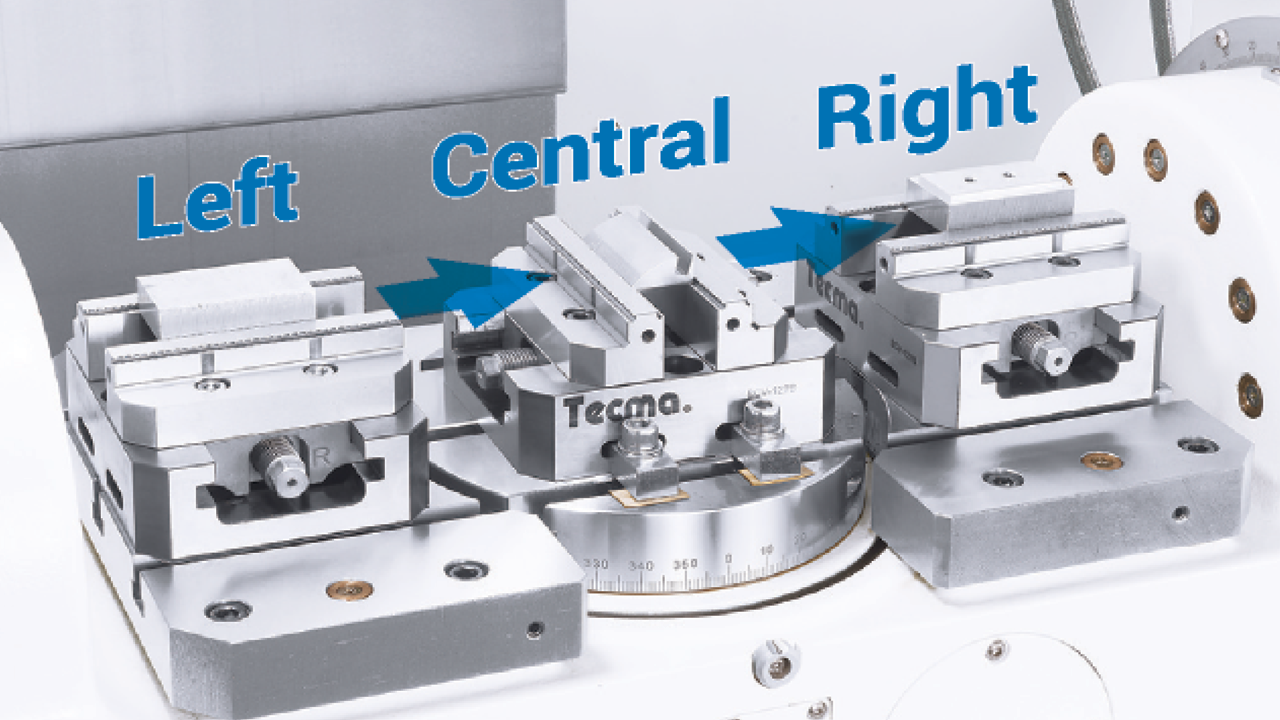

Machine six sides in one load with a three-vise setup.
Full rotary axis motion range for multi-face access without re-fixturing.

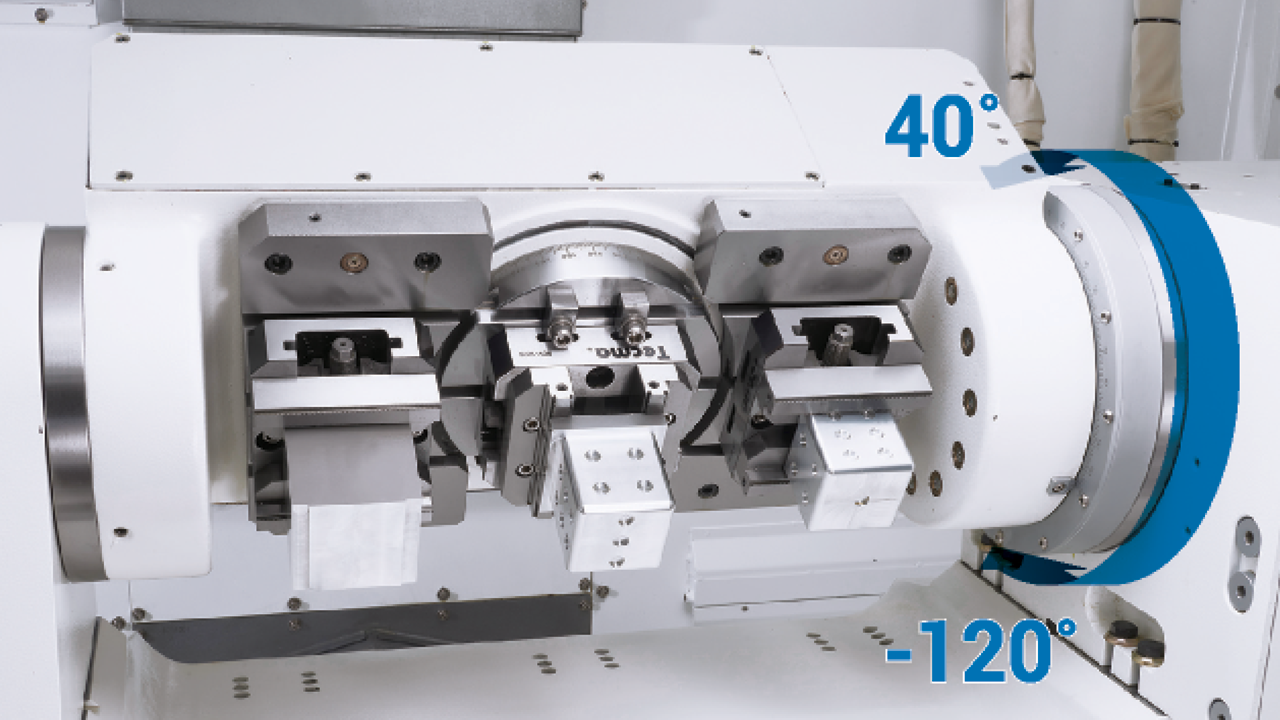

Tilting axis range supports complex angles - illustrated up to +40° / −120°.

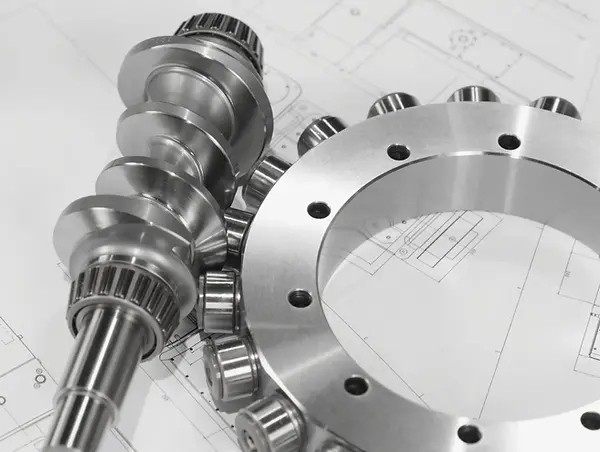

High-quality Japanese-made components for enhanced rigidity, repeatability, and zero-backlash performance.
Standard and field-interchangeable optional face plates.
| Model | Standard | Optional (field interchangeable) | |
|---|---|---|---|
| MEGA 30VT |

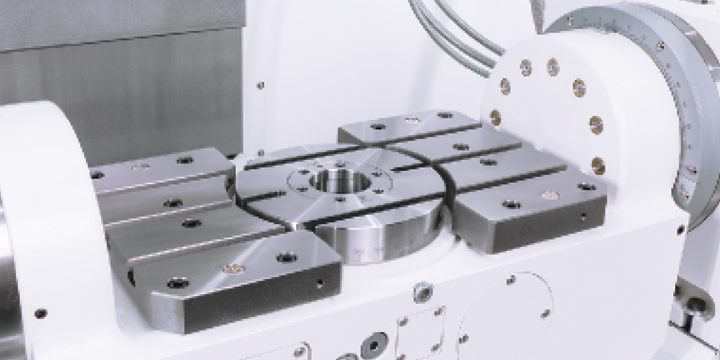

Ø220 mm
|

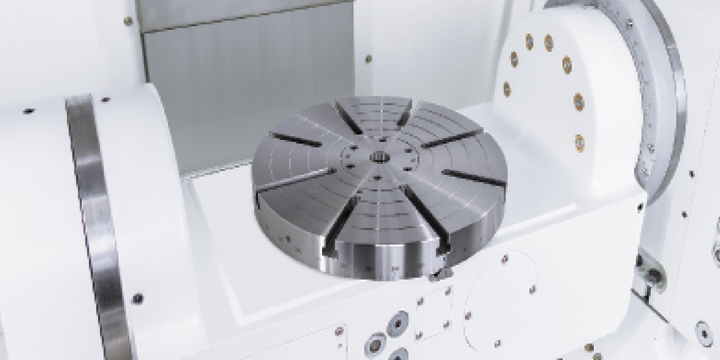

Ø300 mm
|

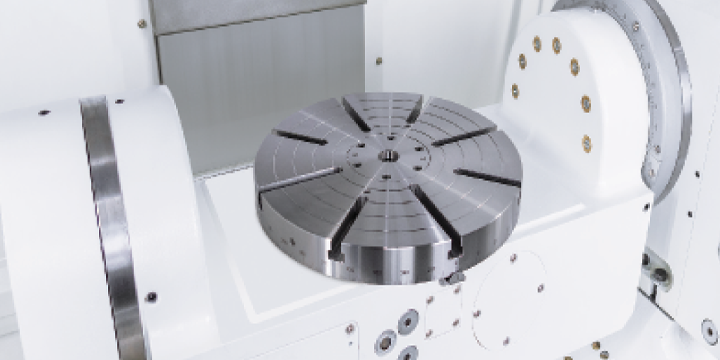

Ø350 mm
|
| TERA 50VT |

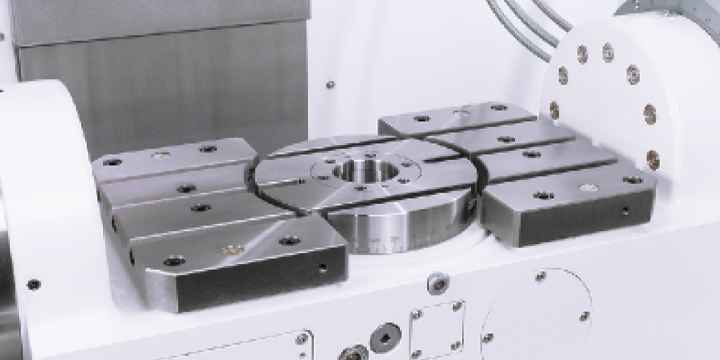

Ø320 mm
|

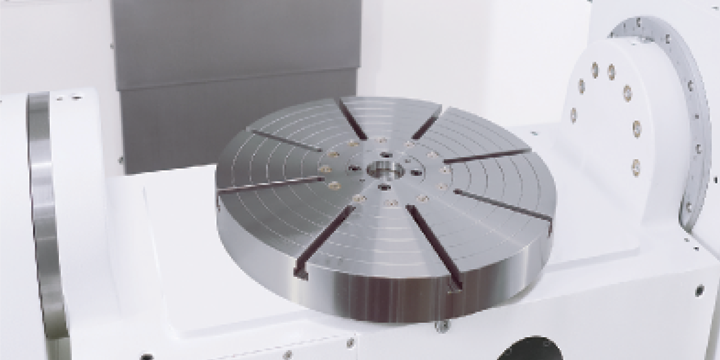

Ø500 mm
|

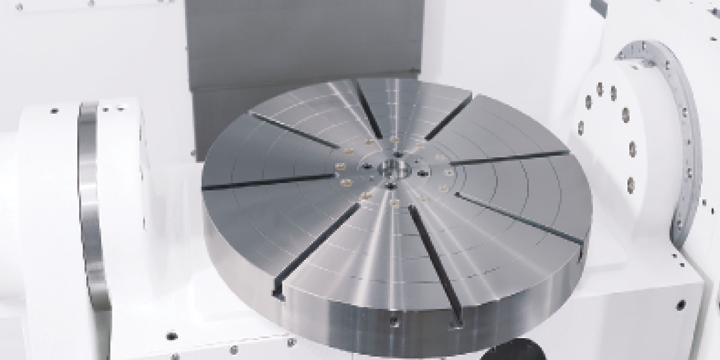

Ø630 mm
|
